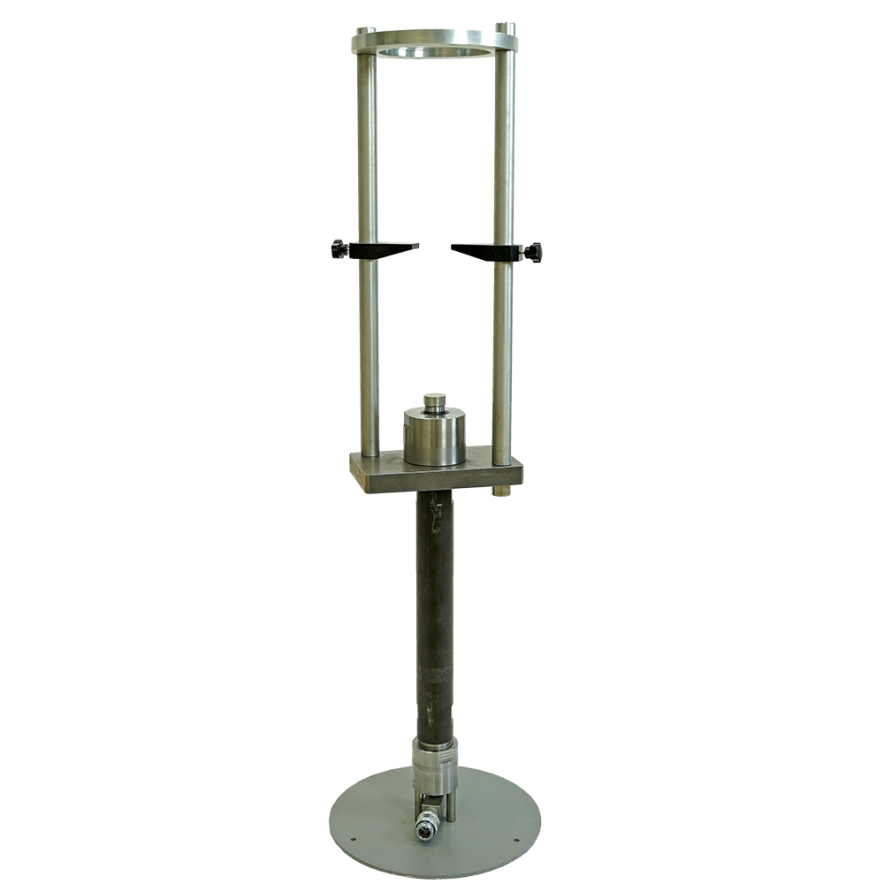

Hand-operated Vertical Soil Sample Extruder

The Hand-operated Vertical Soil Sample Extruder is used to eject undisturbed and/or compacted soil specimens from sampling tubes and moulds.

The hand operated vertical extruder ejects undisturbed and/or compacted soil specimens from sampling tubes and molds. It is used in sample preparation for a variety of soil tests including:

  • Triaxial
  • Permeability
  • Direct shear
  • Consolidation
  • Unconfined compression
  • CBR
  • Proctor and Marshall

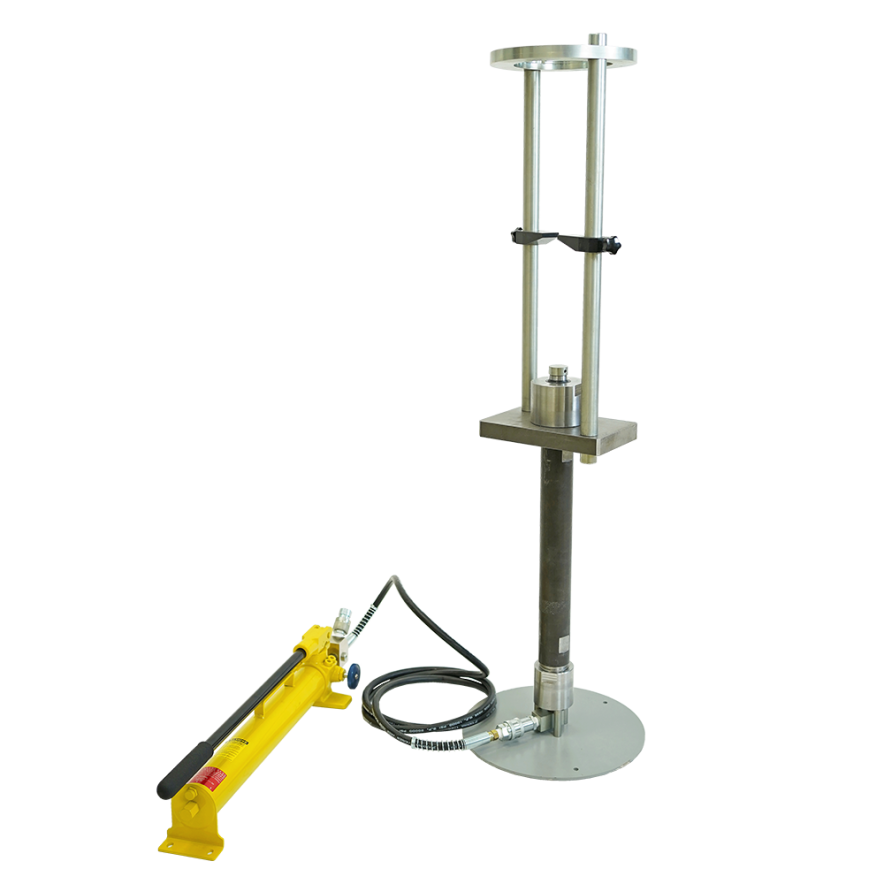

The extruder comes with a series of additional tools, such as a manual hydraulic pump, that can be set up to provide a comfortable working position during the extruding procedure. The 70 kN capacity extruder applies smooth piston strokes to samples making sure that even the most stubborn of them can be easily handled and quickly ejected.

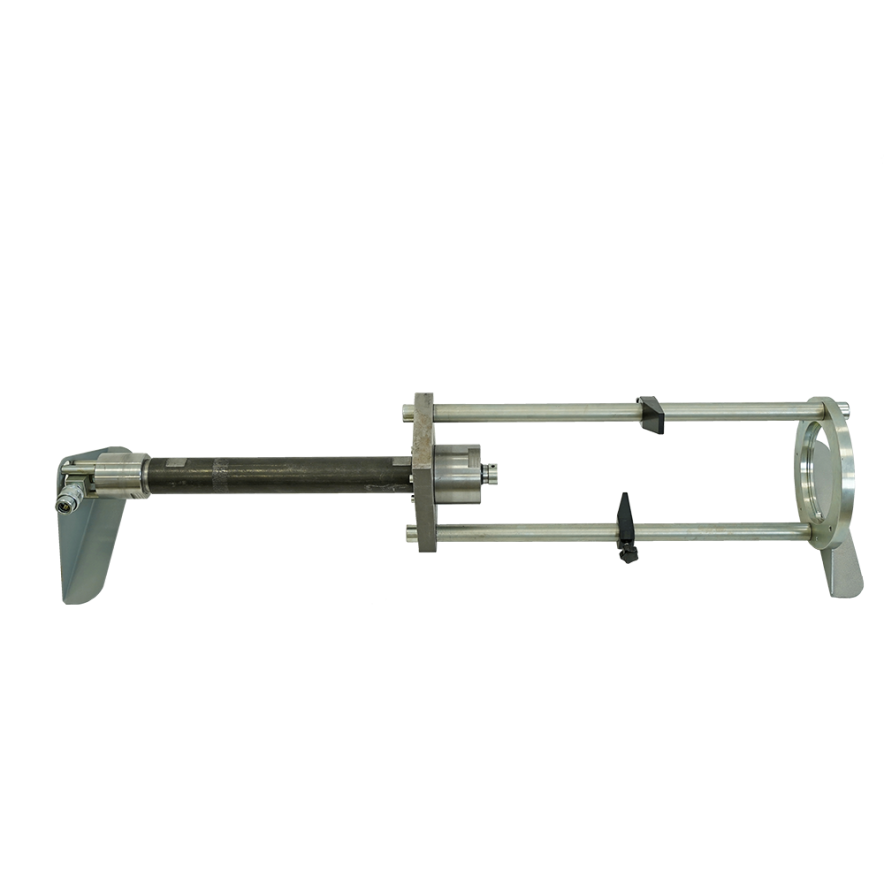

Additional optional accessories are available to convert your extruder to a horizontal set-up.

Please note that adaptors must be ordered separately. If you don’t find the adapter kit suitable for your moulds/sampling tubes, you can request to have them custom-made to the correct size.


AASHTO T134 | AASHTO T180 | AASHTO T193 | AASHTO T245 | ASTM D1557 | ASTM D1559 | ASTM D1883 | ASTM D698 | BS | 1377:4 | BS 1924:2 | BS 598:107 | EN 12697-30 | EN 13286-2 | EN 13286-47

Spécifications techniques

Maximum extrusion force: 70 kN

Travel Ram: 550 mm

Extrusion position: Vertical (plus horizontal with specific accessories)

Min. Diameter: 35 mm

Max. Diameter: 152.4 mm (6”)

Weight: 50 kg


  • Extruder only: 350 x 350 x 1,275 mm
  • Manual Pump: 150 x 575 x 150 mm

Numéros de commande

16-T0082/H: Manual vertical extruder:

  • Max travel: 550 mm
  • Max load: 70 kN
  • Adapters to be ordered separately Kit for horizontal extruding position to be ordered separately


Adapter for Shelby Tubes

16-T008X/1: Adaptor Set for 2" (50,8mm) Outer Dia Shelby Tubes

16-T008X/2: Adaptor Set for 2.5" (63.5mm) Outer Dia Shelby Tubes

16-T008X/3: Adaptor Set for 3" (75mm) Outer Dia Shelby Tubes

16-T008X/4: Adaptor Set for 3 1/4" (83mm) Outer Dia Shelby Tubes

16-T008X/5: Adaptor Set for 3" 1/2" (88.9mm) Outer Dia Shelby Tubes

16-T008X/6: Adaptor Set for 4" (101.6mm) Outer Dia Shelby Tubes

Adapter for Mould

16-T008X/7: Adapter set for 150 mm & 152.4 mm (6")inner dia mould

16-T008X/8: Adapter set for  100 mm & 101.6 mm (4") inner dia mould

16-T008X/9: Adapter set for  70 mm inner dia mold

16-T008X/10: Adapter set for  50 mm inner dia mold

16-T008X/11: Adapter set for  38 mm inner dia mold

16-T008X/12: Adapter set for  35 mm inner dia mold

Accessory for horizontal use

16-T0082/H1: Kit for using manaual extruder model 16-T0082/H in horizonal position
