Liquid limit devices (Casagrande)

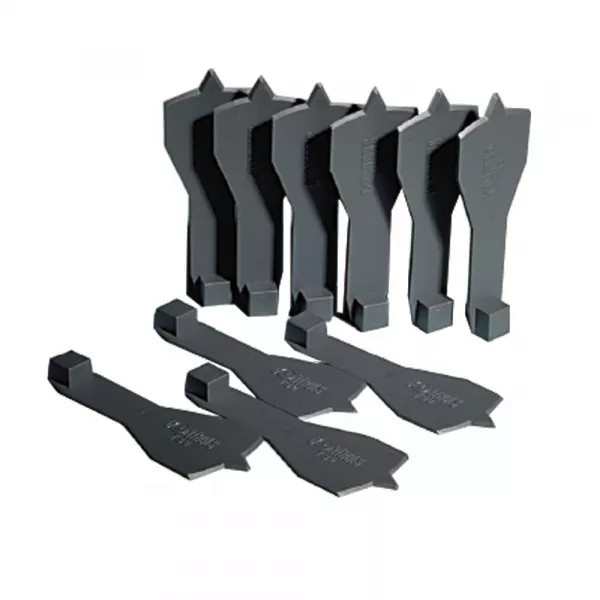

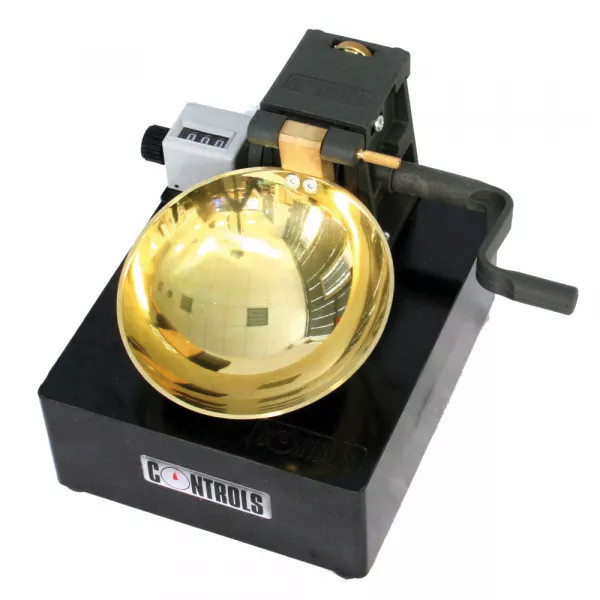

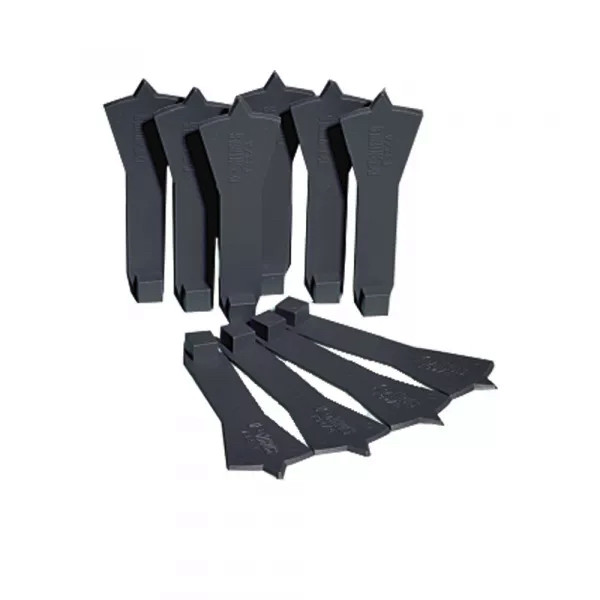

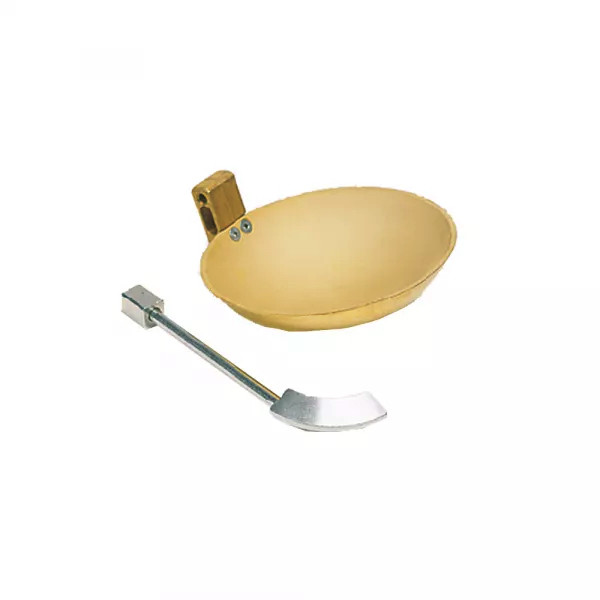

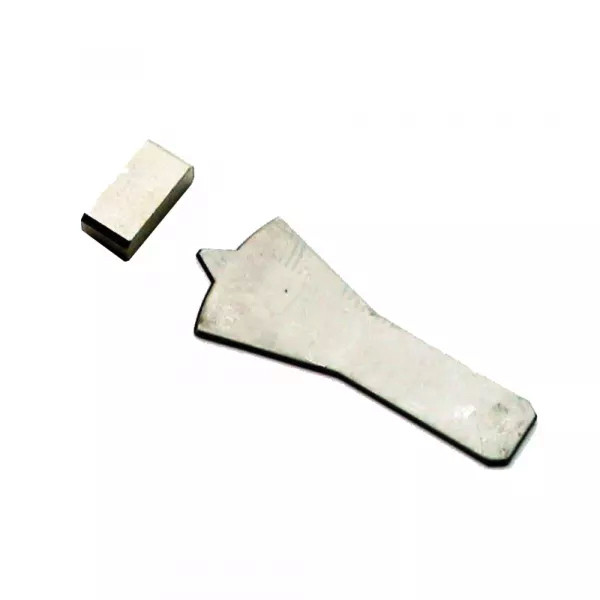

Used to determine the moisture content at which clay soils pass from a plastic to a liquid state. Comprises: removable brass cup, adjustable crank and cam mechanism, blow counter, and base. Different versions are available conforming to the various Standards in use. They are identical in shape and differ, generally, from the type of base and weight of the cup. Furthermore all versions are available either manually or motor operated. The grooving tools, which also refer to the different Standards, are not included and have to ordered separately.



  • Weights approx.:
  • Standard versions 2 kg
  • Motorized versions 4 kg

Label/normes

BS 1377:2 | ASTM D4318 | NF P94-051 | UNE 7002 | UNE 7377

Spécifications techniques

Numéros de commande

  • 22-T0030/E
    Liquid limit device, BS 1377:2 version
  • 22-T0030/F
    Liquid limit device, ASTM D4318, AASHTO T89, CEN ISO TS 17892-12, UNE 7377, UNI 10014, version
  • 22-T0030/G
    Liquid limit device, NF P95-051 version
  • 22-T0031/E

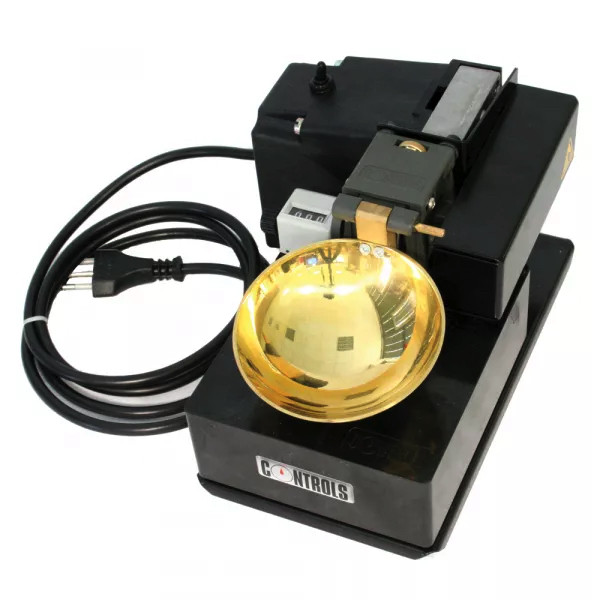

    Motorized liquid limit device, BS 1377:2 version. 230 V, 50 Hz, 1 ph
  • 22-T0031/F
    Motorized Liquid limit device, ASTM D4318, AASHTO T89, CEN ISO TS 17892-12, UNE 7377, UNI 10014, version. 230 V, 50 Hz, 1 ph
  • 22-T0031/G
    Motorized liquid limit device, NF P95-051 version. 230 V, 50 Hz, 1 ph
