GYROCOMP EmS Electromechanical Gyratory Compactor

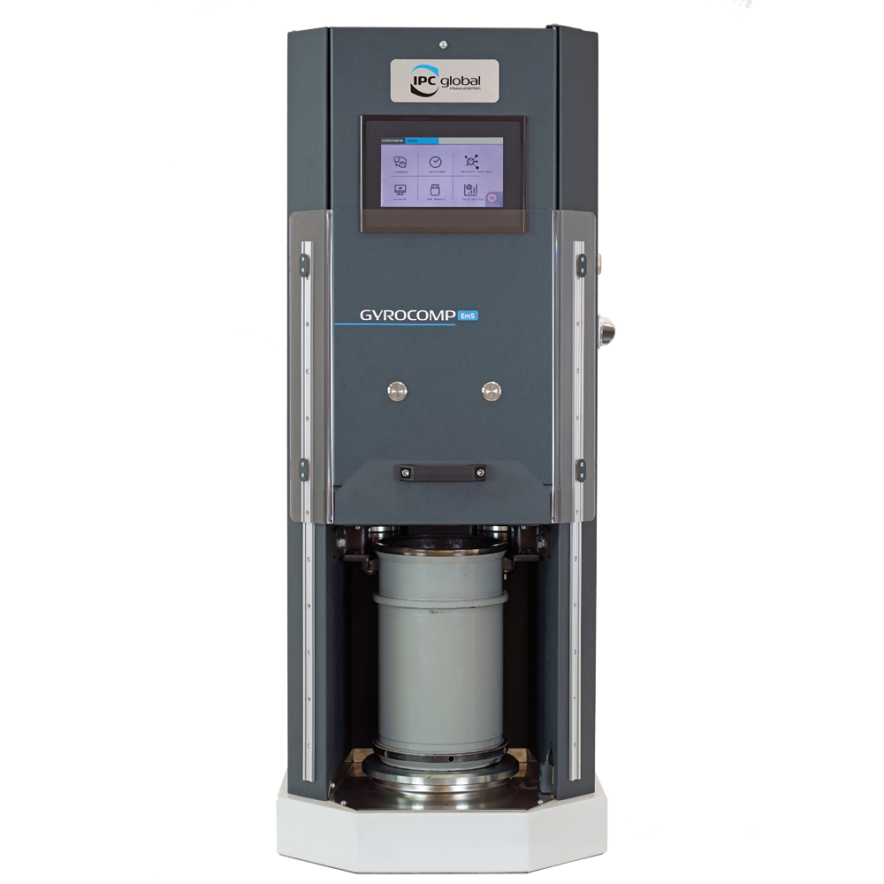

The new electromechanical GYROCOMP EmS is a fully stand-alone machine that only requires single-phase power supply and no external air compressor reducing the amount of maintenance and makes it easier to install.

Gyratory Compactors enable engineers to reproduce real world compaction conditions during road paving operations, allowing them to ascertain the compaction qualities of an asphalt mixture.

Advanced with new electromechanical technology

Light and portable GYROCOMP EmS is the ideal solution for Quality Control (QC) that can even be easily installed in mobile laboratories.

The new electromechanical actuator makes it a 100% stand-alone machine, as it only requires single-phase power supply and no external air compressor which reduces the amount of maintenance and makes it easier to install.

  • Fully standalone, 100% electromechanical

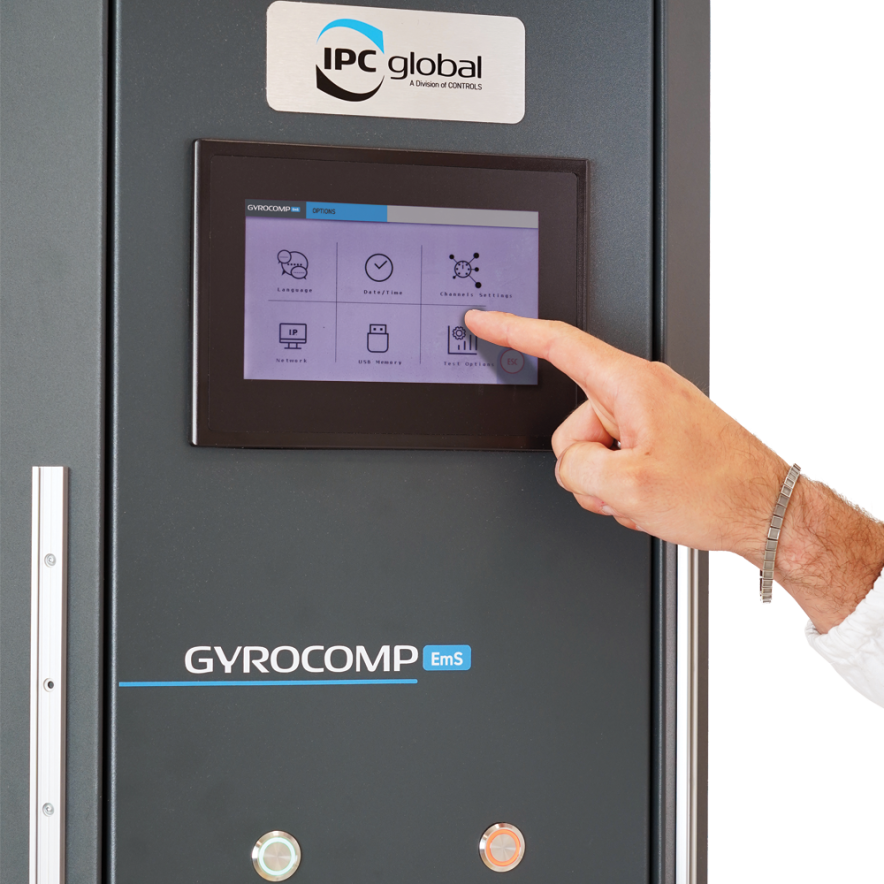

  • 7” touchscreen panel color display, with possibility to modify, save and recall a large range of testing procedure for fast test performance
  • High productivity, designed for continuous and heavy use
  • High rigidity thus lightweight due to the propriety orbital system
  • Compact and lightweight, also ideal for mobile laboratories
  • Very reliable and accurate
  • Certified to EN and AASHTO
  • Approved as Superpave™ Gyratory Compactor in U.S.A.

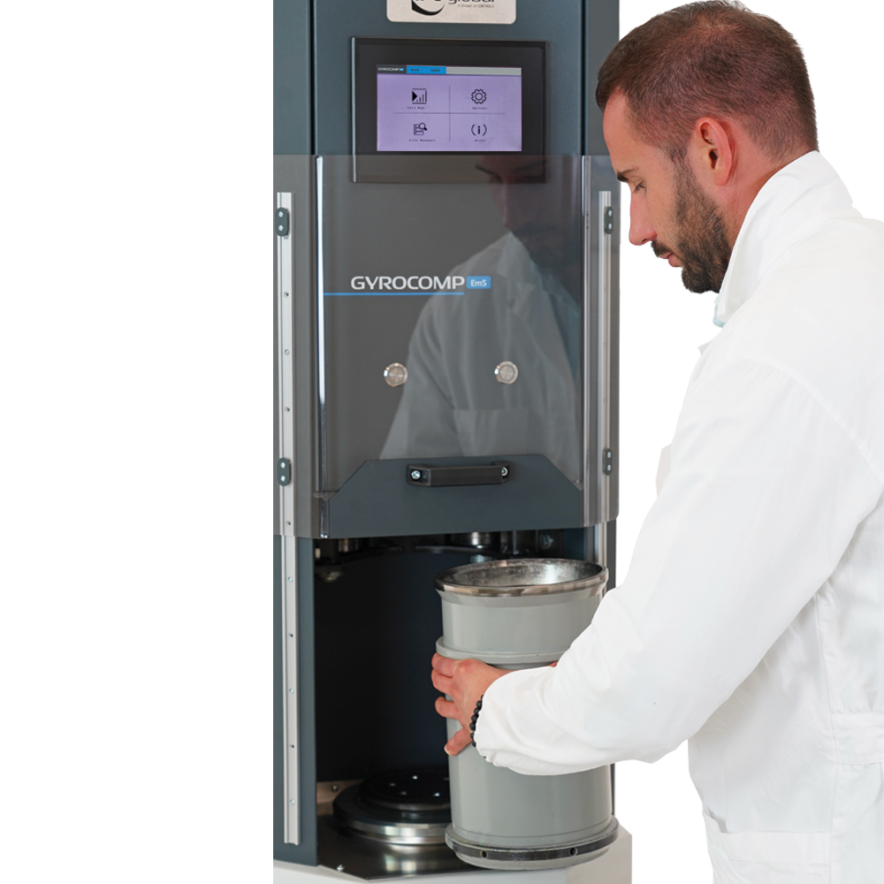

  • Sliding transparent door
  • Full safety and ergonomic design
  • Integrated electromechanical extruder option
  • Large range of accessories available
  • 2 years full warranty

Label/normes

AASHTO T312/TP4 | ASTM D6925 | EN 12697-10 | EN 12697-31 | SHRP M002

Spécifications techniques

  • Compacted specimen size: 150 and 100 mm dia.
  • Sample height: 80 to 200 mm (150 mm), 50 to 125 mm (100 mm)
  • Consolidation pressure: 80 to 900 kPa (150 mm); 160 to 1500 kPa (100 mm)
  • Internal angle of gyration: Adjustable from 0.70 to 1.40°.
    Preset to 1.16° internal angle (standard models)
    Preset to 0.82° internal angle (with 78-PV20UP4 optional calibration)
  • Speed of gyration: adjustable from 20 to 60 rpm
  • Number of gyrations: adjustable up to 9999
  • Test programmable either by number of gyrations or specimen height
  • Communication with PC: Ethernet for PC connection, USB for data storage on USB stick
  • Power rating: 1700 W
  • Dimensions (including extruder bench, W x D x H): 502 x 753 x 1940 mm
  • Dimensions (W x D x H): 469 x 615 x 1130 mm
  • Weight approx.: 100 kg (without extruder) 150 kg (with extruder)

Numéros de commande

78-PV2532: GYROCOMP EmS gyratory compactor, internal angle of gyration pre-set to 1.16 to AASHTO T312 and ASTM D6925. 230V/50-60Hz/1ph

Accessoires

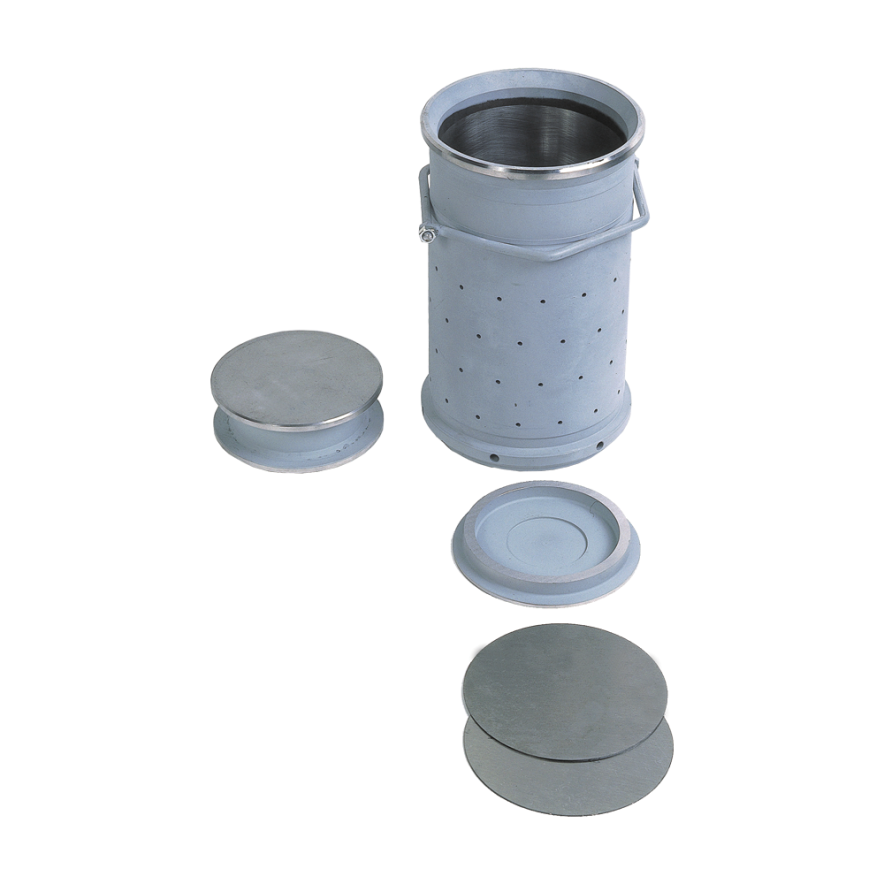

Cylinder molds with top and bottom plates

78-PV0250/2: Hardened cylinder mould 150 mm dia complete with top and bottom plates.

78-PV0250/5: Hardened cylinder mould 100 mm dia complete with top and bottom plates.

78-PV0250/8: Hardened cylinder mould 100 mm dia. with holes for cold mix compaction. Complete with top and bottom plates

78-PV0250/10: Hardened cylinder mould 150 mm dia. with holes for cold mix compaction. Complete with top and bottom plates



Distance plates

78-PV0250/3: Distance piece 150 mm dia x 50 mm for low samples

78-PV0250/6: Distance piece 100 mm dia x 38 mm for low samples.

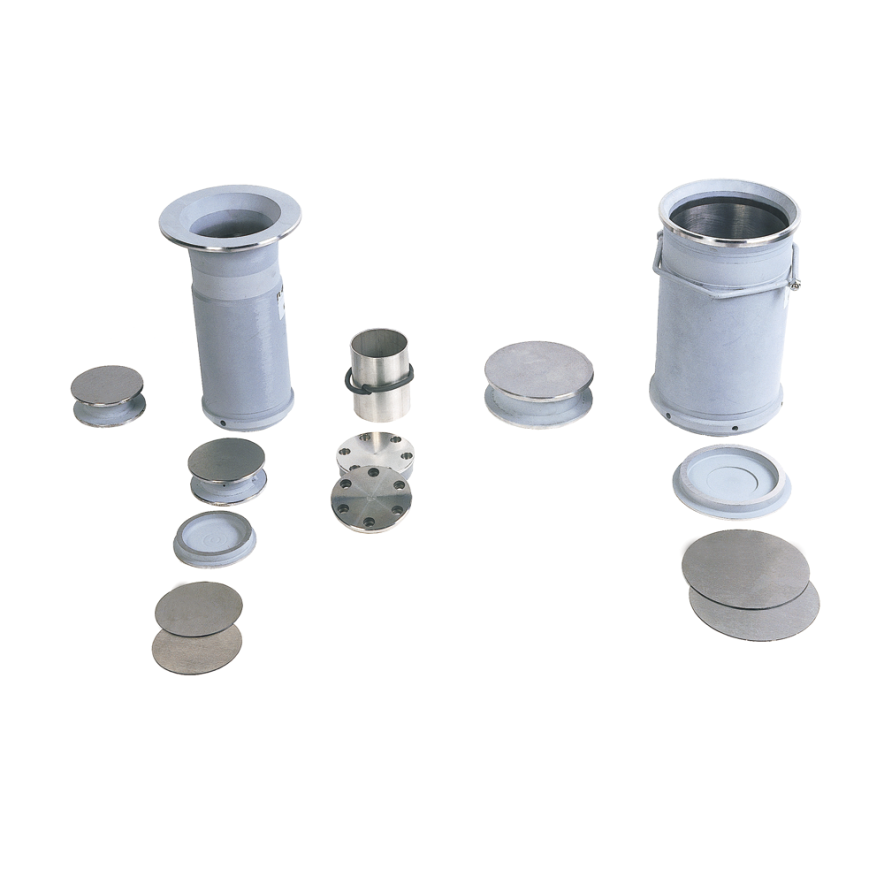

100mm Adapter Kit

78-PV0250/4: Accessories to compact dia 100 mm specimens. Mould not included.



Spare wearing discs

78-PV0250/13: Stainless steel wearing disc for 150mm dia. gyratory compactor mould

78-PV0250/14: Stainless steel wearing disc for 100mm dia. gyratory compactor mould


Paper discs

78-PV0250/16: Paper discs 150 mm diameter. (pack of 1000)

78-PV0250/17: Paper discs 100 mm diameter. (pack of 1000)



PC software

78-PV20/SOF: PC software, suitable for Galileo standard gyratory compactor


Integrated worktop with extruder

78-PV2520/15: Integrated work top for Gyrocomp / Gyrocomp EmS with motorized (electromechanic) specimen extruder. 230V/50-60Hz/1ph

78-PV2520/15Z: Integrated work top for Gyrocomp / Gyrocomp EmS with motorized (electromechanic) specimen extruder. 110V/60Hz/1ph


EN Calibration

78-PV20UP4: Traceable ACCREDIA certificate conforming to EN 12697-31 Ann. B (To be specified at time of order)



Internal angle and force calibration devices

78-PV0255/1: Calibrator blocks for ILS, set of two different angles, supplied with factory certificate

78-PV0250/11: Vertical force indicator, complete with 25kN load cell, base, spherical seat, load readout unit and calibration certificate
