big squid white

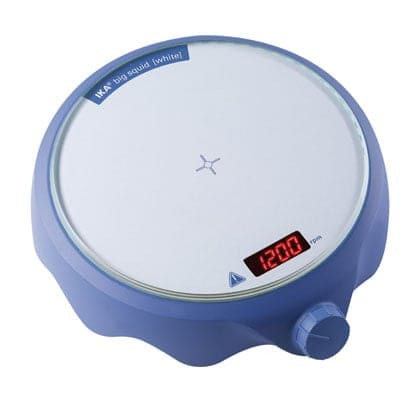

IKA - big squid white

Magnetic stirrer with glass surface.

Digital speed display (LED)
Electronically controlled motor for more capacity
Higher speed range from 0 - 2.500 rpm
Max. stirring quantity 1,5 l
Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
Recyclable materials

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3672000&iLang=1&iCountry=840&filename=DataSheet_big_squid_white.pdf https://www.ika.com/ika/pdf/flyer-catalog/20220614_lifescience_brochure_210x280_IWS_EN_screen.pdf

Technische specificaties

Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 1.5 l
Maximum load: 3 kg
Motor rating output: 2 W
Direction of rotation: right
Speed display set-value: LED
Speed adjustment: Turning knob
Speed range: 0 - 2500 rpm
Setting accuracy speed: 50 rpm
Stirring bar length max.: 30 mm
Set-up plate material: glass
Set-up plate dimensions: Ø 160 mm
Dimensions (W x H x D): 185 x 45 x 205 mm
Weight: 0.889 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 54
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 4 W
DC Voltage: 12 V=
Current consumption: 300 mA
