Schudden Schudders tot 15 kg  EUROSTAR 100 control

EUROSTAR 100 control

IKA - EUROSTAR 100 control

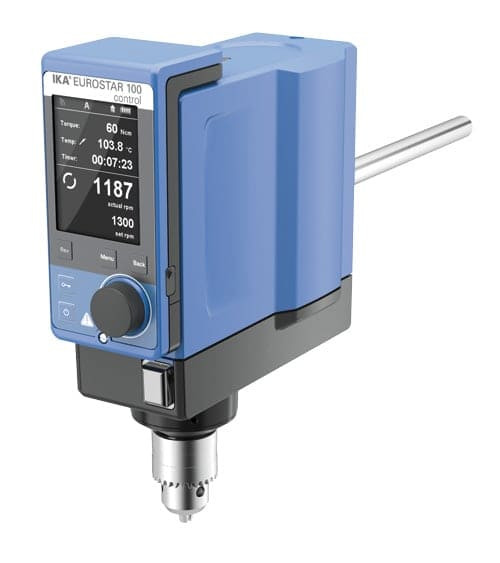

Powerful laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 1300 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

Multilingual TFT display
Programmable functions
Integrated temperature measurement
Interval operation
Reverse function
Timer function
Adjustable safety circuit
Locked function
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Quiet operation
Error code Display
H 67.60 temperature sensor and WH 11 WiCo holder included in delivery

Scope of delivery

EUROSTAR 100 control

H 67.60 Temperature sensor, stainless steel

WH11

OS 1.0 WiCo power supply unit

USB Cable - USB A to Micro-B, 2 m

USB cable micro A – micro B 2.0

Screw driver

Protective cover for WiCo contact

Chuck key

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=4028500&iLang=1&iCountry=840&filename=DataSheet_EUROSTAR_100_control.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240712_Overhead_Stirrers_brochure_IWW_EN_webspread.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240729_Flyer_Stirrers_Technical Overview_6 pages_IWS_EN_web.pdf https://www.ika.com/ika/lws/download/usb-driver.zip

Technische specificaties

Stirring quantity max. per stirring position (H2O): 100 l
Motor rating input: 174 W
Motor rating output: 142 W
Motor principle: Brushless DC
Speed display: TFT
Speed range: 0/30 - 1300 rpm
Reversible direction of rotation: yes
Intermittent operation: yes
Viscosity max.: 70000 mPas
Output max. at stirring shaft: 136 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 100 Ncm
Speed adjustment: stepless
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Connection for ext. temperature sensor: PT1000
Temperature display: yes
Chuck range diameter: 0.5 - 10 mm
Hollow shaft, inner diameter: 11 mm
Hollow shaft (push-through - when stopped): yes
Fastening on stand: extension arm
Extension arm diameter: 16 mm
Extension arm length: 220 mm
Torque display: yes
Speed control: electronic
Nominal torque: 1 Nm
Torque measurement: trend
Deviation of torque measurement I: ±6 Ncm
Timer: yes
Timer display: TFT
Time setting range: 1 - 6000 min
Temperature measuring range: -10 - +350 °C
Temperature measurement resolution: 0.1 K
Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K
Housing material: alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.: 150 m
Dimensions (W x H x D): 86 x 267 x 230 mm
Weight: 4.7 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 40
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 186 W
