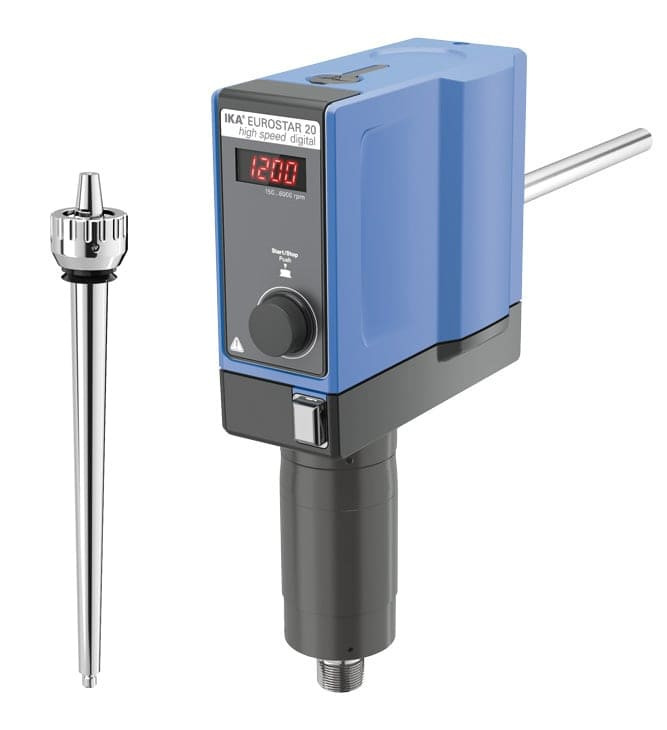

EUROSTAR 20 high speed digital

IKA - EUROSTAR 20 high speed digital

High speed laboratory stirrer designed for intensive stirring tasks for quantities up to 20 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. The included precision shaft is 280 mm long and has a maximum immersion depth of 220 mm.

Digital speed display
Infinitely adjustable speed
Cone seat for precision shaft
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Scope of delivery

EUROSTAR 20 high speed digital

R 6000 precision shaft

Open-end wrench

Hook spanner

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=4028600&iLang=1&iCountry=840&filename=DataSheet_EUROSTAR_20_high_speed_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240712_Overhead_Stirrers_brochure_IWW_EN_webspread.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240729_Flyer_Stirrers_Technical Overview_6 pages_IWS_EN_web.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 20 l
Motor rating input: 176 W
Motor rating output: 125 W
Motor principle: Brushless DC
Speed display: 7 segment LED
Speed range: 0/150 - 6000 rpm
Viscosity max.: 10000 mPas
Output max. at stirring shaft: 125 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 20 Ncm
Speed adjustment: stepless
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: special output shaft
Fastening on stand: extension arm
Extension arm diameter: 16 mm
Extension arm length: 220 mm
Speed control: electronic
Nominal torque: 0.2 Nm
Housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 86 x 325 x 208 mm
Weight: 5.3 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 176 W
