Schudden Schudders tot 15 kg  EUROSTAR 200 digital

EUROSTAR 200 digital

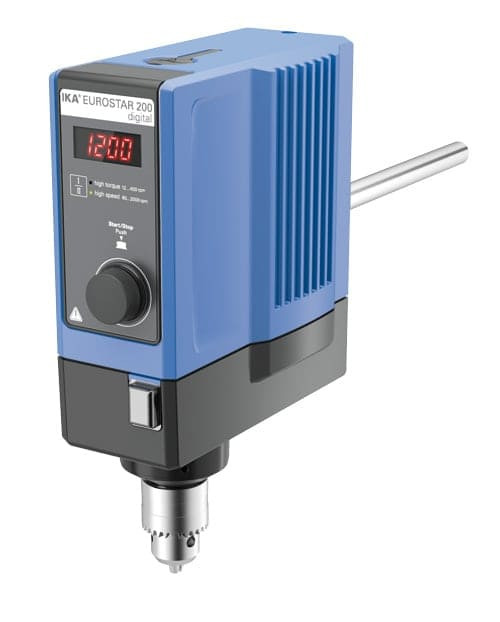

IKA - EUROSTAR 200 digital

Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 – 2000 rpm (two speed ranges). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Scope of delivery

EUROSTAR 200 digital

Chuck key

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3990000&iLang=1&iCountry=840&filename=DataSheet_EUROSTAR_200_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240712_Overhead_Stirrers_brochure_IWW_EN_webspread.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240729_Flyer_Stirrers_Technical Overview_6 pages_IWS_EN_web.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 100 l
Motor rating input: 130 W
Motor rating output: 84 W
Motor principle: Brushless DC
Speed display: 7 segment LED
Speed range: 0/6 - 2000 rpm
Viscosity max.: 100000 mPas
Output max. at stirring shaft: 84 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 200 Ncm
Torque I max.: 200 Ncm
Torque II max.: 40 Ncm
Speed range I (50 Hz): 6 - 400 rpm
Speed range II (50 Hz): 30 - 2000 rpm
Speed range I (60 Hz): 6 - 400 rpm
Speed range II (60 Hz): 30 - 2000 rpm
Speed adjustment: stepless
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Plug-in coupling (Ø): 10 mm
Chuck range diameter: 0.5 - 10 mm
Hollow shaft, inner diameter: 10.3 mm
Hollow shaft (push-through - when stopped): yes
Fastening on stand: extension arm
Extension arm diameter: 16 mm
Extension arm length: 220 mm
Speed control: electronic
Nominal torque: 2 Nm
Housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 91 x 274 x 209 mm
Weight: 4.6 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
Voltage: 100 - 115 V
Frequency: 50/60 Hz
Power input: 130 W
