Schudden Schudders tot 15 kg  EUROSTAR 400 digital

EUROSTAR 400 digital

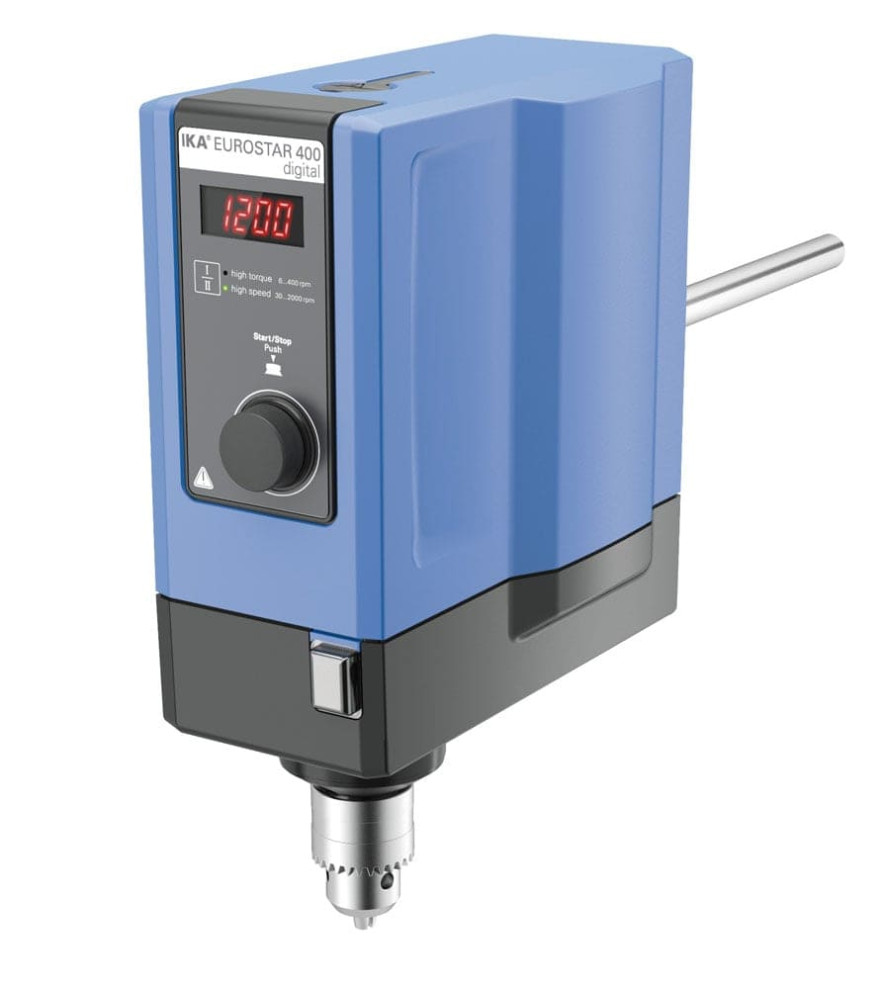

IKA - EUROSTAR 400 digital

Powerful laboratory stirrer for high viscous applications and intensive mixing for quantities up to 150 l (H2O). It automatically adjusts the speed within the range of 0/6 – 2000 rpm (two speed ranges) through microprocessor controlled technology. Integrated safety circuits ensure automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft to desired speed is performed and variations are adjusted automatically. This ensures constant speed even with changes in viscosities of the sample.

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Scope of delivery

EUROSTAR 400 digital

Chuck key

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=4214000&iLang=1&iCountry=840&filename=DataSheet_EUROSTAR_400_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240729_Flyer_Stirrers_Technical Overview_6 pages_IWS_EN_web.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 150 l
Motor rating input: 220 W
Motor rating output: 176 W
Motor principle: Brushless DC
Speed display: 7 segment LED
Speed range: 0/6 - 2000 rpm
Viscosity max.: 100000 mPas
Output max. at stirring shaft: 167 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 400 Ncm
Torque I max.: 400 Ncm
Torque II max.: 80 Ncm
Speed range I (50 Hz): 6 - 400 rpm
Speed range II (50 Hz): 30 - 2000 rpm
Speed range I (60 Hz): 6 - 400 rpm
Speed range II (60 Hz): 30 - 2000 rpm
Speed adjustment: stepless
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Chuck range diameter: 3 - 16 mm
Hollow shaft, inner diameter: 10.3 mm
Hollow shaft (push-through - when stopped): yes
Fastening on stand: extension arm
Extension arm diameter: 16 mm
Extension arm length: 160 mm
Speed control: electronic
Nominal torque: 4 Nm
Dimensions (W x H x D): 114 x 325 x 245 mm
Weight: 8.4 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 226 W
