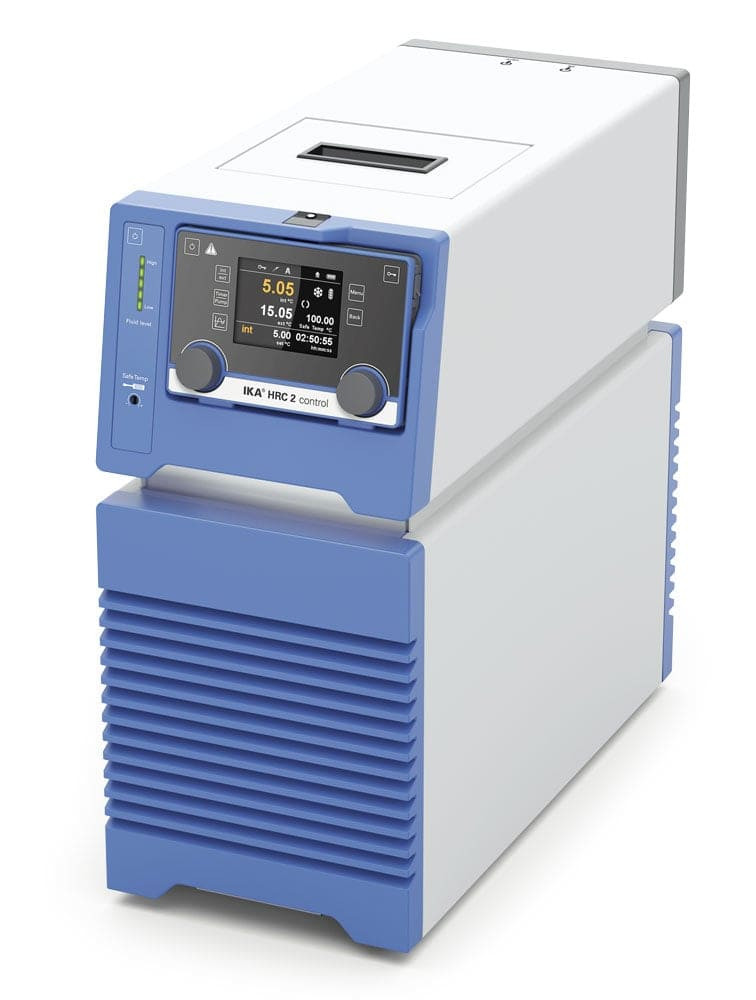

HRC 2 control

IKA - HRC 2 control

The compact refrigerated and heating circulator HRC 2 control is renowned for its high energy efficiency, a working temperature range from -30°C to 100°C and a powerful and infinitely variable pressure and suction pump. The on-demand and speed-controlled compressor reduces noise and operating costs.

The HRC 2 control in combination with an external temperature sensor is perfectly suitable to precisely temper external closed or open applications.

The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling. Using the external temperature control circuit is possible for up to 2,5 l thermofluid without a refill.

The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath. A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid.

Speed-controlled refrigeration system unit with 400 W cooling capacity
Speed-controlled PEEK pump (0,5 bar; 22 l/min)
1500 W heating capacity (1200 W @115V)
digital level indicator
Safety classification III (FL) according to DIN 12876
Adjustable temperature safety circuit

With the Wireless Controller (Wico) the HRC 2 control can be operated safely and conveniently everywhere. Processes can be automated and simplified through 10 freely programmable temperature ramps with each 10 steps.

Additional features of the control device:

Operating Mode D (Confirmation Mode)
Signal if Set Point is reached
Timer/Counter
outgassing function for Labreactors

Interfaces:

Connection socket for external PT 100 temperature sensor (Accessory: PT100.30; Lemo connector)
Connection of magnetic valves possible (Mulit IO)
Alarm contact (Multi IO)
Connector for Standby contact input (Multi IO)
RS 232
USB

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=25004524&iLang=1&iCountry=840&filename=DataSheet_HRC_2_control.pdf https://www.ika.com/ika/pdf/flyer-catalog/Thermostats_Brochure_EN_USD_IWW_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20190902_Thermostat_flyer_6pages_210x280mm_IWK_EN_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/2021_Green_IKA_Chillers_Flyer_IWW.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240909_Lab Essentials_Testing Lab_A4_Flyer_IWS_EN_websingle.pdf

Technische specificaties

Appliance type: Circulation thermostat
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Cooling agent: R134a
Cooling agent quantity: 230 g
Cooling agent pressure max.: 20 bar
Heat output: 1200 W
Cooling capacity (@20°C): 400 W
Cooling capacity (@10°C): 370 W
Cooling capacity (@0°C): 320 W
Cooling capacity (@-10°C): 240 W
Cooling capacity (@-20°C): 130 W
Working temperature: -30 - 100 °C
Operating temperature min.: -30 °C
Temperature display: yes
Temperature stability DIN 12876 (@+70°C): ±0.05 K
Temperature stability DIN 12876 (@-10°C): ±0.05 K
Temperature control: PID
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.05 K
Connection for ext. temperature sensor: PT 100
Display resolution: 0.01 K
Display for operation with ext. sensor: yes
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Warning function insufficient temperature: yes
Adjustable safety circuit: 0 - 110 °C
Sub-level protection: yes
Over-level protection: yes
Filling volume: 1.4 - 4.0 l
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.5 bar
Pressure pump (suction side) (0 liter flow): 0.25 bar
Flow rate max. (0 bar back pressure): 21 l/min
Pump connection: M16x1
Calibration option: yes
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Multi-Interface: yes
Alarm output (potential-free contact) max.: 1 A
Solenoid valve output: 24 VDC
Solenoid valve output max.: 0.8 A
Standby input: 5 VDC
Noise level: 52 dB(A)
Dimensions (W x H x D): 220 x 475 x 525 mm
Weight: 33.3 kg
Permissible ambient temperature: 5 - 32 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Analog output: yes
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 1500 W
