Verwarmen Waterbaden  HRC 2 GREEN basic

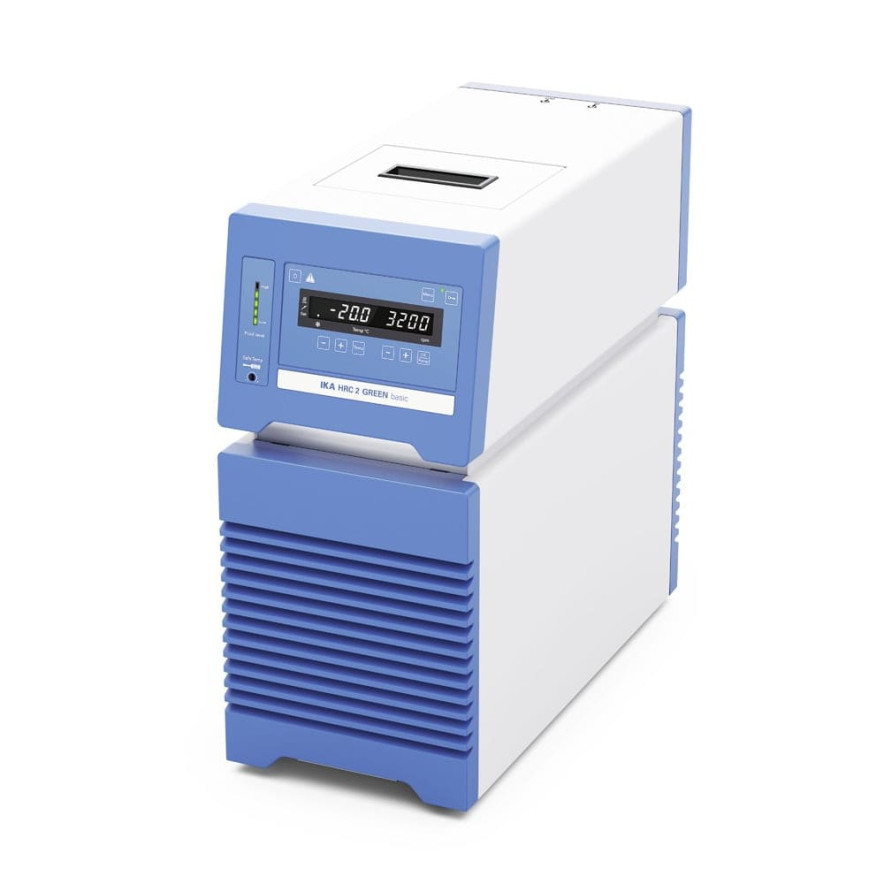

HRC 2 GREEN basic

IKA - HRC 2 GREEN basic

The compact HRC 2 GREEN basic cooling and heating circulation thermostat impresses with a working temperature range from -30°C to 100°C and a powerful, continuously variable pressure and suction pump.

The on-demand and speed-controlled compressor reduces noise and operating costs. The use of the natural refrigerant R290 achieves high energy efficiency and meets current environmental requirements for refrigerants.

The high-quality isolation of the 4-liter bath allows particularly fast heating and reduces heat input at low temperatures.

Up to 2.5 liters of thermofluid are available for the external temperature control circuit without refilling.

The integrated hopper and drain valve ensure safe and clean handling of the thermofluid. The easy-to-open front flap allows convenient cleaning of the stainless steel mesh air filter of the refrigeration unit. The bath has a drain valve on the front. A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid.

HRC 2 GREEN basic is the perfect peripheral device for bioreactors, synthesis reactors and applications in which energy is to be transferred to or from heat exchangers.

Features:

Speed-controlled refrigeration system with 620 W cooling capacity
Natural refrigerant R290
Speed-controlled pump make of PEEK: (0.5 bar; 22 l/min)
1500 W heating capacity
Digital level indicator
Safety classification III (FL) according to DIN 12876
Adjustable temperature safety circuit

Interfaces:

RS 232
USB

Scope of delivery

HRC 2 GREEN basic

Hose olive NW 8 (2 pcs.)

Hose olive NW 12 (2 pcs.)

Screwdriver (use for safety circuit)

USB Cable - USB A to Micro-B, 2 m

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=20128734&iLang=1&iCountry=840&filename=DataSheet_HRC_2_GREEN_basic_.pdf https://www.ika.com/ika/pdf/flyer-catalog/202508_Flyer_R290-Cooling-fluid_IWS_EN_web.pdf

Technische specificaties

Appliance type: Circulation thermostat
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Cooling agent: R290
Cooling agent quantity: 79 g
Cooling agent pressure max.: 21 bar
Heat output: 1200 W
Cooling capacity (@20°C): 620 W
Cooling capacity (@10°C): 600 W
Cooling capacity (@0°C): 480 W
Cooling capacity (@-10°C): 350 W
Cooling capacity (@-20°C): 200 W
Cooling capacity (@-30°C): 80 W
Working temperature: -30 - 100 °C
Operating temperature min.: -30 °C
Temperature display: yes
Temperature stability DIN 12876 (@+70°C): ±0.1 K
Temperature stability DIN 12876 (@-10°C): ±0.1 K
Temperature control: PID
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature measurement, absolute accuracy Internal (adjustable by calibration): ±0.5 K
Display resolution: 0.1 K
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Adjustable safety circuit: 0 - 110 °C
Sub-level protection: yes
Over-level protection: yes
Filling volume: 1.4 - 4.0 l
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump Speed min.: 2000 rpm
Pump Speed max.: 4000 rpm
Pump pressure max. (0 liters discharge flow): 0.5 bar
Pressure pump (suction side) (0 liter flow): 0.25 bar
Flow rate max. (0 bar back pressure): 21 l/min
Fluid maximum viscosity: 50 mm²/s
Pump connection: M16x1
Calibration option: yes
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Noise level: 58 dB(A)
Dimensions (W x H x D): 220 x 480 x 525 mm
Weight: 26 kg
Permissible ambient temperature: 5 - 32 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 1500 W
