Verwarmen Waterbaden  IC basic

IC basic

IKA - IC basic

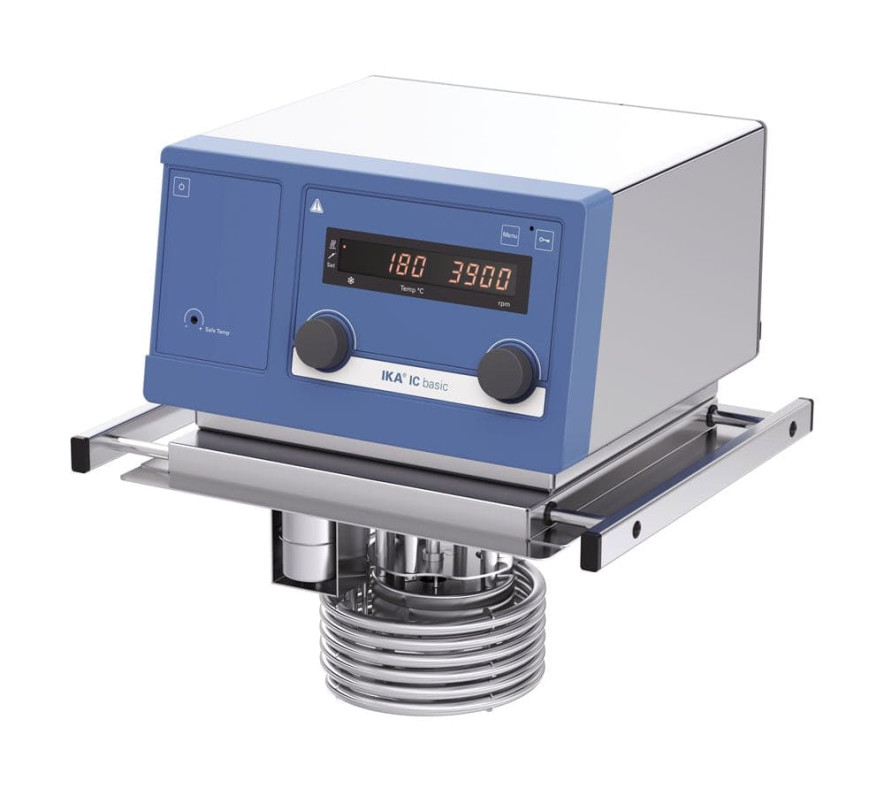

The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C. The circulator has an adjustable bridge that can be replaced by a fixed bridge.

With the integrated powerful pressure/suction pump, the IC basic can be used for internal and external applications. A cooling coil can be connected to the circulator to temper near-ambient temperatures. All IKA circulating baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876. The IC basic immersion circulators allow for quick heat-up times and stable temperautre conditions. With integrated connections (M16x1) the device is suitable for external applications.

Temperature range: RT - 250 °C
Temperature stability is ± 0.02 K
Stainless steel bath bridge can be combined with water baths of different volumes
Adjustable safety circuit
Powerful pressure/suction pump
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu navigation
Connection for external PT 100 temperature probe
Visual and acoustic safety warnings
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates

Scope of delivery

Hose olive NW 12 (2 pcs.)

Screwdriver

USB Cable - USB A to Micro-B, 2 m

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3861000&iLang=1&iCountry=840&filename=DataSheet_IC_basic.pdf https://www.ika.com/ika/pdf/flyer-catalog/Thermostats_Brochure_EN_USD_IWW_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20190902_Thermostat_flyer_6pages_210x280mm_IWK_EN_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/2021_Green_IKA_Chillers_Flyer_IWW.pdf https://www.ika.com/ika/lws/download/usb-driver.zip

Technische specificaties

Appliance type: Immersion thermostat
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 1250 W
Working temperature: room temp. +10K @1000rpm - 250 °C
Operating temperature min. (with external cooling): -20 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.02 K
Connection for ext. temperature sensor: PT 100
Display resolution: 0.1 K
Display for operation with ext. sensor: yes
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Adjustable safety circuit: 0 - 260 °C
Sub-level protection: yes
Over-level protection: yes
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.61 bar
Pressure pump (suction side) (0 liter flow): 0.45 bar
Flow rate max. (0 bar back pressure): 31 l/min
Pump connection: M16x1
Bath depth min.: 150 mm
Calibration option: yes
Appliance fastener: Bridge
Range of universal clamp: 280 - 375 mm
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 285 x 313 x 291 mm
Weight: 10 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 100 - 115 V
Frequency: 50/60 Hz
Power input: 1400 W
