Verwarmen Waterbaden  ICC 150 lite

ICC 150 lite

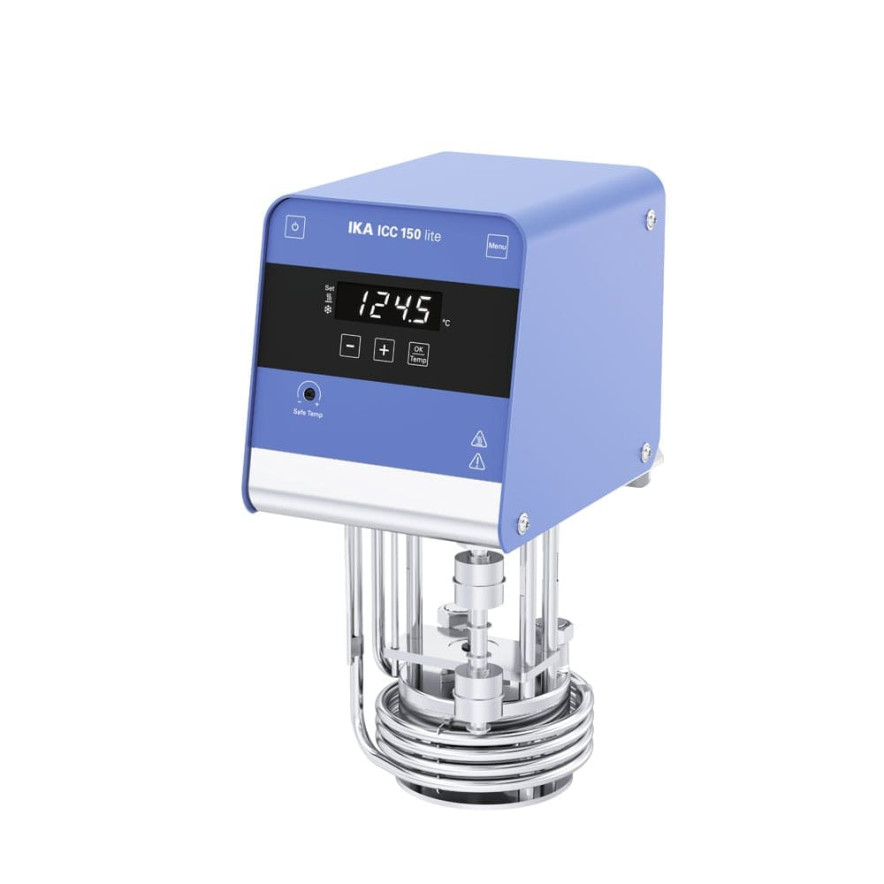

IKA - ICC 150 lite

The compact immersion circulators of the lite series are powerful and of high quality, with a focus on essential basic functions, excellent performance and efficient operation. ICC 150 lite is suitable for tempering liquids up to 150 °C. The integrated pressure/ suction pump allows the device to be used for internal and external applications.

YOUR BENEFITS

Increased safety: ICC 150 lite is approved for use with flammable liquids in accordance with DIN 12876, safety class III. It detects an overflow, e.g. due to an unintentional increase in the volume of oils, and switches the heating off safely.
Convenient handling: The integrated stand enables easy cleaning and prevents important components from being damaged.
Durability and low maintenance: Robust design thanks to high-quality material, housing made of coated stainless steel.
USB and RS232 interface for monitoring, control and documentation.
Easy configuration: To make configuration of your temperature control system as convenient as possible, IKA offers “ready-to-connect” packages with all the necessary accessories.

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=20105581&iLang=1&iCountry=840&filename=DataSheet_ICC_150_lite.pdf https://www.ika.com/ika/pdf/flyer-catalog/IKA-new-devices_analytica_24_0412__web.pdf

Technische specificaties

Appliance type: Compact immersion circulators
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 1000 W
Working temperature: room temp. - 150 °C
Operating temperature min. (with external cooling): -25 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT1000
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.05 K
Display resolution: 0.1 K
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Adjustable safety circuit: 0 - 160 °C
Sub-level protection: yes
Over-level protection: yes
Pump type: Pressure- / suction pump
Pump pressure max. (0 liters discharge flow): 0.3 bar
Pressure pump (suction side) (0 liter flow): 0.1 bar
Flow rate max. (0 bar back pressure): 15 l/min
Bath depth min.: 150 mm
Appliance fastener: clamp
Range of universal clamp: 0 - 40 mm
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 135 x 303 x 180 mm
Weight: 4.7 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: USB-B
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 1100 W
