Verwarmen Waterbaden  ICC 150 lite pro 12 c

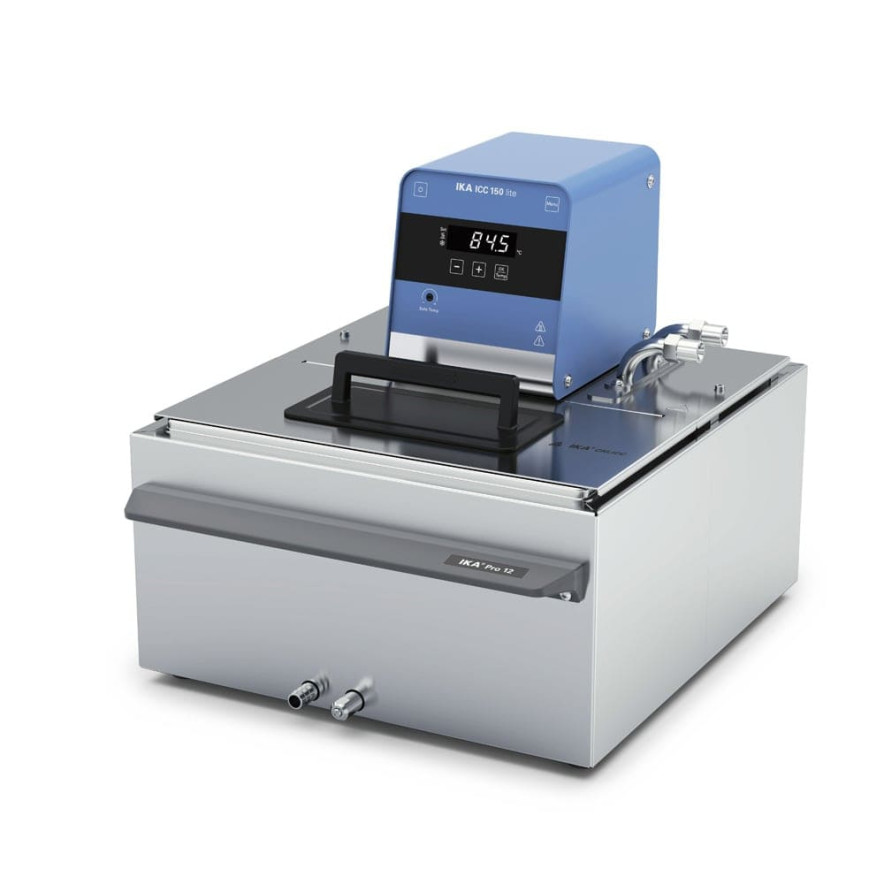

ICC 150 lite pro 12 c

IKA - ICC 150 lite pro 12 c

The compact immersion circulators of the lite series are powerful and of high quality, with a focus on essential basic functions, excellent performance and efficient operation.

ICC 150 lite is suitable for tempering liquids up to 150 °C. The integrated pressure/ suction pump allows ICC 150 lite to be used for internal and external applications.

To make configuration of your temperature control system as convenient as possible, IKA offers “ready-to-connect” packages with all the necessary accessories.

Package includes:

ICC 150 lite Compact immersion circulator

IB 12 pro Stainless steel bath (size M)

BL.ICC lite Bath bridge, big

CM.ICC Cover, medium

PCS.ICC Pump connection set

Max. temperature in stainless steel bath (pro): 150 °C

Technical data relates to the temperature control instrument included in the package.

Scope of delivery

ICC 150 lite Compact immersion circulator

IB 12 pro Stainless steel bath (size M)

BL.ICC lite Bath bridge, big

CM.ICC Cover, medium

PCS.ICC Pump connection set

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10013244&iLang=1&iCountry=840&filename=DataSheet_ICC_150_lite_pro_12_c.pdf https://www.ika.com/ika/pdf/flyer-catalog/IKA-new-devices_analytica_24_0412__web.pdf

Technische specificaties

Appliance type: Compact immersion circulators
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 2000 W
Working temperature: room temp. - 150 °C
Operating temperature min. (with external cooling): -25 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT1000
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.05 K
Display resolution: 0.1 K
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Adjustable safety circuit: 0 - 160 °C
Sub-level protection: yes
Over-level protection: yes
Pump type: Pressure- / suction pump
Pump pressure max. (0 liters discharge flow): 0.3 bar
Pressure pump (suction side) (0 liter flow): 0.1 bar
Flow rate max. (0 bar back pressure): 15 l/min
Bath depth min.: 150 mm
Appliance fastener: clamp
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 135 x 303 x 180 mm
Weight: 4.7 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: USB-B
Voltage: 230 V
Frequency: 50/60 Hz
Power input: 2100 W
