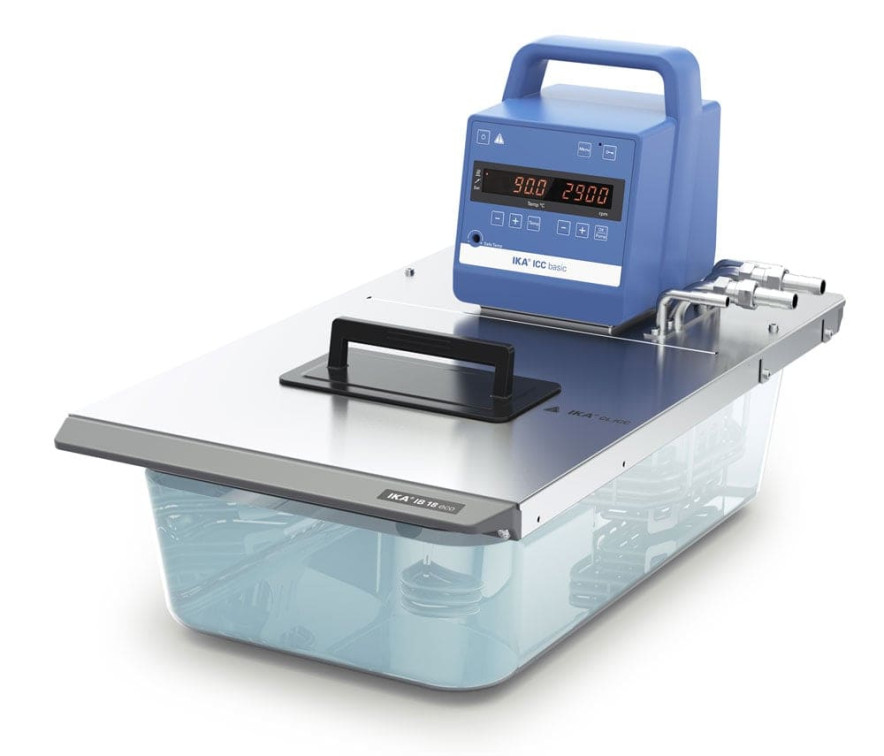

ICC basic eco 18 c

IKA - ICC basic eco 18 c

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.

Package includes

ICC basic compact immersion circulator
IB 18 eco plastic bath (size L)
CL.ICC large cover
BL.ICC large bridge
PCS.ICC pump connection set
CC2 cooling coil

total: 338 x 584 x 349 mm

bath opening: 245 x 305 mm *

max. bath opening:  286 x 325 mm **

Immersion depth. 85 mm–125 mm

*Dimensions to set plate at the bottom of bath.

** Maximum bath opening dimensions at the upper edge of the bath

Max. temperature in the plastic bath (“eco” series): 100°C (water only)

Technical data relates to the temperature control instrument included in the package

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=8035800&iLang=1&iCountry=840&filename=DataSheet_ICC_basic_eco_18_c.pdf https://www.ika.com/ika/pdf/flyer-catalog/Thermostats_Brochure_EN_USD_IWW_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20190902_Thermostat_flyer_6pages_210x280mm_IWK_EN_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/2021_Green_IKA_Chillers_Flyer_IWW.pdf

Technische specificaties

Appliance type: Compact immersion circulators
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 2000 W
Working temperature: room temp. +10K @1000rpm - 150 °C
Operating temperature min. (with external cooling): -20 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.02 K
Display resolution: 0.1 K
Display for operation with ext. sensor: yes
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Adjustable safety circuit: 0 - 160 °C
Sub-level protection: yes
Over-level protection: yes
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.3 bar
Pressure pump (suction side) (0 liter flow): 0.2 bar
Flow rate max. (0 bar back pressure): 18 l/min
Bath depth min.: 150 mm
Calibration option: yes
Appliance fastener: clamp
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 145 x 340 x 200 mm
Weight: 13.84 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 230 V
Frequency: 50/60 Hz
Power input: 2100 W
