Verwarmen Waterbaden  ICC basic IB R RO 15 pro

ICC basic IB R RO 15 pro

IKA - ICC basic IB R RO 15 pro

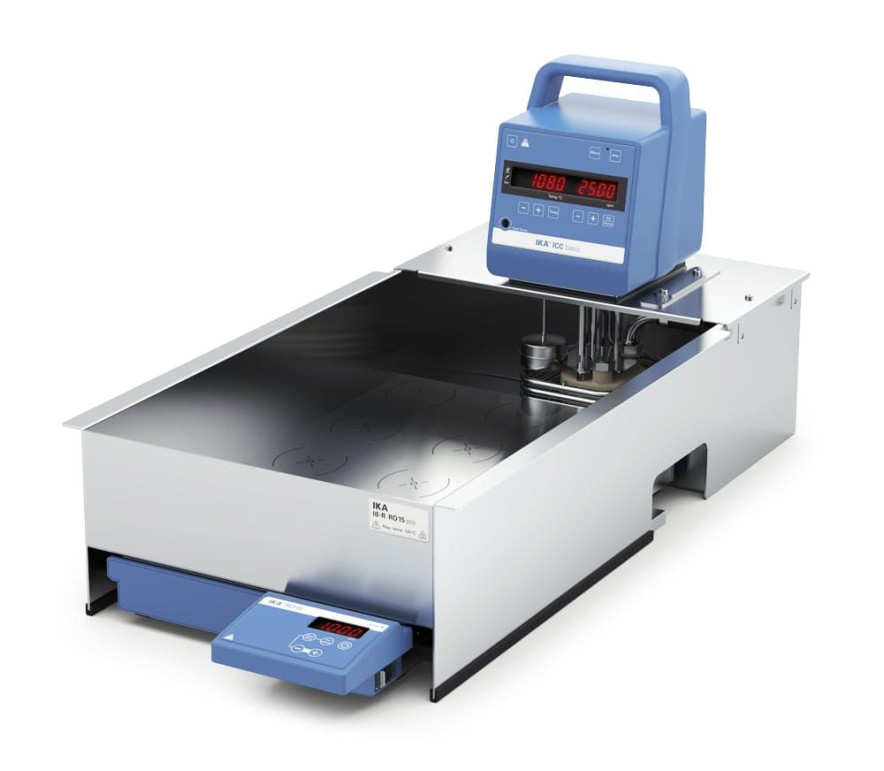

ICC basic IB R RO 15 pro is an integrated temperature control and mixing system with 15 stirring positions for glass vessels up to 250 ml.

The system includes the ICC basic immersion circulator and the bath bridge BL.ICC as well as the pump connection set PDS.IB.R.RO with flow distributor for even temperature control of the stainless steel bath over the entire bath length. 15 laser markings make it easier to position the sample vessels in the bath.

Max. temperature: 130 °C
Bath opening (usable sample area): 489 x 313 x 98 mm
Immersion depth of the samples: 35-75 mm
Stainless steel bath for magnetic stirrer RO 15, size L, 25 l volume
Total external dimensions (depth/ width/ height) : 678 x 361 x 355 mm*

In order to achieve temperatures >80 °C in the bath when using water as a tempering medium, we recommend our floating balls made of PP.

*Technical data are related to the temperature control device included in the package.

Scope of delivery

ICC basic

BL.ICC Large bridge

IB R RO 15 pro

RO 15

PDS.IB.R.RO

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10006740&iLang=1&iCountry=840&filename=DataSheet_ICC_basic_IB_R_RO_15_pro.pdf

Technische specificaties

Appliance type: Compact immersion circulators
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 2000 W
Working temperature: room temp. +10K @1000rpm - 150 °C
Operating temperature min. (with external cooling): -20 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.02 K
Display resolution: 0.1 K
Display for operation with ext. sensor: yes
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Adjustable safety circuit: 0 - 160 °C
Sub-level protection: yes
Over-level protection: yes
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.3 bar
Pressure pump (suction side) (0 liter flow): 0.2 bar
Flow rate max. (0 bar back pressure): 18 l/min
Bath depth min.: 150 mm
Calibration option: yes
Appliance fastener: clamp
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 145 x 340 x 200 mm
Weight: 3.75 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 230 V
Frequency: 50/60 Hz
Power input: 2100 W
