Verwarmen Waterbaden  ICC control eco 8

ICC control eco 8

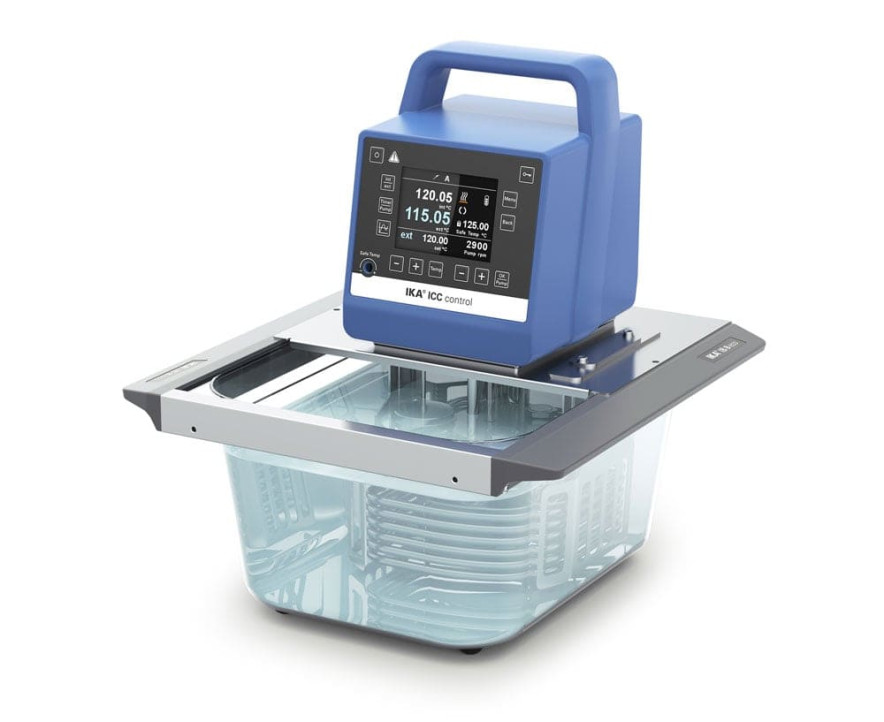

IKA - ICC control eco 8

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.

Package includes

ICC control Compact Immersion Circulator
IB 8 eco Plastic bath (size S)
BS.ICC Small bridge

total: 320 x 335 x 349 mm

bath opening: 188 x 105 mm *

max. bath opening: 227 x 118 mm **

Immersion depth. 85 mm–125 mm

*Dimensions to set plate at the bottom of bath.

** Maximum bath opening dimensions at the upper edge of the bath

Max. temperature in the plastic bath (“eco” series): 100°C (water only)

Technical data relates to the temperature control instrument included in the package

Scope of delivery

ICC control eco 8

ICC control

IB 8 eco

BS.ICC Small bridge

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=8035300&iLang=1&iCountry=840&filename=DataSheet_ICC_control_eco_8.pdf https://www.ika.com/ika/pdf/flyer-catalog/Thermostats_Brochure_EN_USD_IWW_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20190902_Thermostat_flyer_6pages_210x280mm_IWK_EN_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/2021_Green_IKA_Chillers_Flyer_IWW.pdf

Technische specificaties

Appliance type: Compact immersion circulators
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 2000 W
Working temperature: room temp. +10K @1000rpm - 150 °C
Operating temperature min. (with external cooling): -20 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT 100
Safety temperature sensor: PT1000
Working temperature display: TFT
Safety temperature display: TFT
Temperature stability DIN 12876: ±0.01 K
Connection for ext. temperature sensor: PT 100
Display resolution: 0.01 K
Display for operation with ext. sensor: yes
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Adjustable safety circuit: 0 - 160 °C
Sub-level protection: yes
Over-level protection: yes
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.3 bar
Pressure pump (suction side) (0 liter flow): 0.2 bar
Flow rate max. (0 bar back pressure): 18 l/min
Bath depth min.: 150 mm
Calibration option: yes
Appliance fastener: clamp
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 145 x 340 x 200 mm
Weight: 10.56 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 230 V
Frequency: 50/60 Hz
Power input: 2100 W
