Schudden Schudders tot 15 kg  IKA myPlate

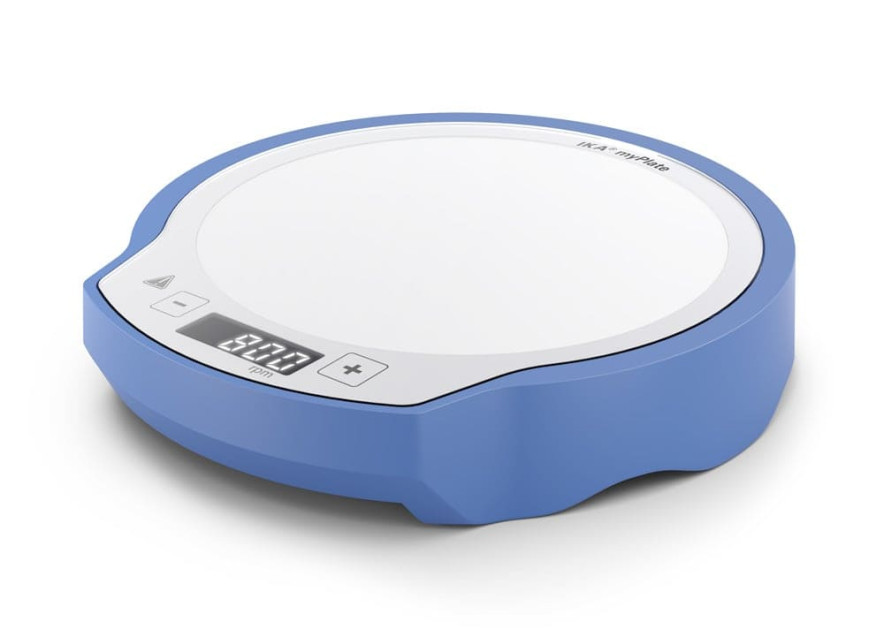

IKA myPlate

IKA - IKA myPlate

IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization.

Personal interchangeable frame

Design the set-up plate of the IKA myPlate by yourself. You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame. Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures.

Proven high functionality

Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA.

High chemical resistance
Electronically controlled motor
Digital speed indicator
Speed range between 100 and 2500 rpm

Scope of delivery

IKA myPlate

Blank photo papers (10 pcs.)

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=25005156&iLang=1&iCountry=840&filename=DataSheet_IKA_myPlate.pdf https://www.ika.com/ika/pdf/flyer-catalog/201808_myPlate_Flyer_IWW_EN_screen.pdf

Technische specificaties

Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 1.5 l
Maximum load: 3 kg
Motor rating output: 2 W
Direction of rotation: left
Speed display set-value: LED
Speed display actual-value: LED
Speed adjustment: Touch key
Speed range: 100 - 2500 rpm
Setting accuracy speed: 10 rpm
Stirring bar length max.: 30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): +2 K
Set-up plate material: glass
Set-up plate dimensions: Ø 135 mm
Dimensions (W x H x D): 152 x 30 x 164 mm
Weight: 0.76 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 54
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 4 W
Power input standby: 1 W
DC Voltage: 12 V=
Current consumption: 300 mA
