Schudden Schudders tot 15 kg  KS 4000 ic control

KS 4000 ic control

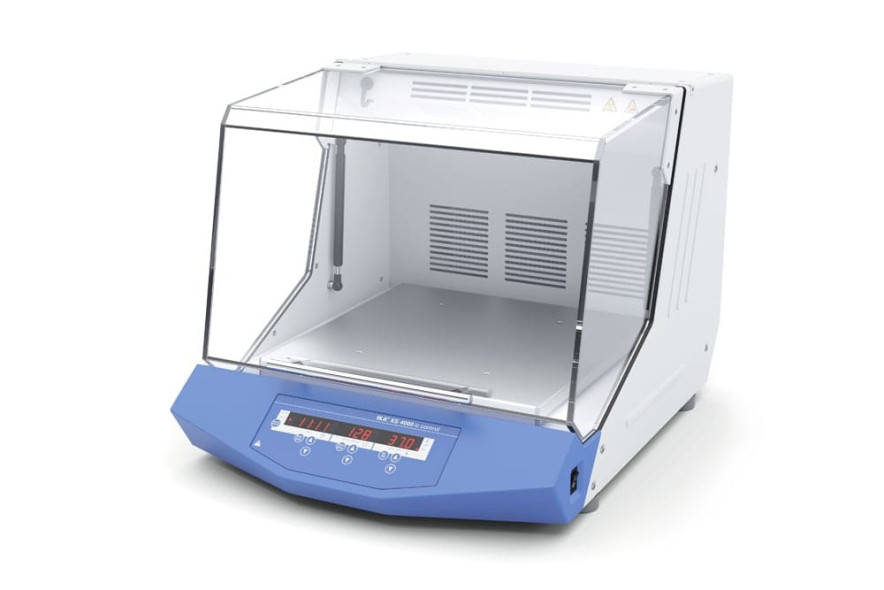

IKA - KS 4000 ic control

Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.

Large LED display for speed and time settings
Controls with antimicrobial coating for reduction of bacteria
Integrated PID temperature control (use of two PT 1000 temperature sensors)
Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
Electronic temperature and speed control
Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
Optional built-in cooler for connection to an external cooling unit e.g. RC 2 basic / control
Unit switches off automatically if disturbed
Unit stops automatically when hood is lifted
Collecting tray with drain hose on rear of unit
Simple operation
All functions can be controlled and documented with labworldsoft®
Attachements are not included in delivery, please order separatly

Scope of delivery

KS 4000 ic control

PT 1000.60 Temperature sensor, stainless steel

Clamping screws short (4 pcs.)

Clamping screws long (2 pcs.)

Cable RS 232

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3510100&iLang=1&iCountry=840&filename=DataSheet_KS_4000_ic_control.pdf https://www.ika.com/ika/pdf/flyer-catalog/202005_Covid19_Flyer_A5_EN_IWW_USD_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/20230426_selection guide shaker_flyer_210x297mm_IWS_EN_websingle.pdf https://www.ika.com/ika/pdf/flyer-catalog/20220614_lifescience_brochure_210x280_IWS_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240909_Lab Essentials_Natural Products_A4_Flyer_IWS_EN_websingle.pdf

Technische specificaties

Type of movement: orbital
Shaking stroke: 20 mm
Permissible shaking weight (incl. attachment): 20 kg
Motor rating input: 82 W
Motor rating output: 24 W
Permissible ON time: 100 %
Speed min (adjustable): 10 rpm
Speed range: 10 - 500 rpm
Speed display: LED
Speed deviation: ±5 rpm
Speed adjustment: 1 RPM steps
Timer: yes
Timer display: 7 segment LED
Time setting range: 1 - 59940 min
Operating mode: timer and continuous operation
Heat output: 1000 W
Set temperature resolution: 0.1 K
Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C): ±0.5 K
Temperature display: yes
Temp. stability (0,2l H2O; RT 25°C, T=37°C): ±0.1 K
Temperature range (inlet T>3°C): 12 - 80 °C
Operating area inner chamber: 440 x 440 x 352 mm
Total volume inner chamber: 90 l
Raw material housing: Sheet metal powder coat
Raw material front foil: polyester
Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C): ±0.05 K
Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C): ±0.5 K
Height with open hood: 875 mm
Dimensions (W x H x D): 580 x 520 x 750 mm
Weight: 55 kg
Permissible ambient temperature: 15 - 32 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 30
RS 232 interface: yes
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 1120 W
Fuse: 2x T16A 250V
