Schudden Schudders tot 15 kg  MATRIX Orbital

MATRIX Orbital

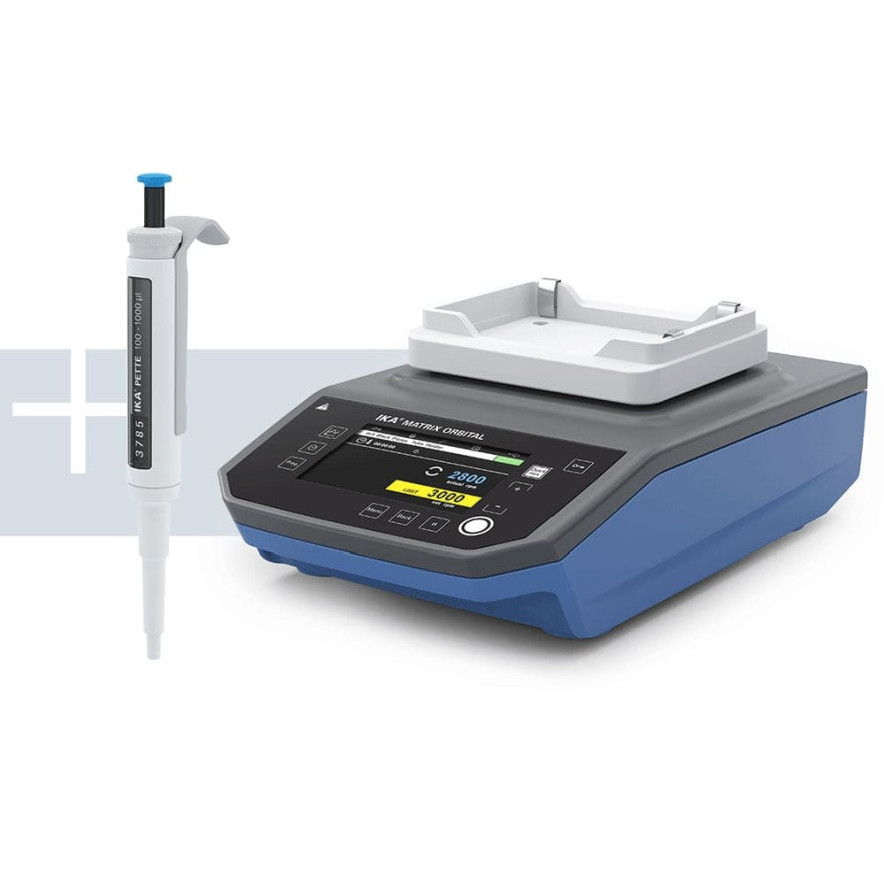

IKA - MATRIX Orbital

The IKA Matrix Orbital is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.

In addition, IKA Matrix Orbital comes with numerous user-friendly features:

Large and clear display with a convenient menu structure allows for intuitive operation
Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
Speed adjustment according to insert, attachment and filling volume
Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness

Scope of delivery

MATRIX Orbital

MX insert PCR96

MX insert 1.5/2.0 ml

MX insert 0.5 ml

IKA PETTE vario 100-1000 µl

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10006246&iLang=1&iCountry=840&filename=DataSheet_MATRIX_Orbital.pdf https://www.ika.com/ika/pdf/flyer-catalog/201808_Matrix_Flyer_IWW_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/202005_Covid19_Flyer_A5_EN_IWW_USD_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/20220720_IKA_success stroy_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20230426_selection guide shaker_flyer_210x297mm_IWS_EN_websingle.pdf https://www.ika.com/ika/pdf/flyer-catalog/IWS_Matrix_Brochure_23_03_EN web.pdf

Technische specificaties

Type of movement: orbital
Shaking stroke: 3 mm
Maximum load: 0.3 kg
Permissible ON time: 100 %
Speed min (adjustable): 300 rpm
Speed range: 0 - 3000 rpm
Speed display: TFT
Speed deviation: ±30 rpm
Speed adjustment: 10 RPM Steps
Timer: yes
Timer display: TFT
Time setting min.: 1 s
Time setting max.: 6000 min
Operating mode: timer and continuous operation
Working with microtiter plates: yes
Number of reaction vessels: 24x 0.5 ml / 24x 1.5 ml / 24x 2.0 ml
Number of PCR plates: 1
Number of Deep Well Plates (DWP): 1
Dimensions (W x H x D): 200 x 120 x 320 mm
Weight: 7.2 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: USB-B
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 80 W
Power input max.: 80 W
Fuse: 2x T4A 250V
