Schudden Schudders tot 15 kg  MINISTAR 20 digital

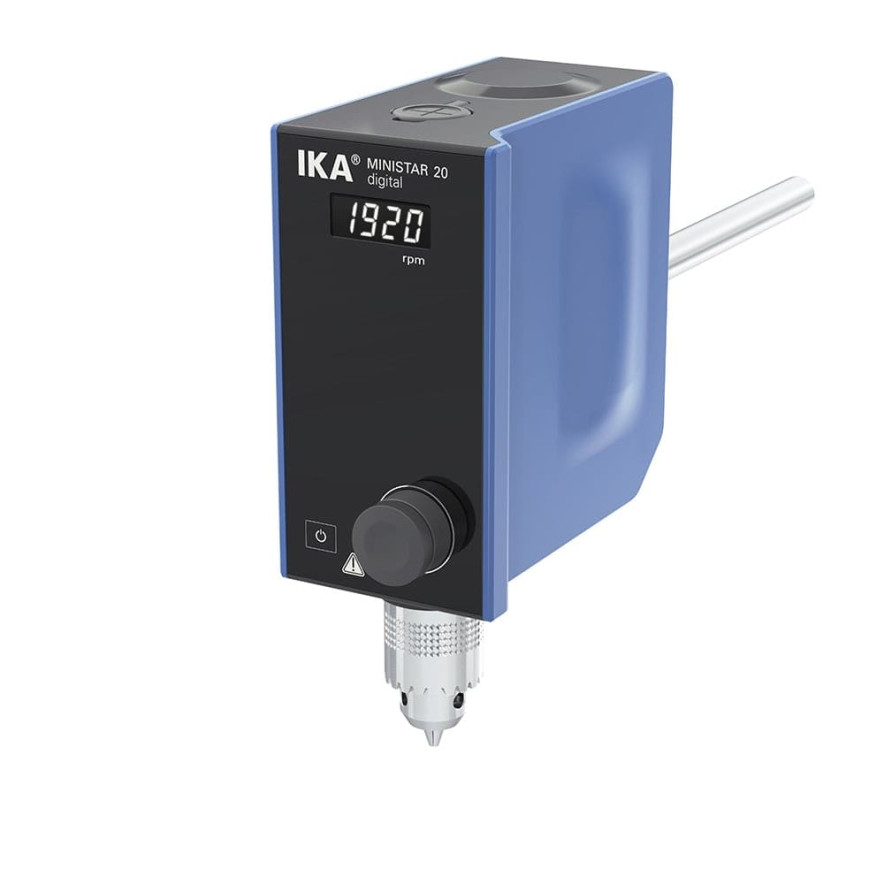

MINISTAR 20 digital

IKA - MINISTAR 20 digital

The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models. The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design.

Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

Compact design

The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions.

Constant torque

All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range. The new devices are available in six different versions with rpms of up to 2,000 rpm and a torque of up to 80 Ncm.

Ease of operation

Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.

Rapid updates

Regular software updates can be undertaken rapidly and simply via the USB interface.

Scope of delivery

MINISTAR 20 digital

R 300 shaft protector

Fasten screws for R 300 (2 pcs.)

chuck key

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=25004885&iLang=1&iCountry=840&filename=DataSheet_MINISTAR_20_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/201808_MicroMinistar digital_Flyer_IWW_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240729_Flyer_Stirrers_Technical Overview_6 pages_IWS_EN_web.pdf https://www.ika.com/ika/pdf/flyer-catalog/IKA_Nano_Micro_Ministar_Flyer_201908_EN_web.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 15 l
Motor rating input: 60 W
Motor rating output: 46 W
Motor principle: Brushless DC
Speed display: LED
Speed range: 0/50 - 2000 rpm
Viscosity max.: 10000 mPas
Output max. at stirring shaft: 42 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 20 Ncm
Speed adjustment: Turning knob
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Chuck range diameter: 0.5 - 8.2 mm
Hollow shaft, inner diameter: 8.5 mm
Hollow shaft (push-through - when stopped): yes
Fastening on stand: extension arm
Extension arm diameter: 13 mm
Extension arm length: 160 mm
Nominal torque: 0.2 Nm
Timer display: none
Housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 70 x 193 x 147 mm
Weight: 1.56 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 54
USB interface: Micro-USB
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 69 W
Power input standby: 0.5 W
DC Voltage: 24 V=
Current consumption: 2900 mA
