Schudden Schudders tot 15 kg  MINISTAR 40 control

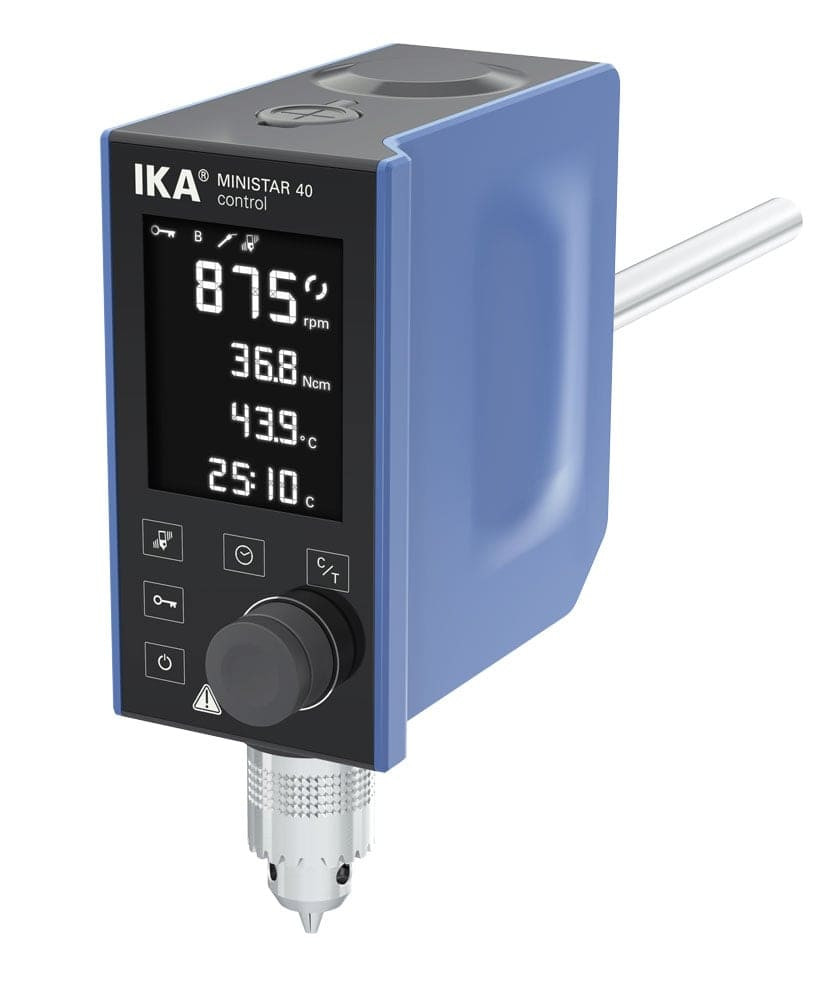

MINISTAR 40 control

IKA - MINISTAR 40 control

The new MINISTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.

Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

“The Universal” in the high-tech mini class, reaches up to 1000 RPM!

Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
Clear display for all essential information at a glance
Integrated timer / counter for the control of kinetic sensitive reactions and reminders
Viscosities up to 30,000 mPas and volume of up to 25 l
Continuously adjustable speed between 0/30 – 1,000 rpm
USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
Intuitive and simple handling; touch-sensitive surface for long service life
Temperature reading on display
Chemical resistant housing
Key lock function
Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

Scope of delivery

MINISTAR 40 control

R 300 shaft protector

Fasten screws for R 300 (2 pcs.)

H 67.60 Temperature sensor, stainless steel

chuck key

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=25001989&iLang=1&iCountry=840&filename=DataSheet_MINISTAR_40_control.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240729_Flyer_Stirrers_Technical Overview_6 pages_IWS_EN_web.pdf https://www.ika.com/ika/pdf/flyer-catalog/IKA_Nano_Micro_Ministar_Flyer_201908_EN_web.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 25 l
Motor rating input: 60 W
Motor rating output: 46 W
Motor principle: Brushless DC
Speed display: LCD
Speed range: 0/30 - 1000 rpm
Viscosity max.: 30000 mPas
Output max. at stirring shaft: 42 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 40 Ncm
Speed adjustment: Turning knob
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Connection for ext. temperature sensor: PT1000
Temperature display: yes
Chuck range diameter: 0.5 - 8.2 mm
Hollow shaft, inner diameter: 8.5 mm
Hollow shaft (push-through - when stopped): yes
Fastening on stand: extension arm
Extension arm diameter: 13 mm
Extension arm length: 160 mm
Torque display: yes
Speed control: electronic
Nominal torque: 0.4 Nm
Torque measurement: trend
Deviation of torque measurement I: ±4 Ncm
Timer: yes
Timer display: LCD
Time setting range: 1 - 6000 min
Temperature measuring range: -10 - 350 °C
Temperature measurement resolution: 0.1 K
Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K
Housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 70 x 193 x 154 mm
Weight: 1.72 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 54
USB interface: Micro-USB
WPAN interface: yes
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 69 W
DC Voltage: 24 V=
Current consumption: 2900 mA
