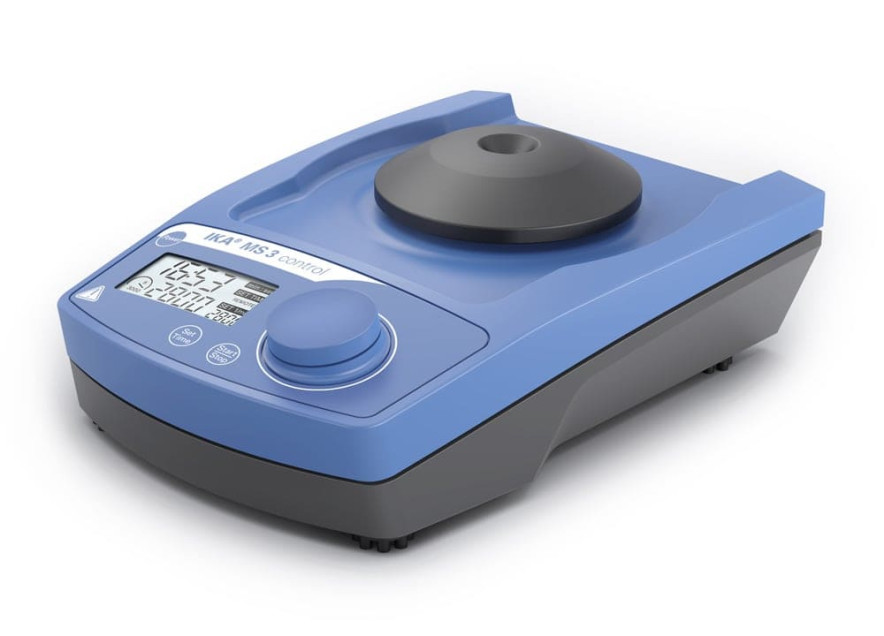

MS 3 control

IKA - MS 3 control

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

Wide range of attachments
Attachment detection
Timer with countdown function
Stable in all speed ranges
Sturdy zinc die cast casing
USB connection for remote control
Continuous or touch operation (with standard attachment)

Two operating modes:

Mode A (safe mode with attachment detection):

The maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.

Mode B (without attachment detection):

A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).

Scope of delivery

MS 3 control

MS 3.1 Standard attachment

MS 3.3 Universal attachment

MS 3.4 Microtiter attachment

MS 1.21 One-hand insert

MS 1.32 Test tube insert

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=20016017&iLang=1&iCountry=840&filename=DataSheet_MS_3_control.pdf https://www.ika.com/ika/pdf/flyer-catalog/202005_Covid19_Flyer_A5_EN_IWW_USD_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/20230426_selection guide shaker_flyer_210x297mm_IWS_EN_websingle.pdf

Technische specificaties

Type of movement: orbital
Shaking stroke: 4.5 mm
Permissible shaking weight (incl. attachment): 0.5 kg
Motor rating input: 10 W
Motor rating output: 8 W
Permissible ON time: 100 %
Speed min (adjustable): 100 rpm
Speed range: 100 - 3000 rpm
Speed display: LCD
Speed deviation: 1 %
Timer: yes
Timer display: LCD
Time setting min.: 1 s
Time setting max.: 3599 min
Deviation device clock max.: 1 %
Operating mode: timer and continuous operation
Touch function: yes
Working with microtiter plates: yes
Number of microtiter plates: 1
Dimensions (W x H x D): 148 x 63 x 205 mm
Weight: 3.16 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 20 W
DC Voltage: 24 V=
Current consumption: 800 mA
