MS 3 digital

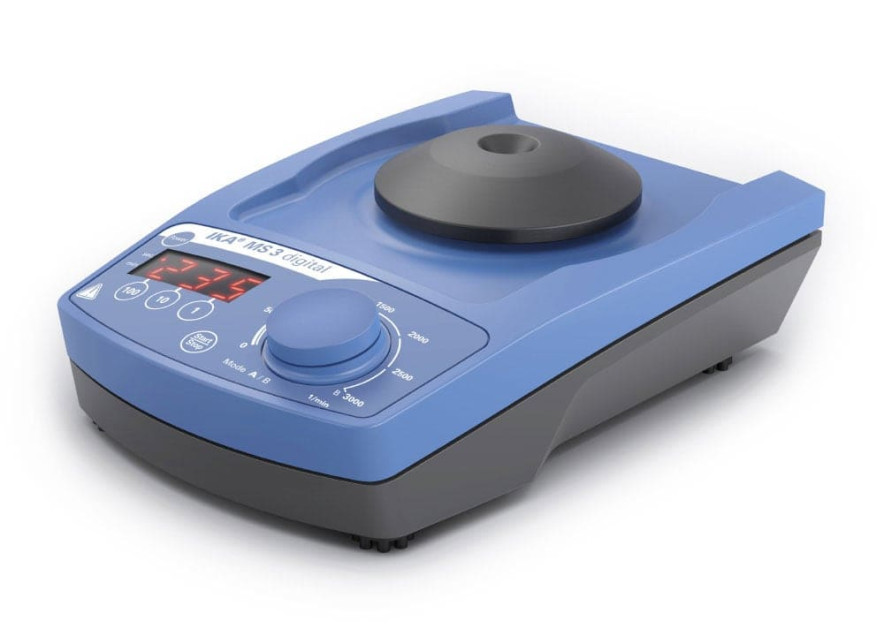

IKA - MS 3 digital

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

Wide range of attachments
Attachment detection
Timer with countdown function
Continuous or touch operation (with standard attachment)
Two operating modes:
Mode A (safe mode with attachment detection)

the maximum speed of 3.000 rpm is only reached with the standard attachment in

touch mode. When using other attachments the speed is limited to 1.300 rpm.

Mode B (without attachment detection)

A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).

Stable in all speed ranges
Sturdy zinc die cast casing

Scope of delivery

MS 3 digital

MS 3.1 Standard attachment

MS 3.3 Universal attachment

MS 3.4 Microtiter attachment

MS 1.21 One-hand insert

MS 1.32 Test tube insert

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3319000&iLang=1&iCountry=840&filename=DataSheet_MS_3_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/202005_Covid19_Flyer_A5_EN_IWW_USD_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/20230426_selection guide shaker_flyer_210x297mm_IWS_EN_websingle.pdf

Technische specificaties

Type of movement: orbital
Shaking stroke: 4.5 mm
Permissible shaking weight (incl. attachment): 0.5 kg
Motor rating input: 10 W
Motor rating output: 8 W
Permissible ON time: 100 %
Speed min (adjustable): 200 rpm
Speed range: 0 - 3000 rpm
Speed display: scale
Timer: yes
Timer display: 7 segment LED
Time setting min.: 1 s
Time setting range: 1 - 999 min
Operating mode: timer and continuous operation
Touch function: yes
Working with microtiter plates: yes
Number of microtiter plates: 1
Dimensions (W x H x D): 148 x 63 x 205 mm
Weight: 2.9 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 20 W
DC Voltage: 24 V=
Current consumption: 800 mA
