Schudden Schudders tot 15 kg  NANOSTAR 7.5 digital

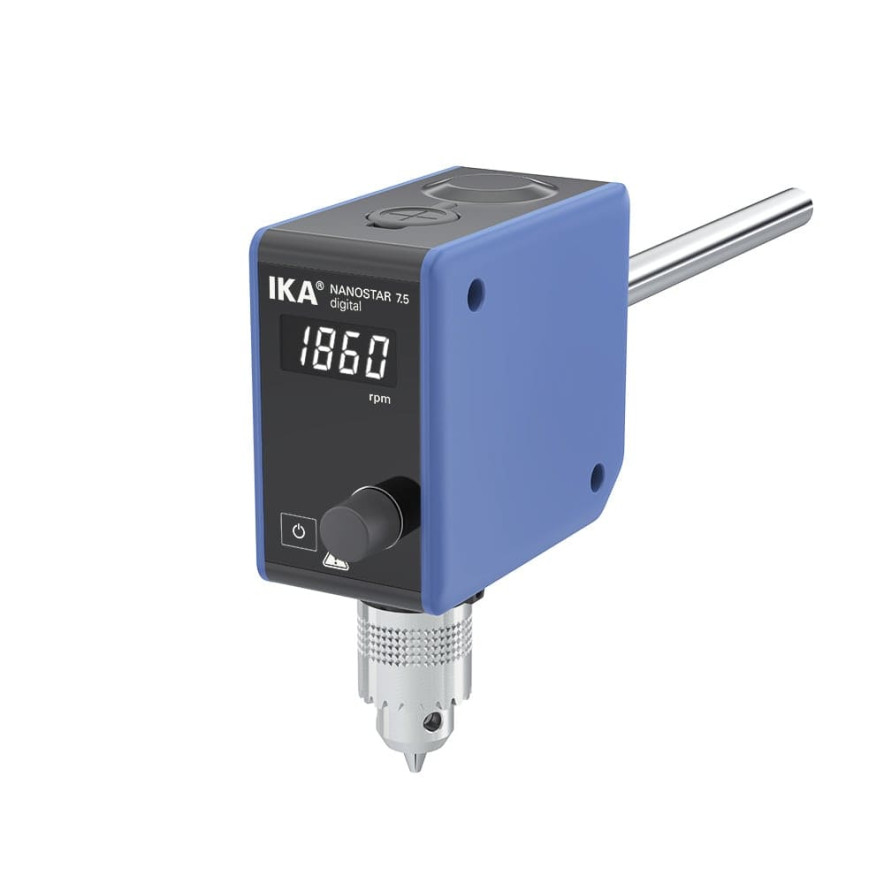

NANOSTAR 7.5 digital

IKA - NANOSTAR 7.5 digital

The overhead stirrer NANOSTAR 7.5 digital is 30 % smaller than the MICROSTAR 7.5 digital and therefore even more space-saving. However, its performance remains the same. NANOSTAR 7.5 digital convinces with perfect basic functionalities, its compact design and is with just 0,8 kg easy to handle.

Constant torque

NANOSTAR 7.5 digital guarantees a constant torque over the entire rpm range from 50 - 2.000 rpm.

Ease of operation

Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.

Rapid updates

Regular software updates can be undertaken rapidly and simply via the USB interface.

Scope of delivery

NANOSTAR 7.5 digital

R 300 shaft protector

Fasten screws for R 300 (2 pcs.)

chuck key

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=25004356&iLang=1&iCountry=840&filename=DataSheet_NANOSTAR_7.5_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/IKA_Nano_Micro_Ministar_Flyer_201908_EN_web.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 5 l
Motor rating input: 32 W
Motor rating output: 22 W
Motor principle: Brushless DC
Speed display: LED
Speed range: 0/50 - 2000 rpm
Viscosity max.: 4000 mPas
Output max. at stirring shaft: 15.7 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 7.5 Ncm
Speed adjustment: Turning knob
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Chuck range diameter: 0.5 - 8.2 mm
Hollow shaft, inner diameter: 8.5 mm
Hollow shaft (push-through - when stopped): yes
Fastening on stand: extension arm
Extension arm diameter: 13 mm
Extension arm length: 160 mm
Nominal torque: 0.075 Nm
Timer display: none
Housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 53 x 147 x 130 mm
Weight: 0.8 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 54
USB interface: Micro-USB
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 32 W
Power input standby: 0.3 W
DC Voltage: 24 V=
Current consumption: 1300 mA
