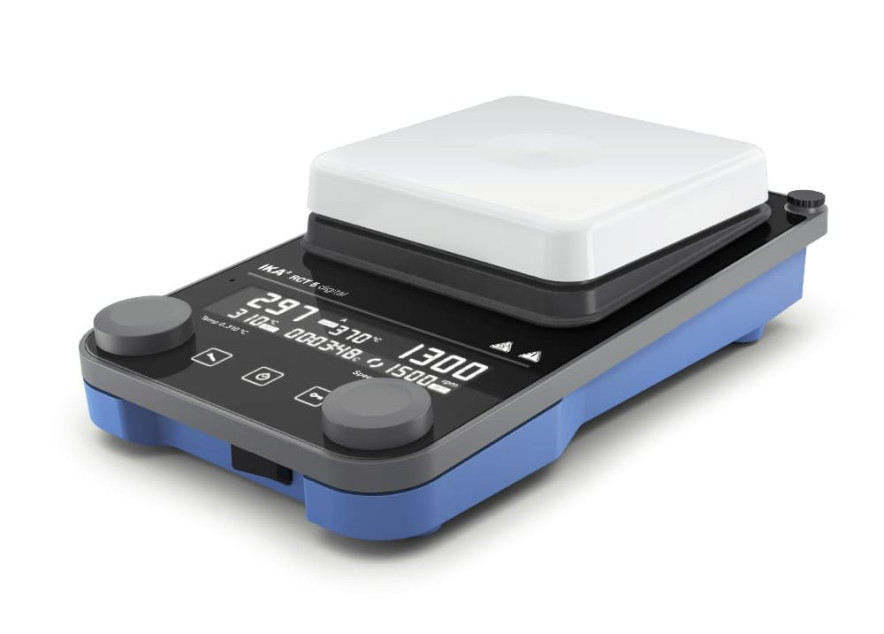

RCT 5 digital

IKA - RCT 5 digital

The new magnetic stirrer RCT 5 digital with 850 W offers significantly more power making it an ideal device for demanding stirring tasks up to 20 l.

Multifunctional menu

Whether determining the direction of rotation, timer functions or sequence programming - the stirring process can be programmed individually from beginning to end. In this way, the reaction runs reliably and safely even without monitoring.

Scratch-resistant ceramic coating

RCT 5 digital has a rectangular set-up plate with a white, ceramic coating. It is less scratch-prone than conventional magnetic stirrer plates.

Safety features

The display is made of chemical resistant and hardened glass which increases the safety of the user. In addition, a symbol in the display warns in case of a hot surface and therefore protects from burnings. The safety circuit can be adjusted up to 370 °C.

Automatic switch-off of the heating function, if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5).

Scope of delivery

RCT 5 digital

PT 1000.60 Temperature sensor, stainless steel

IKAFLON® 30 Magnetic stirring bar

IKAFLON® 40 Magnetic stirring bar

Screw driver

USB A-B Cable

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=20002704&iLang=1&iCountry=840&filename=DataSheet_RCT_5_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/202408_Integrated Safety_6 Page Flyer_IWW_EN_web_single.pdf

Technische specificaties

Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 20 l
Maximum load: 25 kg
Motor rating output: 9 W
Direction of rotation: right / left
Speed display set-value: LCD
Speed display actual-value: LCD
Speed adjustment: Turning knob
Speed range: 50 - 1500 rpm
Setting accuracy speed: 10 rpm
Stirring bar length: 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): +17 K
Heat output: 850 W
Temperature display set-value: LCD
Temperature display actual-value: LCD
Temperature unit: °C / °F
Heating temperature range: Room temp. + device self heating - 310 °C
Heat control: Turning knob
Temperature setting range: 0 - 310 °C
Temperature setting resolution of heating plate: 1 K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium: 1 K
Adjustable safety circuit: 50 - 370 °C
Set-up plate material: Aluminum with ceramic coating
Set-up plate dimensions: 137 x 137 mm
Automatic reverse rotation: yes
Intermittent mode: yes
Viscosity trend measurement: yes
Timer: yes
Timer display: LCD
Time setting min.: 1 s
Time setting max.: 143940 min
Sensor in medium detection: yes
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heating rate (1l H2O in H1500): 7.5 K/min
Heat control accuracy of heating plate (at 100°C): ±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.2 K
Dimensions (W x H x D): 160 x 85 x 270 mm
Weight: 2.6 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
RS 232 interface: yes
USB interface: USB-B
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 900 W
Power input standby: 1.6 W
