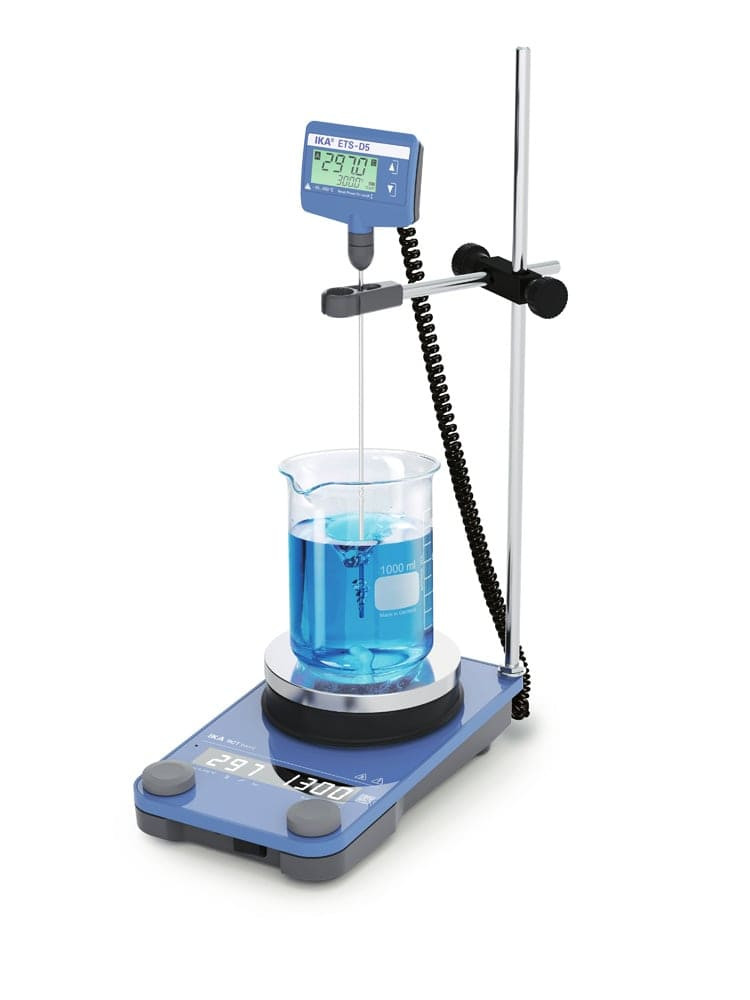

The RCT basic ETS-D5 Solution consists of the RCT basic magnetic stirrer and the ETS-D5 electronic contact thermometer making experiments and reactions even safer.

Improved temperature control

By combining the two devices, the internal safety circuit, which is independent of the RCT basic software, can be addressed directly by the contact thermometer. For this purpose, the maximum permissible temperature in the medium is limited independently of the set point temperature. If this value is exceeded, the heating function of the magnetic stirrer switches off via the internal safety circuit - until the device is restarted. At the same time, the stirring function is maintained to avoid boiling distortions.

The set safety temperature of the heating plate also remains available. The set temperature limitation of the ETS-D5 and the safety temperature of the hotplate are OR-linked. This means that every potential error leads to the heating being switched off. In addition, the temperature of the heating plate can be set independently of the medium. In this way, you actively influence the heating times.

Improved display

With the ETS-D5, you also enhance the display of your magnetic stirrer. You can see the set and actual value of the medium temperature at a glance with a resolution of 0.1 K on the contact thermometer. The setting accuracy is also refined from 1 K to 0.1 K in this combination. The current hotplate temperature is also displayed on the RCT.

Another plus: The display of the contact thermometer can be placed at eye level. This makes it directly visible where the temperature is measured and controlled.

In addition to the magnetic stirrer and contact thermometer, the complete solution also includes all the necessary mounting elements.

Scope of delivery

H 16 V Support rod

Magnetic stirring bar Set 30+40

H 44 Boss head clamp

Screw driver

ETS-D5

PT 1000.60 Temperature sensor, stainless steel

H 38 Holding rod

RCT basic
