Schudden Schudders tot 15 kg  RCT basic ready-to-go Solution

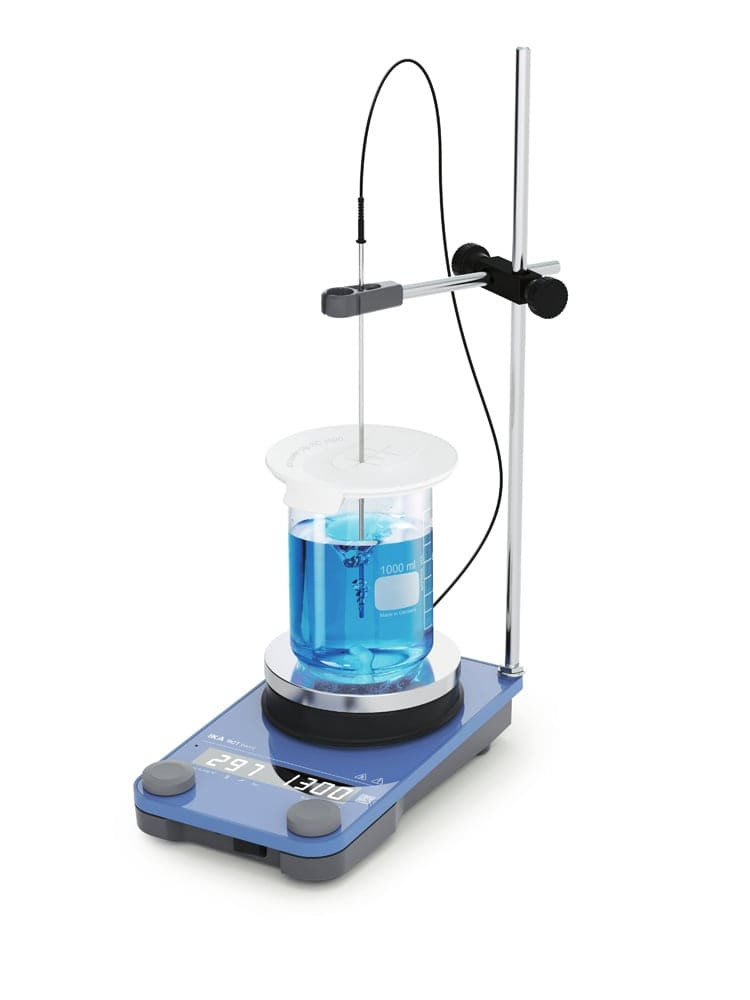

RCT basic ready-to-go Solution

IKA - RCT basic ready-to-go Solution

The RCT basic ready-to-go Solution includes all components required for precise temperature control of your sample with the RCT basic magnetic stirrer.

Stand for safe positioning

This complete solution includes a stand rod together with an extension arm and a boss head clamp. They ensure the correct and safe positioning of the PT 1000 temperature sensor, which is also included in the delivery, because it should always be located outside the drum created during stirring and should be immersed in the medium to a depth of at least 20 mm. Thanks to the stand, the position of the temperature sensor is precisely adapted to the reaction vessel and the level in vertical and horizontal alignment.

Multifunctional silicone cover

In addition, the bundle includes a universal silicone cover for beakers with 600 and 1000 ml. It has integrated feedthroughs for the temperature sensor. The chemically highly resistant cover fulfills three functions at once: It is a splash guard, minimizes energy requirements when used as a lid, and reduces the noise that can occur when air is drawn in during rapid stirring.

Scope of delivery

H 16 V Support rod

BC 1000 Beaker cap

Magnetic stirring bar Set 30+40

Screw driver

RCT basic

PT 1000.60 Temperature sensor, stainless steel

H 38 Holding rod

H 44 Boss head clamp

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10011525&iLang=1&iCountry=840&filename=DataSheet_RCT_basic_ready-to-go_Solution.pdf https://www.ika.com/ika/pdf/flyer-catalog/RCT basic_brochure_22_08_EN_web.pdf

Technische specificaties

Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 20 l
Maximum load: 25 kg
Motor rating output: 9 W
Direction of rotation: right
Speed display set-value: LED
Speed display actual-value: LED
Speed adjustment: Turning knob
Speed range: 50 - 1500 rpm
Setting accuracy speed: 10 rpm
Stirring bar length: 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): +17 K
Heat output: 600 W
Temperature display set-value: LED
Temperature display actual-value: LED
Temperature unit: °C
Heating temperature range: Room temp. + device self heating - 310 °C
Heat control: Turning knob
Temperature setting range: 0 - 310 °C
Temperature setting resolution of heating plate: 1 K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium: 1 K
Adjustable safety circuit: 50 - 360 °C
Set-up plate material: Aluminium alloy
Set-up plate dimensions: Ø 135 mm
Sensor in medium detection: yes
Temperature measure range PT1000: -20 - 310 °C
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heating rate (1l H2O in H1500): 6.5 K/min
Heat control accuracy of heating plate (at 100°C): ±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±1 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.2 K
Dimensions (W x H x D): 160 x 85 x 270 mm
Weight: 2.4 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
RS 232 interface: yes
USB interface: USB-B
Voltage: 220 - 230 V
Frequency: 50/60 Hz
Power input: 650 W
Power input standby: 1.6 W
