Schudden Schudders tot 15 kg  RCT basic Synthesis Solution 250

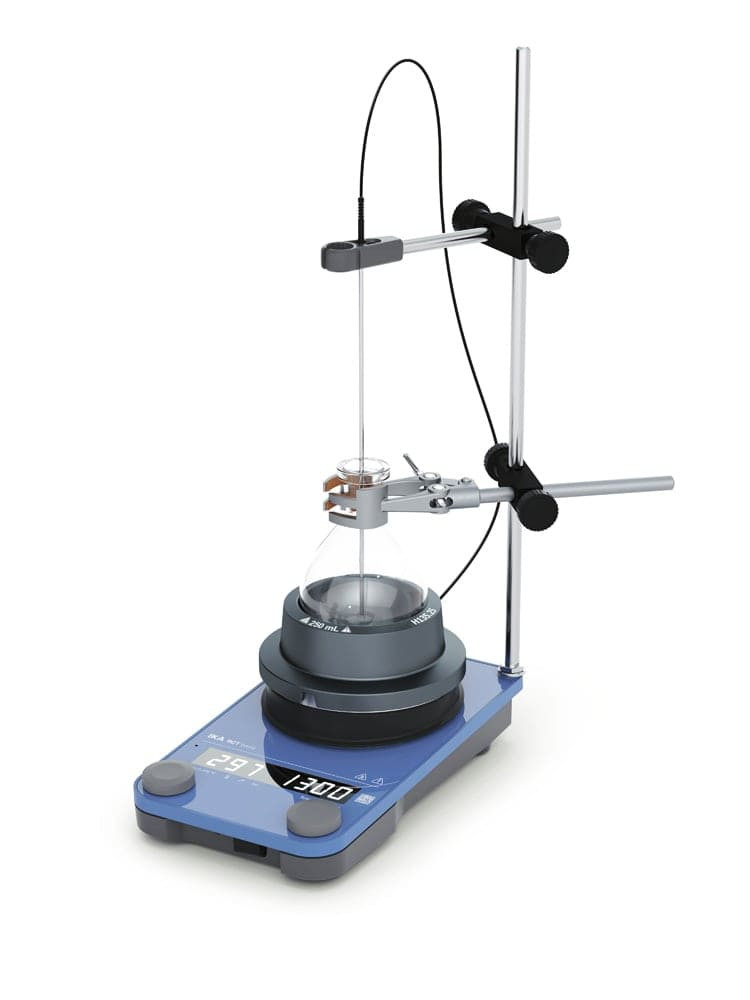

RCT basic Synthesis Solution 250

IKA - RCT basic Synthesis Solution 250

For safe synthesis in round-bottom flasks with 250 ml volume, there is our system solution RCT basic Synthesis Solution 250. The use of the synthesis blocks significantly reduces the hazard potential compared to the use of oil baths and simplifies handling and cleaning of the round bottom flasks. This also saves costs.

All components required for the operation of your synthesis are included:

A flask carrier for round-bottom flasks with a volume of 250 ml
a stand rod
two boss head clamps
a universal clamp for secure mounting of the synthesis flasks
a support rod for positioning the temperature sensor
elliptical magnetic stirring bars that perfectly adapt to the shape of the round-bottom flask

The synthesis attachment, made of solid anodized aluminum, can withstand temperatures of up to 300 °C. Optionally, an additional stand rod can be used to securely attach a reflux condenser. The rod is simply attached to the second receptacle on the RCT basic.

Scope of delivery

H 16 V Support rod

R 350 Universal clamp

Magnetic stirring bar Set 30+40

H 44 Boss head clamp (2 pcs.)

IKAFLON 25 ellipse (5 pcs.)

RCT basic

PT 1000.60 Temperature sensor, stainless steel

H 38 Holding rod

Screw driver

H 135.25 Flask carrier 250 ml without handle

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10011505&iLang=1&iCountry=840&filename=DataSheet_RCT_basic_Synthesis_Solution_250.pdf https://www.ika.com/ika/pdf/flyer-catalog/RCT basic_brochure_22_08_EN_web.pdf

Technische specificaties

Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 20 l
Maximum load: 25 kg
Motor rating output: 9 W
Direction of rotation: right
Speed display set-value: LED
Speed display actual-value: LED
Speed adjustment: Turning knob
Speed range: 50 - 1500 rpm
Setting accuracy speed: 10 rpm
Stirring bar length: 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): +17 K
Heat output: 600 W
Temperature display set-value: LED
Temperature display actual-value: LED
Temperature unit: °C
Heating temperature range: Room temp. + device self heating - 310 °C
Heat control: Turning knob
Temperature setting range: 0 - 310 °C
Temperature setting resolution of heating plate: 1 K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium: 1 K
Adjustable safety circuit: 50 - 360 °C
Set-up plate material: Aluminium alloy
Set-up plate dimensions: Ø 135 mm
Sensor in medium detection: yes
Temperature measure range PT1000: -20 - 310 °C
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heating rate (1l H2O in H1500): 6.5 K/min
Heat control accuracy of heating plate (at 100°C): ±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±1 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.2 K
Dimensions (W x H x D): 160 x 85 x 270 mm
Weight: 2.4 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
RS 232 interface: yes
USB interface: USB-B
Voltage: 220 - 230 V
Frequency: 50/60 Hz
Power input: 650 W
Power input standby: 1.6 W
