Schudden Schudders tot 15 kg  RO 10

RO 10

IKA - RO 10

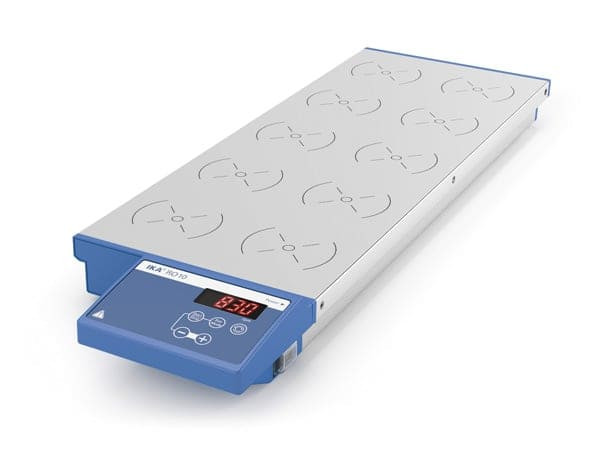

10-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

Adjustable reverse operation
Wear free magnetic coils
Error code display
Easy operation with touch keypad
Suitable for continuous operation
Speed range: 0 - 1200 rpm

Scope of delivery

RO 10

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3691000&iLang=1&iCountry=840&filename=DataSheet_RO_10.pdf

Technische specificaties

Number of stirring positions: 10
Stirring position distance: 90 mm
Speed deviation of individual stirring positions: 0 %
Stirring quantity max. per stirring position (H2O): 0.4 l
Maximum load: 10 kg
Speed adjustment: 10 RPM Steps
Speed range: 0 - 1200 rpm
Stirring bar length: 25 - 30 mm
Set-up plate material: stainless steel 1.4301
Set-up plate dimensions: 190 x 470 mm
Dimensions (W x H x D): 190 x 60 x 570 mm
Weight: 5 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 40
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 24 W
DC Voltage: 24 V=
Current consumption: 1000 mA

Order nummers
