Schudden Schudders tot 15 kg  ROLLER 10 basic

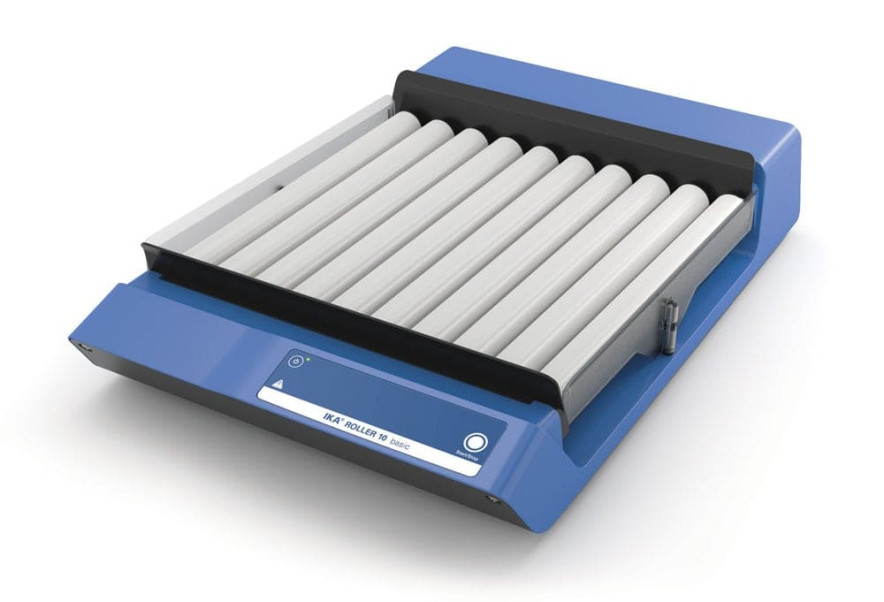

ROLLER 10 basic

IKA - ROLLER 10 basic

Roller shaker with 10 rolls provides smooth rocking and rolling action at a fixed speed. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.

Usable at 4 to 50 °C in incubators
Suitable for continuous operation
Removable rolls enable shaking of larger tubes
Easy operation with touch keypad
Shaking diameter: 24,5 mm (height)
Speed range: 30 rpm (fixed)

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=4012000&iLang=1&iCountry=840&filename=DataSheet_ROLLER_10_basic.pdf https://www.ika.com/ika/pdf/flyer-catalog/202005_Covid19_Flyer_A5_EN_IWW_USD_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/20230426_selection guide shaker_flyer_210x297mm_IWS_EN_websingle.pdf https://www.ika.com/ika/pdf/flyer-catalog/20220614_lifescience_brochure_210x280_IWS_EN_screen.pdf

Technische specificaties

Type of movement: rolling
Permissible ON time: 100 %
Speed min.: 0 rpm
Speed fix: 30 rpm
Speed display: none
Timer display: none
Operating mode: continuous operation
Rolls, number: 10
Rolls, Ø: 32 mm
Rolls, length: 327 mm
Working area length: 350 mm
Rolls, luffing angle fixed: 3 °
Rolls, max stroke at roll end: 16 mm
Rolls, changeable, removable: yes
Dimensions (W x H x D): 380 x 115 x 545 mm
Weight: 8.242 kg
Permissible ambient temperature: 4 - 50 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 24 W
DC Voltage: 24 V=
Current consumption: 1000 mA
