Schudden Schudders tot 15 kg  ROTAVISC lo-vi HELI Complete

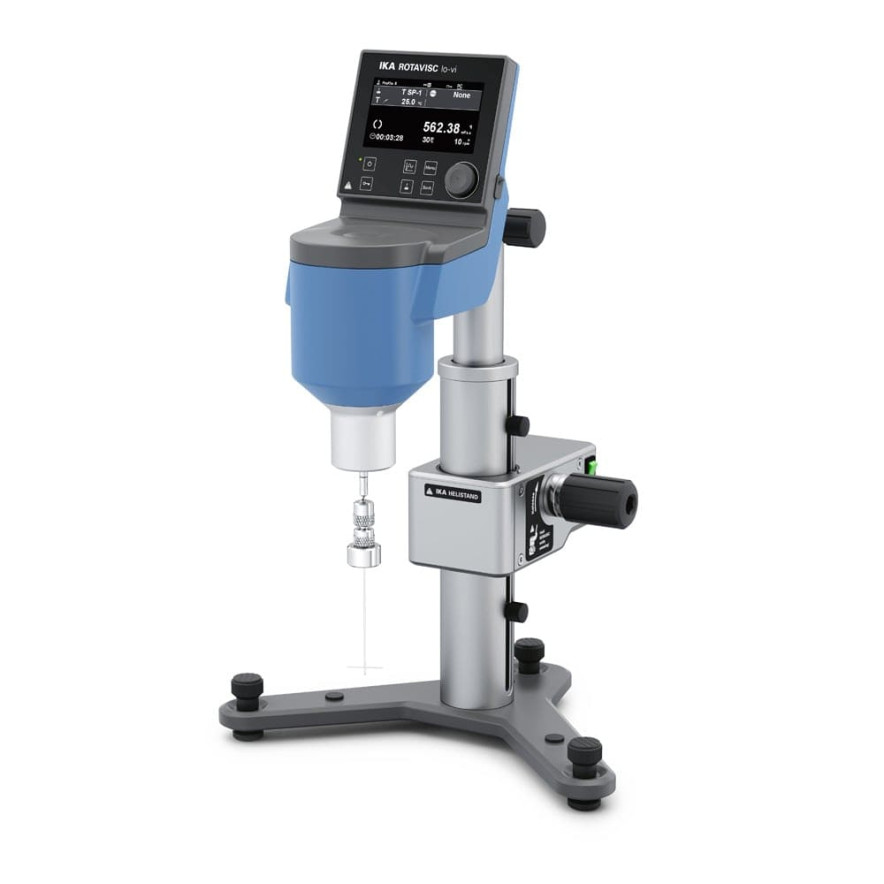

ROTAVISC lo-vi HELI Complete

IKA - ROTAVISC lo-vi HELI Complete

Regardless of a simple or demanding viscosity measurement - IKA ROTAVISC lo-vi HELI Complete determines the viscosity of low-viscosity liquids in all areas of application ranging from the laboratory to quality control.

The scope of delivery includes a standard spindle set (SP 1-SP 4), a protective bracket, temperature sensor and HELISTAND stand incl. T-spindle set.

Easy to operate

The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy

The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed

ROTAVISC is a viscometer, which offers stepless speed adjustment.

Viscosity measurement in motion

The motorized IKA HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample

IKA ROTAVISC lo-vi HELI Complete

Viscosity measuring range: 15 - 6.000.000 mPas

Scope of delivery

ROTAVISC lo-vi HELI Complete

SP set-1

PT 100.8

HELISTAND

T-SP-SET

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10013698&iLang=1&iCountry=840&filename=DataSheet_ROTAVISC_lo-vi_HELI_Complete.pdf https://www.ika.com/ika/pdf/flyer-catalog/201808_Rotavisc_Flyer_IWW_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20220223_Rotavisc_brochure_EN_IWS_websingle.pdf https://www.ika.com/ika/pdf/flyer-catalog/2020_07_Rotavisc_Appl Note_Ketchup_IWS_EN.pdf https://www.ika.com/ika/pdf/flyer-catalog/202011_Rotavisc_Appl Note_Calcium- and magnesium phosphate_IWS_EN.pdf https://www.ika.com/ika/pdf/flyer-catalog/202011_Rotavisc_Appl Note_mineral oil_IWS_EN.pdf https://www.ika.com/ika/pdf/flyer-catalog/202011_Rotavisc_Appl Note_varnish samples_IWS_EN.pdf https://www.ika.com/ika/pdf/flyer-catalog/2022_IWW_ROTAVISC_Calibration_Flyer.pdf

Technische specificaties

Viscosity Measuring Range: 6000000 mPas
Viscosity Accuracy (FSR): 1 %
Viscosity Repeatibility (FSR): 0.2 %
Spring torque: 0.0673 mNm
Guard rail: lo-vi
Measuring spindle series: SP set-1
Motor rating output: 4.8 W
Overload protection: yes
Direction of rotation: right
Display: TFT
Speed display: TFT
Speed range: 0.01 - 200 rpm
Setting accuracy speed: ±0.01 rpm
Speed adjustment: TFT
Torque display: yes
Torque measurement: yes
Timer: yes
Timer display: TFT
Time setting range: 0.017 - 6000 min
Temperature measurement resolution: 0.1 K
Working temperature display: TFT
Connection for ext. temperature sensor: PT 100
Graph function: yes
Operating mode: timer and continuous operation
Calibration option: yes
Touch function: yes
Pemitted density: 9999 kg/dm3
Working temperature: -100 - 300 °C
Fastening on stand: extension arm
Support rod diameter (with integrated fastening on stand): 16 mm
Telescope stand stroke: 142 mm
Plug-in coupling (Ø): 12 mm
Basic container volume: 600 ml
Stand: HELISTAND
Stroke max.: 61 mm
Diameter: 16 mm
Dynamic load: 3.2 kg
Dimensions (W x H x D): 351 x 629 x 372 mm
Weight: 7.1 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 40
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 24 W
Power input standby: 0.06 W
DC Voltage: 24 V=
Current consumption: 1000 mA
