Schudden Schudders tot 15 kg  RT 10

RT 10

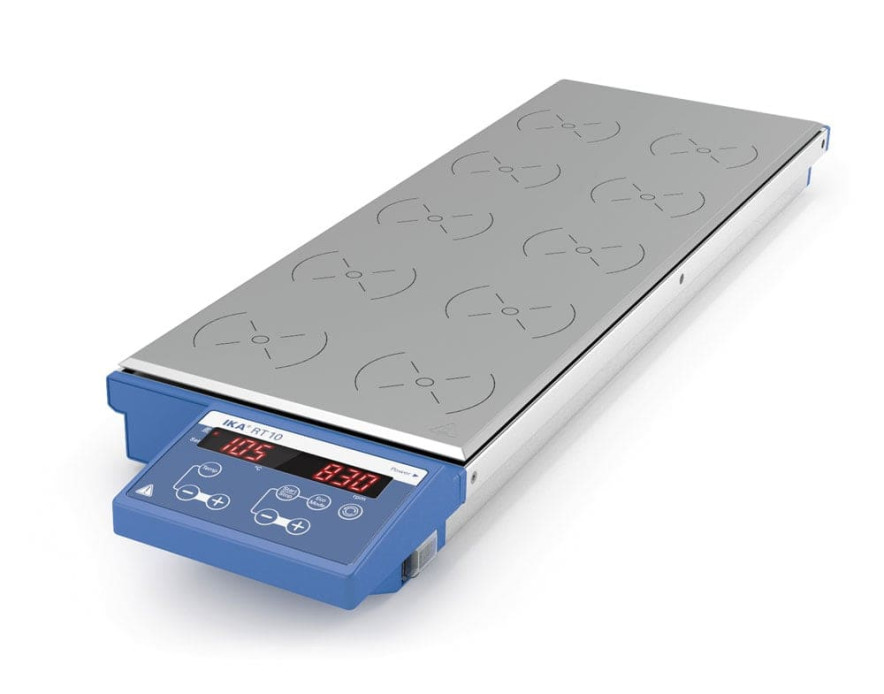

IKA - RT 10

10-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic

coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.

Homogeneous temperature distribution across the heating plate
Adjustable reverse operation
Eco-mode for a low self-warming of the surface
Wear free magnetic coils
Error code display
Easy operation with touch keypad
Suitable for continuous operation
Speed range: 0 - 1000 rpm

Scope of delivery

RT 10

Silicone mat for protection and optimized temperature distribution

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=3691100&iLang=1&iCountry=840&filename=DataSheet_RT_10.pdf https://www.ika.com/ika/pdf/flyer-catalog/202408_Integrated Safety_6 Page Flyer_IWW_EN_web_single.pdf

Technische specificaties

Number of stirring positions: 10
Stirring position distance: 90 mm
Speed deviation of individual stirring positions: 0 %
Stirring quantity max. per stirring position (H2O): 0.4 l
Maximum load: 10 kg
Speed adjustment: 10 RPM Steps
Speed range: 0 - 1000 rpm
Stirring bar length: 25 - 30 mm
Heat output: 375 W
Heating temperature range: room temp. - 120 °C
Heat control: LED
Adjustable safety circuit: 50 - 150 °C
Set-up plate material: Aluminium alloy
Set-up plate dimensions: 180 x 495 mm
Heating rate (1l H2O in H1500): 3 K/min
Dimensions (W x H x D): 190 x 60 x 610 mm
Weight: 7.5 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 40
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 395 W
Fuse: 1x T6.3A 250V
