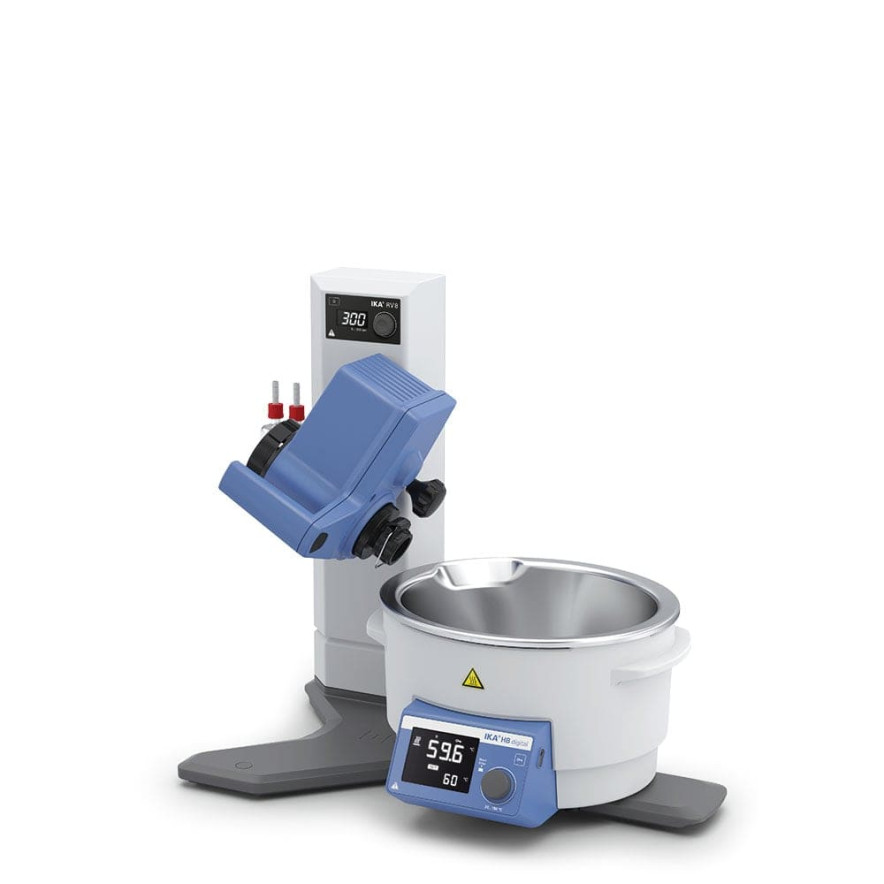

The rotary evaporator RV 8 is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.

heating bath with 4 l volume
integrated safety lift-out function in case of power failure
package includes Woulff bottle
water/oil heating bath with carrying handles
locking button for fixing heating bath temperature
clearly legible, glass-covered, black-and-white display panel
locking mechanism: red indicator shows unlocked position of the vapor tube
manual lift for precise positioning of the glassware
adjustable immersion angle
single-handed manual lift handling, suitable for left and right-handed operators
speed range: 5 - 300 min-1
low device voltage (24V) ensures user safety
flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
compatible with the entire range of IKA RV 10 glassware

Scope of delivery

RV 8 S099

HB digital S099

RV 05.10 Balljoint clamp

RV 10.73 Vapor tube (NS 24/40)

RV 10.8001 Seal

RV 3.4 Woulff bottle
