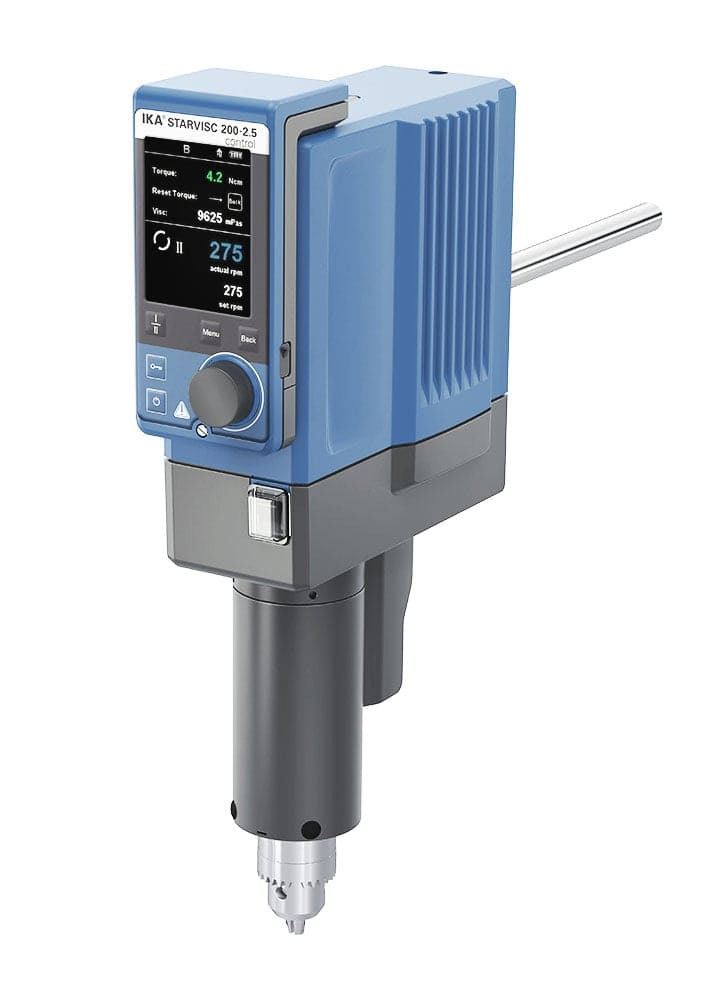

STARVISC 200-2.5 control

IKA - STARVISC 200-2.5 control

Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired.

High-precision measurement

STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.

Viscosity calculation

A viscosity calculation can be carried out immediately via a userfriendly menu.

Removable control unit

The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.

Powerful stirrer

Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer.

Scope of delivery

STARVISC 200-2.5 control

WICO STARVISC 200-2.5 C

WH11

Protective cover for WiCo contact

WiCo power supply

H 67.60 Temperature sensor, stainless steel

USB Cable - USB A to Micro-B, 2 m

USB cable micro A – micro B 2.0

Offset screwdriver

Screw driver

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=25003604&iLang=1&iCountry=840&filename=DataSheet_STARVISC_200-2.5_control.pdf https://www.ika.com/ika/pdf/flyer-catalog/201808_Starvisc_Flyer_IWW_EN_screen.pdf

Technische specificaties

Stirring quantity max. per stirring position (H2O): 100 l
Motor rating input: 130 W
Motor rating output: 84 W
Motor principle: Brushless DC
Speed display: TFT
Speed range: 0/6 - 2000 rpm
Intermittent operation: yes
Viscosity max.: 100000 mPas
Output max. at stirring shaft: 84 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 200 Ncm
Torque I max.: 200 Ncm
Torque II max.: 40 Ncm
Speed range I (50 Hz): 6 - 400 rpm
Speed range II (50 Hz): 30 - 2000 rpm
Speed range I (60 Hz): 6 - 400 rpm
Speed range II (60 Hz): 30 - 2000 rpm
Speed adjustment: stepless
Setting accuracy speed: ±1 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Deviation of speed measurement n < 300rpm: ±3 rpm
Stirring element fastening: chuck
Connection for ext. temperature sensor: PT1000
Temperature display: yes
Plug-in coupling (Ø): 10 mm
Chuck range diameter: 0.5 - 10 mm
Fastening on stand: extension arm
Extension arm diameter: 16 mm
Extension arm length: 220 mm
Torque display: yes
Nominal torque: 2 Nm
Torque measurement: yes
Deviation of torque measurement I: ±2.5 Ncm
Deviation of torque measurement II: ±2.5 Ncm
Timer: yes
Timer display: TFT
Time setting range: 1 - 6000 min
Temperature measuring range: -10 - +350 °C
Temperature measurement resolution: 0.1 K
Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K
Housing material: alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.: 150 m
Dimensions (W x H x D): 91 x 395 x 231 mm
Weight: 5.9 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 40
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 100 - 115 V
Frequency: 50/60 Hz
Power input: 130 W
