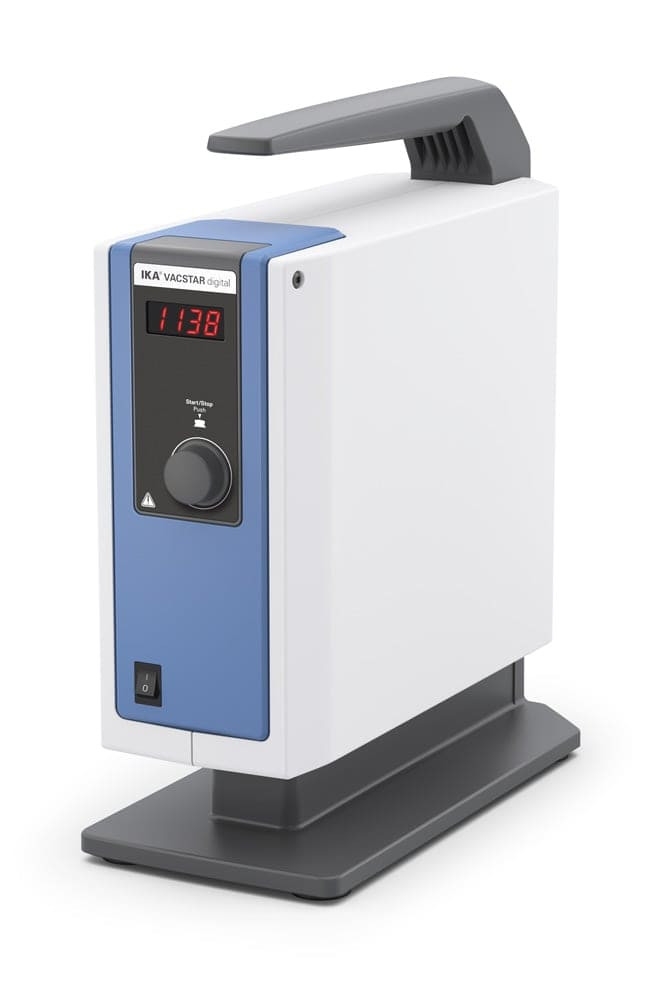

VACSTAR digital

IKA - VACSTAR digital

The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.

Automated processes are controlled with the vacuum controller VC 10, which is available as an accessory. An analogue cable which is required for connecting pump and controller is included in the delivery of the pump. Additionally it is recommended to use the VSE 1 vacuum safety emmission. It prevents that solvents are released into ambient air.

The Vacstar digital is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.

Scope of delivery

Vacuum hose (1 m)

Silencer

USB A-B Cable

connecting cable

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=20016236&iLang=1&iCountry=840&filename=DataSheet_VACSTAR_digital.pdf https://www.ika.com/ika/pdf/flyer-catalog/201808_Vacstar_Flyer_IWW_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20220720_IKA_success stroy_EN_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240905_Lab_Essentials_chemical_industy_A4_Flyer_IWS_websingle.pdf

Technische specificaties

Pump rate max. (50/60Hz): 22 l/min
Final pressure: 2 mbar
Suction levels: 4
Cylinder: 4
Connection diameter suction side: 8 mm
Connection diameter pressure side: 8 mm
Input pressure: 2 - 1030 mbar
Two-point control: yes
Analog speed vacuum control: yes
Speed adjustment: Turning knob
Speed range: 285 - 1200 rpm
Display: LED
Noise at low. pressure: 54 dB(A)
Material in contact with medium: PTFE, FFPM, PPS, NBR
Housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 150 x 375 x 370 mm
Weight: 11.5 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class according to DIN EN 60529: IP 20
RS 232 interface: yes
USB interface: USB-B
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 130 W
Power input standby: 3 W
