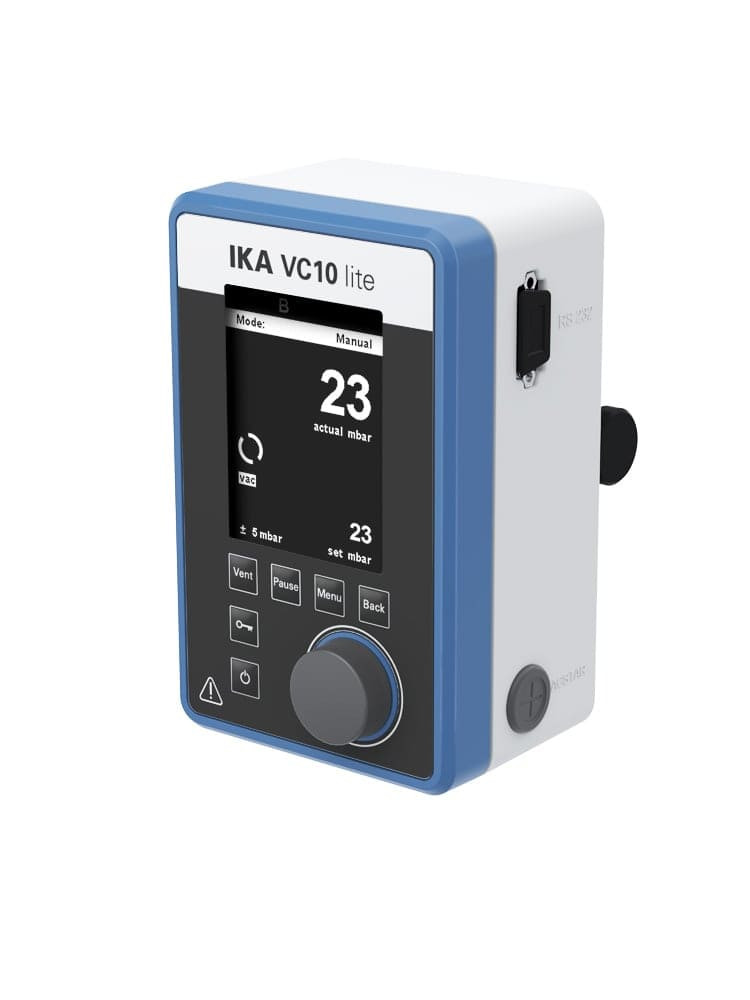

Speed-controlled, universal vacuum controller for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

VC 10 lite is compatible with the vacuum pumps VACSTAR digital and VACSTAR lite. A cable connection between pump and controller is required.

Manual and programmable mode available.

Features:

Valve cleaning function for long service life
High energy efficiency thanks to device-to-device communication: control of the circulator by connecting the vacuum controller with PC 1.3 data cable (available as accessory)
Integrated ventilation valve for simple pressure equalization and aeration with inert gas after process completion
VENT short key button allows pressure equalization during a running process
Program function: up to ten user-defined programs can be saved, with up to ten pressure/time sequences
USB / RS232 interfaces for connection with the laboratory software labworldsoft®
Electronic control system for improved process efficiency and higher solvent recovery rate
High energy efficiency thanks to device-to-device communication (vacuum controller to recirculating chiller)

For additional safety for users and environment, the use of the VSE 1 vacuum safety emission condenser is recommended, which prevents solvents from being released into the room air. The VSE 1 is available as an accessory.

Scope of delivery

VC 10 lite

USB Cable - USB A to Micro-B, 2 m
