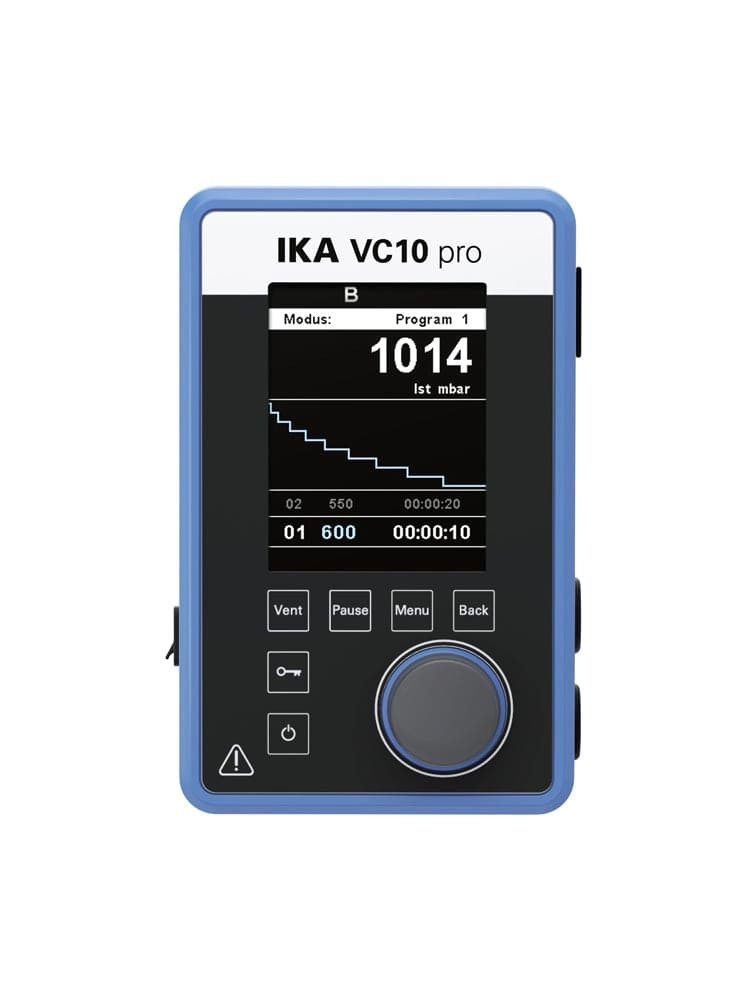

Valve-controlled, universal vacuum controller for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

VC 10 pro can be used with all standard vacuum sources. The use of multiple controllers with one vacuum source is possible.

Features:

On/off regulation of multiple vacuum sources
Automatic boiling point detection
Integrated solvent library: Helps to set the correct parameters for example in evaporation processes with rotary evaporators
Graph function
Connection for external temperature sensor: temperature value is shown on display
Valve cleaning function for long service life
Integrated ventilation valve for simple pressure equalization and aeration with inert gas after process completion
VENT short key button allows pressure equalization during a running process
Program function: up to ten user-defined programs can be saved, with up to ten pressure/time sequences
USB / RS232 interfaces for connection with the laboratory software labworldsoft®
Electronic control system for improved process efficiency and higher solvent recovery rate
High energy efficiency thanks to device-to-device communication (vacuum controller to recirculating chiller)

For additional safety for users and environment, the use of the VSE 1 vacuum safety emission condenser is recommended, which prevents solvents from being released into the room air. The VSE 1 is available as an accessory.
