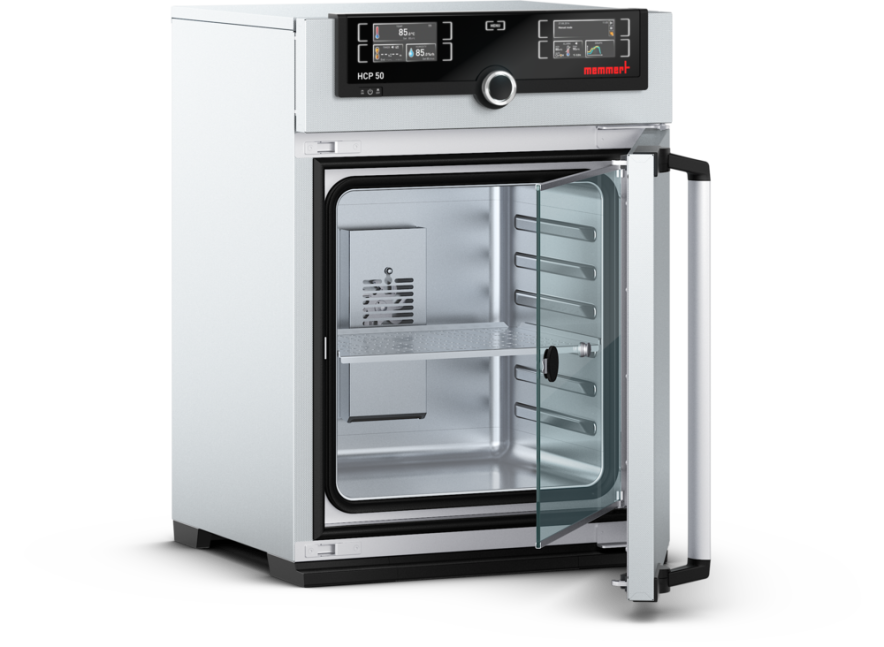

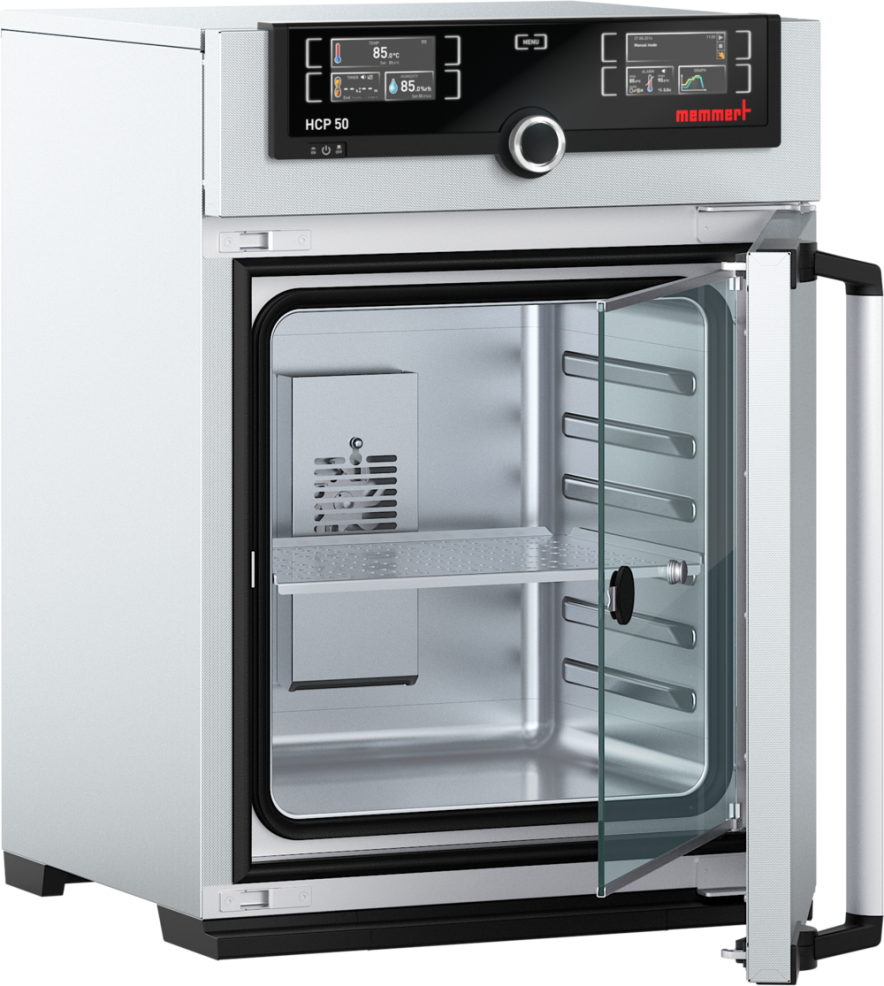

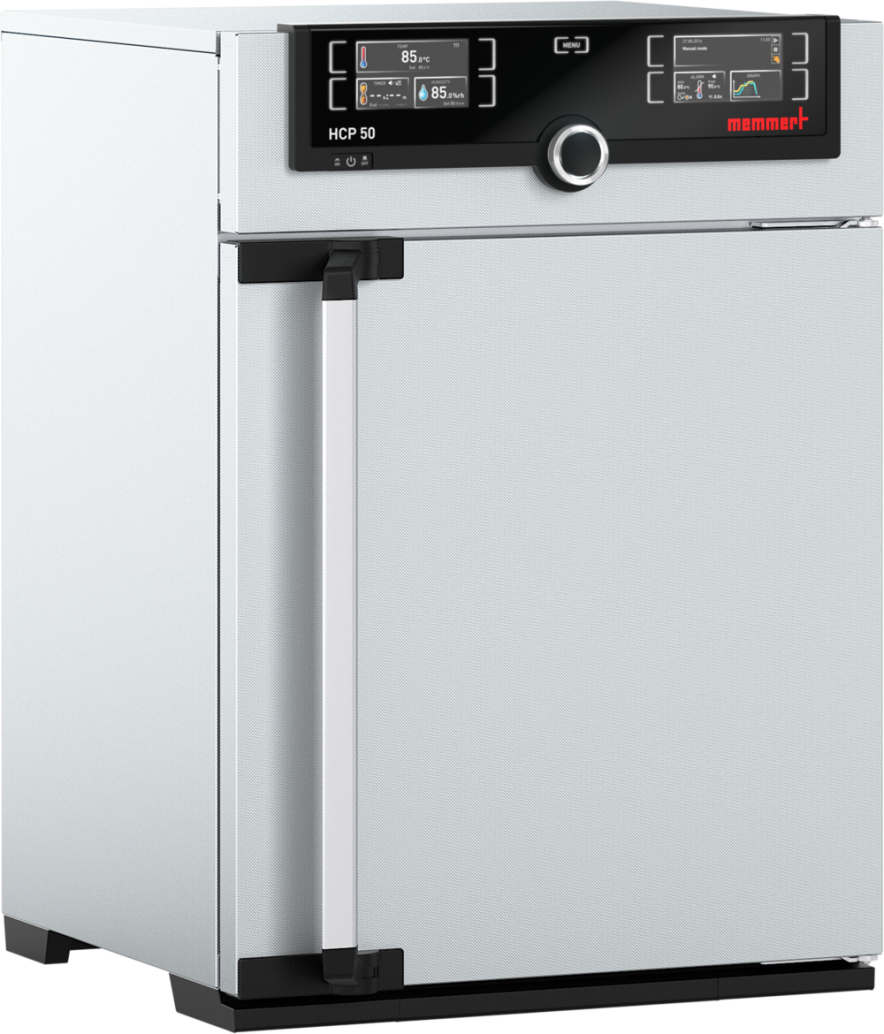

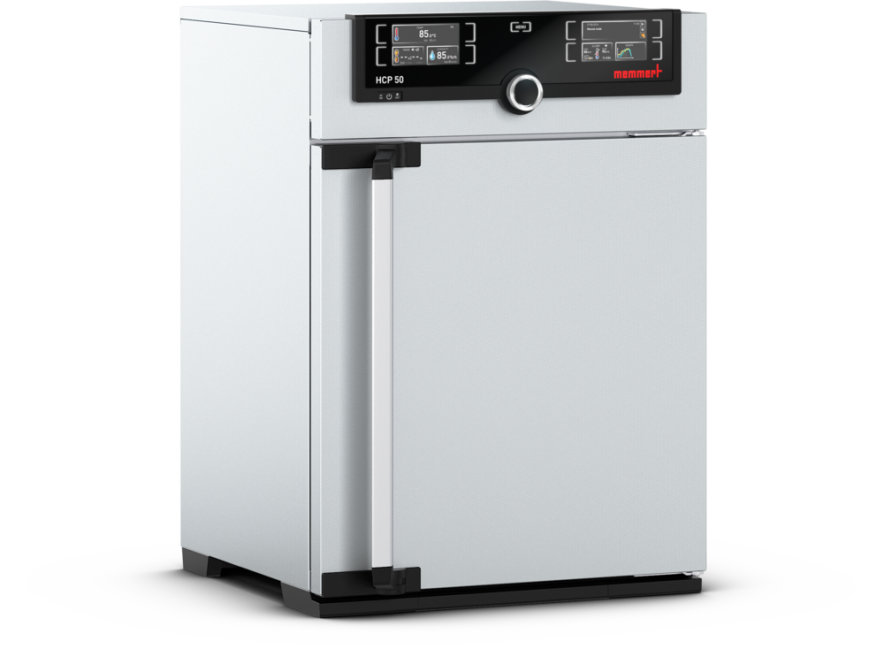

Klimaattesten Verwarming Vochtigheidskamer HCP50
Vochtigheidskamer HCP50
Perfecte klimaatsimulatie in een HCP-vochtigheidskamer
Behoeft jouw toepassing een temperatuur tussen +8 °C boven omgevingstemperatuur en +90 °C met regelbare luchtvochtigheid? Dan is de HCP-vochtigheidskamer van Memmert niet te verslaan op vlak van prijs, performantie en comfort.
Via een geavanceerde sturing stel je de parameters in, waarmee je een gecontroleerde en condensvrije omgeving verkrijgt voor een optimale klimaatsimulatie (met verwarming aan alle zes zijden). De HCP-vochtigheidskamer staat garant voor betrouwbare, reproduceerbare en documenteerbare resultaten in bouwkundige toepassingen, elektronica, biologie, zoölogie en plantkunde.
De perfecte verhouding tussen temperatuur en relatieve vochtigheid
Niet iedere klimaatkast is identiek. Om te kunnen achterhalen welke variant voor jou de juiste keuze vormt, komt het erop aan de vochtigheidsgraad van het materiaal, de omgevingscondities en de ratio temperatuur/relatieve vochtigheid in rekening te nemen. Binnen het bereik met aangeduide verhouding temperatuur/relatieve vochtigheid garandeert de HCP een permanente, condensvrije werking (bij omgevingstemperatuur van 22°C +/- 3 K, RV <50%).
Label/Normering
Technische specificaties
Temperature
| Working-temperature range | +7 above ambient temperature up to +90 °C |
|---|---|
| Setting temperature range | +18 to +90 °C |
| Setting accuracy temperature | 0.1 °C |
| Temperature sensor | 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error |
Humidity
| Humidity Control | Active microprocessor control for humidifying and dehumidifying (20 – 95 % rh), incl. digital indication and auto-diagnostic system ensures even more rapid reaching of set humidity and very short recovery times. Humidity supply with water (only for demineralised water with a conductivity of 5 to 10 μS/cm and a pH value between 5 and 7; from an external tank) by a self-priming pump; integral bacteria block by generating hot steam, dehumidifying via sterile filter |
|---|---|
| Setting range active humidity control | 20 to 95 % rh and rh-Off |
| Setting accuracy humidity | 0.5 % rh |
Control technology
| ControlCOCKPIT | TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. |
|---|---|
| Language setting | German, English, Spanish, French, Polish, Czech, Hungarian |
| adjustable parameters | temperature (Celsius or Fahrenheit), relative humidity, programme time, time zones, summertime/wintertime |
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
| Calibration | three freely selectable values each, temperature and humidity |
Communication
| Interface | Ethernet LAN, USB |
|---|---|
| Documentation | programme stored in case of power failure |
| Programming | AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
| AutoSAFETY | additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature |
|---|---|
| Autodiagnostic system | integral fault diagnostics for temperature and humidity control |
| Alarm | visual and acoustic |
Heating concept
| 6 sides | large-area multi-function heating system on four sides with additional door and back heating to avoid condensation |
|---|
Standard equipment
| Works calibration certificate | Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh |
|---|---|
| Entry port | Entry port (silicone), 40 mm clear diameter, for introducing connections, moisture tight, can be closed by silicone stopper, at the back, centre left |
| Door | Additional heated inner glass door |
| Door | fully insulated stainless steel door with 2-point locking (compression door lock) |
| Internals | 1 perforated stainless steel shelf/shelves |
Stainless steel interior
| Dimensions | w(A) x h(B) x d(C): 400 x 425 x 330 mm (d less 35 mm for fan) |
|---|---|
| Interior | W.-St. 1.4301 (ASTM 304) |
| Volume | 56 l |
| Max. number of internals | 5 |
| Max. loading of chamber | 75 kg |
| Max. loading per internal | 15 kg |
Textured stainless steel casing
| Dimensions | w(D) x h(E) x d(F): 559 x 795 x 521 mm (d +56mm door handle) |
|---|
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 1520 W |
|---|---|
| Voltage Electrical load | 115 V, 50/60 Hz approx. 1520 W |
Ambient conditions
| Ambient temperature | 10 °C to 30 °C |
|---|---|
| Set Up | The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm. |
| Humidity rh | max. 70 %, non-condensing |
| Altitude of installation | max. 2,000 m above sea level |
| Overvoltage category | II |
| Pollution degree | 2 |
Packing/shipping data
| Transport information | The appliances must be transported upright |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | w x h x d: 730 x 950 x 640 mm |
| Net weight | approx. 55 kg |
| Gross weight carton | approx. 74 kg |
