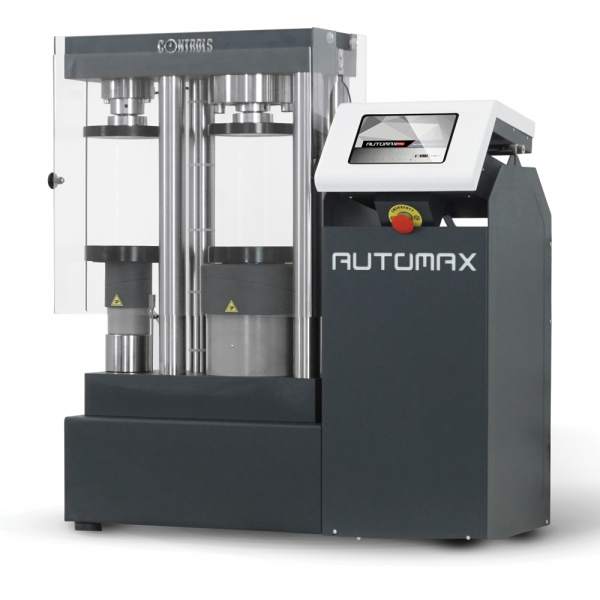

300 and 300_15 kN AUTOMAX PRO, Top-of-the-Range Automatic Compression-Flexural Cement Testers

300 and 300/15 kN AUTOMAX PRO, Top-of-the-Range Automatic Compression-Flexural Cement Testers

Description

Frames
These machines, featuring a very rigid four columns frame, have been designed for the testing of the cement prism either in compression or in flexure.
Four versions are available:
65-L27F1x
models, double testing chamber, 15/300 kN cap., inbuilt flexural jig for 40x40x160 cement prisms and compression apparatus for portions of 40x40x160 mm prisms broken in flexure.
Conforming to EN 196-1, 1015-11.

65-L28F1x
models, double testing chamber, 15/300 kN  cap., fitted with round platens for testing in compression and flexion cement, mortar, resins and other materials.
Conforming to EN 196-1, 1015-11, ASTM C109, C348, C349 using the suitable accessories.

65-L18F1x
models, 300 kN cap., fitted with round platens for testing cement, mortar, resins and other materials and other materials.
Conforming to  EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories.

65-L38F1x
models, 300 kN cap., fitted with round platens for testing cement, mortar, resins and other materials featuring increased vertical and horizontal daylights.
Conforming to  EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories.

All models are fitted with high accuracy load cell/s or load measurement.

Models fitted with compression platens 165 mm dia. (65-L28F1x, 65-L18F1x) have a vertical span of 200 mm hence can house all standard accessories for cement and mortar testing (see accessories) and furthermore can be used to test other specimens directly on the standard compression platens adjusting, if necessary, the vertical daylight, with the suitable distance pieces (see accessories).
Model 65-L38F1x features increased vertical and horizontal dayligths to allow different kind of test, for example it's possible to perform flexural test on concrete beams with suitable accessory.
Compression platens can be supplied complete with Platen surface hardness certificate.

Automax PRO, Automatic power and control system
See technical specifications.

Safety features
Includes: Max. pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front door and rear transparent fragment guard on request.


AUTOMAX PRO is CONTROLS’ new top-of-the-range Compact-Line compression machine and is the first choice for automatic standard failure tests.

  • Huge boost in efficiency and error elimination: LinK-LAB – Integrated testing station solution for seamless connection and data inputs from many ancillary devices for dimensional measurement, weight, bar code, etc.
  • Fully automatic – time saving: Full test-cycle automation maximizes productivity and ensures tests are performed accurately according to pre-set methods, eliminating operator variables.
  • Highly accurate and energy saving: Our DC motor technology quietly and efficiently delivers super accurate load control at both low-speed and low-loads.
  • Intuitive, quick and simple operation: The integrated control system features an intuitive 7” color graphical display, which works like a tablet or smart-phone, and makes AUTOMAX PRO quick and simple to operate.
  • Standards compliant – peace of mind: Hardware and firmware are in total compliance with all the main international testing standards
  • Multilingual functionality: The system is available in multiple languages and is fully compatible with non-Latin characters for Chinese, Cyrillic (and more).

Label/Normering

  ASTM C109‰EN 196-1‰ASTM C348‰ASTM C349

Technische specificaties

Order nummers

65-L18F12: AUTOMAX PRO automatic compression machine, 300 kN cap. for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories. - High-stiffness 4 columns frame - High accuracy load cell for load measurement - Compression platens 165mm diameter - Dayligths: horizontal 220mm, vertical 200mm - Piston travel 50 mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4 / class A to ASTM E74 starting from 30kN. Special calibration from 3 kN available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication - Wi-Fi or GSM module available as option - Integrated printer available on request - 8 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels230V/50-60Hz/1Ph 65-L18F14: AUTOMAX PRO automatic compression machine, 300 kN cap. for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories. - High-stiffness 4 columns frame - High accuracy load cell for load measurement - Compression platens 165mm diameter - Dayligths: horizontal 220mm, vertical 200mm - Piston travel 50 mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4 / class A to ASTM E74 starting from 30kN. Special calibration from 3 kN available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication - Wi-Fi or GSM module available as option - Integrated printer available on request - 8 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels110V/60Hz/1Ph

Accessoires & toebehoren



50-C0050/HRD5:

Supply of L27xxx compression machine complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.

65-L0050/HRD:

Supply of the machine cement machines/frames L28xxx complete with traceable certificate of hardness of testing platens surfaces (one upper and one bottom platen certification included). Available only for ordering with machine.

50-C0050/CAL: Special calibration of load digital readout unit assuring class 1 from 1% of testing machine full scale (maximum load) 50-C0050/CAL5: Special calibration of load digital readout unit assuring class 1 from 5% of testing machine full scale (maximum load) 50-C0050/1CAL:

Special calibration of load digital readout unit assuring class 1 from 0.1% of testing machine fullscale (Class 1 accuracy from 0.5 to 500 kN). Available only for C92P1x machines.

65-L38F12: AUTOMAX PRO automatic compression machine, 300 kN cap. for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories. - High-stiffness 4 columns frame - High accuracy load cell for load measurement - Compression platens 165mm diameter - Dayligths: horizontal 260mm, vertical 350mm - Piston travel 50 mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4 / class A to ASTM E74 starting from 30kN. Special calibration from 3 kN available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication - Wi-Fi or GSM module available as option - Integrated printer available on request - 8 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels230V/50-60Hz/1Ph 65-L38F14: AUTOMAX PRO automatic compression machine, 300 kN cap. for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories. - High-stiffness 4 columns frame - High accuracy load cell for load measurement - Compression platens 165mm diameter - Dayligths: horizontal 260mm, vertical 350mm - Piston travel 50 mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4 / class A to ASTM E74 starting from 30kN. Special calibration from 3 kN available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication - Wi-Fi or GSM module available as option - Integrated printer available on request - 8 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels110V/60Hz/1Ph 65-L27F12: AUTOMAX PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement/mortar prisms 40x40x160mm.Conforming to EN 196-1, 1015-11. - High-stiffness 4 columns frame - High accuracy load cells for load measurement - Incorporating load devices: 40x40mm platens and flexural jig - Dayligths: horizontal 220mm, vertical 50/50mm - Piston travel 30/50mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4/ class A to ASTM E74 starting from 30kN for 300kN chamber and from 1.5kN for 15kN chamber. Special calibration from 3kN for 300kN chamber and from 0.5kN for 15kN chamber available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication - Wi-Fi or GSM module available as option - Integrated printer available on request - 8 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels230V/50-60Hz/1Ph 65-L27F14: AUTOMAX PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement/mortar prisms 40x40x160mm.Conforming to EN 196-1, 1015-11. - High-stiffness 4 columns frame - High accuracy load cells for load measurement - Incorporating load devices: 40x40mm platens and flexural jig - Dayligths: horizontal 220mm, vertical 50/50mm - Piston travel 30/50mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4/ class A to ASTM E74 starting from 30kN for 300kN chamber and from 1.5kN for 15kN chamber. Special calibration from 3kN for 300kN chamber and from 0.5kN for 15kN chamber available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication - Wi-Fi or GSM module available as option - Integrated printer available on request - 8 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels110V/60Hz/1Ph 50-SW/DM:

DATAMANAGER PC software compatible with DIGIMAX, PILOT, AUTOMAX, PILOT PRO, AUTOMAX PRO and PRO-M. Suitable for remote control of the system (except DIGIMAX), data acquisition, processing and filing. LAN cable included.

65-L28F12:

AUTOMAX PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement, mortar, resin and other materials. 230 V, 50-60 Hz, 1 Ph

50-Q60P/PRINT:

Upgrading the AUTOMAX PRO and PILOT PRO series to incorporate a serial graphic printer in the rear panel allowing load/time plot (printing available for languages with latin charcters only)

65-L1000/20: Distance piece 165 mm dia. x 20 mm height. 65-L1000/30: Distance piece 165 mm dia. x 30 mm height. 65-L1000/40: Distance piece 165 mm dia. x 40 mm height. 65-L1000/68: Distance piece 165 mm dia. x 68 mm height. 50-KLAB/E:

LinK-LAB Enterprise laboratory connectivity package for machines controlled by PC via DATAMANAGER Software.

65-L28F14:

AUTOMAX PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement, mortar, resin and other materials. 110 V, 60 Hz, 1 Ph

: 65-L0050/P: Safety guard opening switch for L type frames and machines 65-L1800/P: Transparent rigid safety guard for testing frame series 65-L18xxx and 65-L58Z10. 65-L2701/P: Transparent rigid safety guard for testing frame series 65-L27xxx. Suitable only for models fitted with load cells 65-L2800/P: Transparent rigid safety guard for testing frame series 65-L28xxx.
