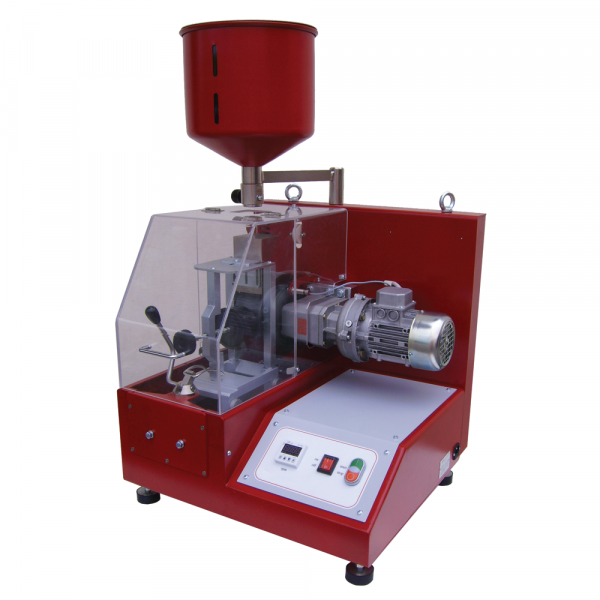

Abrasion Testing Machine

Abrasion Testing Machine

Description

This machine has been developed for determining the resistance to abrasion/wear of natural stones and concrete products. Easy to use, electronic control of the disc speed with auto shut-off of the machine at the selected number of revolutions. The abrasion disk wheel is 70 mm thick. Supplied complete with 5 kg of white corundum FEPA grit size 80 and calibration sample (Boulonnais marble).
The machine can also be converted, by the conversion kit 48-D0471/K, for abrasion test conforming to EN 1344, 10545-6, 14617-4, 12808-2, UNE 127024.
See accessories.
The standard version conforms to EN 1338, 1339, 1342, 14157, 1340, 1341.



  • Transparent protection cover
  • Control flow abrasive outlet according to the Standard
  • Supplied complete with sample calibration made in Boulonnaise marble, 115x115x50 mm
  • Digital counter unit

Label/Normering

  EN 1338‰EN 1339‰EN 1340‰EN 14157‰EN 1341‰EN 1342‰EN 12808-2‰EN 14617-4

Technische specificaties

Technical Specifications

  • Power: 500 W
  • Overall dimensions: 620x670x850 mm
  • Weight approx.: 85 kg

Order nummers

48-D0471: Abrasion testing machine for cement, concrete or natural stone. Conforming to EN. 230V,50-60HZ 1ph 48-D0471/Z:

Abrasion testing machine. 110 V, 60 Hz, 1 ph

Accessoires & toebehoren



48-D0471/1: Abrasive white corundum sand 80 grade for EN 1342 Pack of 25 kg 48-D0471/K: Conversion kit to perform the abrasion test on clay pavers.Conforming to EN 1344, 10545, 14671-4,12808-2, UNE 127024. Comprinsing counterweight, hopper, abrasion disk dia. 200x10mm and silica and silica calibration plate
