Materiaaltesten Fundering Adiabatic concrete calorimeter
This effect is encountered particularly in massive concrete castings, due to the limited heat dispersion, leading the behaviour closer to adiabatic conditions.
The isothermal and semi-adiabatic testing methods are consequently less representative and most commonly used for mortars and cement pastes, basically to compare the behaviour of different types of cements.
The adiabatic method is the only method allowing correct evaluation of the heating process inside massive concrete works.
CONTROLS is the only testing equipment manufacturer who developed in the late 80s, in partnership with the main research laboratories, the first industrial adiabatic concrete calorimeter, so far having been limited to few prototypes in reasearch centers.
Nowadays the equipment has been completely renewed with the latest technologies, including new electronics and PC software, ensuring high testing accuracy.
Working principle
A fresh sample is positioned in a calorimeter cell ensuring adiabatic conditions by avoiding heat exchange with the environment. Since this condition cannot be obtained in practice in a passive system (no insulating material is infinitely non-conductive) the temperature of the room sorrounding the specimen is forced to be equal (or slightly lower by max 0.5°C) to the temperature of the sample during all the test.
Two PT 100 temperature sensors are used, one positioned in the sample and one in the calorimeter cell. The temperature measurements are used by a PID closed loop control system to ensure a stable sample conditioning according to the Standard requirements.
The equipment consists of:

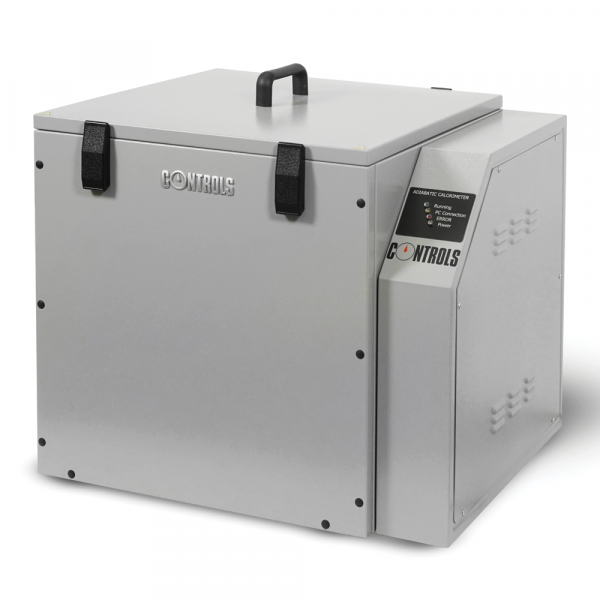

- external insulating enclosure

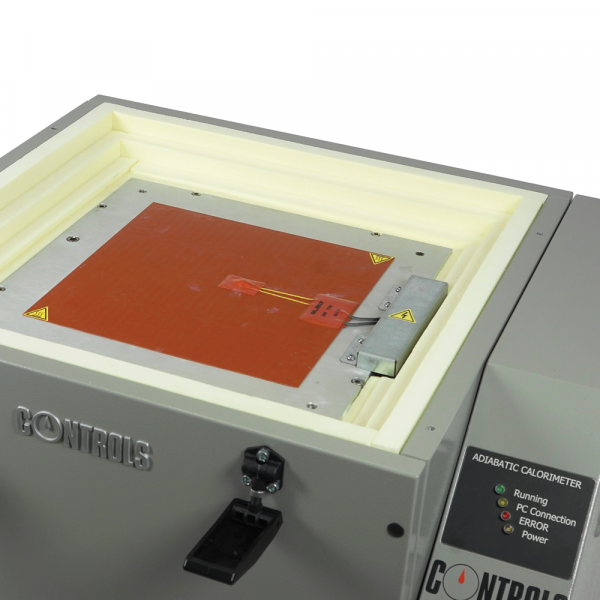

- calorimeter cell
- two platinum PT 100 temperature sensors measuring sample and cell temperatures
- 150mm polystyrene cubic mould
- calorimeter cell conditioning system controlled by a PID closed loop system

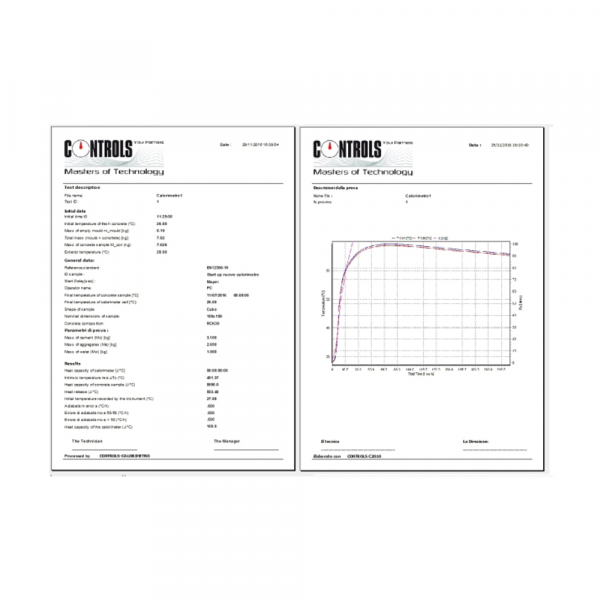

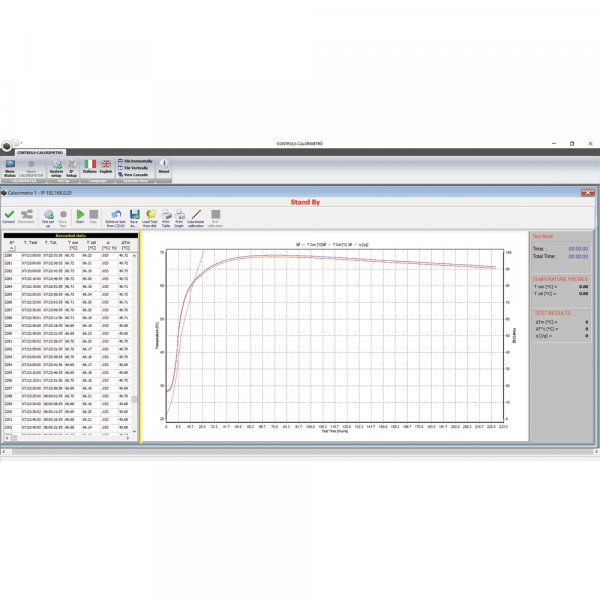

- PC software (PC not included)
EN 12390-15
54-C2010/A1: Spare mould for adiabatic calorimeter 82-P8000/PC: High specifications desktop PC with LCD monitor. Operating system: MS Windows pre-installed. Top brand model fully covered by international warranty and serviced by global after sales network. 110-240 V, 50-60 Hz, 1 Ph 54-C2010/8:
Set of 3 spare copper tubes
54-C2010/5:
Spare convective paste, 50 g
