Air Compressors

Air Compressors

Description

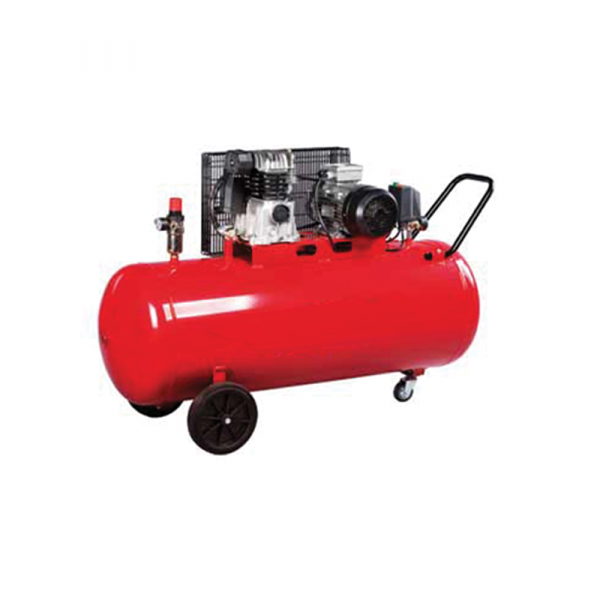

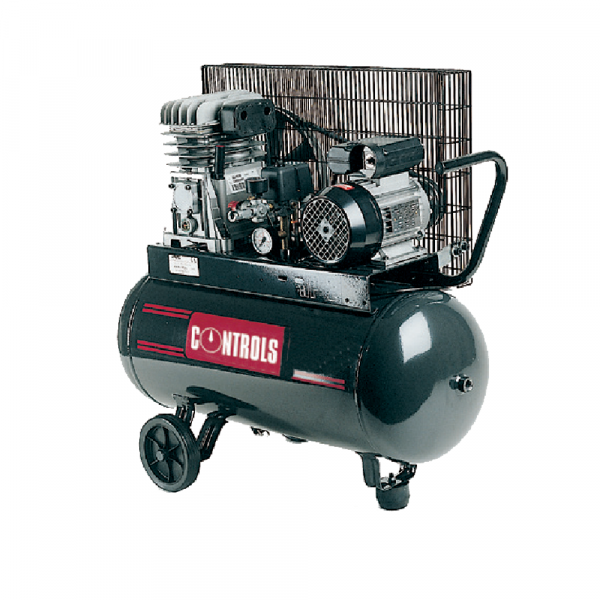

Both models are ideal for laboratory use. The 86-D2015/A model is particularly suited for use with the DYNATRIAX Dynamic triaxial system.


Label/Normering

Technische specificaties

Technical Specifications

Models86-D2015
 		86-D2015/Y
86-D2015/Z		86-D2015/A
86-D2015/AZ
Max. Pressure10 bar9 bar10 bar
Max. Pressure
(continuous use)		8 bar8 bar8 bar
Tank capacity50 liters50 liters200 liters
Air flow14 m3/h 33,4 m3/h
Power1.5 kW 4 kW
Overall dimensions
 (mm)		850x355x675(h) 1600x520x1050(h)
Weight approx.:44 kg 125 kg



Order nummers

86-D2015: Laboratory air compressor. 8 BAR max constant pressure. 230V/50Hz/1Ph 86-D2015/A: Air compressor 10 bar maximum pressure (8 bar continuos working pressure) 4Kw, power, 33,4 mc/hour air flow, 200lt tank capacity. 400V/50Hz/3Ph

Accessoires & toebehoren



86-D2064:

Rubber tube dia 6.5 x 16.5 mm 2 m long, for vacuumpumps

86-D2019: Air treatment unit comprehending: air dryer, particle filter 5M, oil filters 1M, coalescence filter 0.01M. 230V/50-60Hz/1Ph 86-D2060: Rubber tube dia 5 x 13 mm 2 m long 86-D2062: Rubber tube dia 8 x 12 mm 6 m long 86-D2070: Rubber stoppers set86-D2015/Z: Laboratory air compressor. 8 BAR max constant pressure. 110V/60Hz/1PH 78-PV0250/7: Laboratory air compressor. 220-240V/50Hz/1Ph 86-D2018: Laboratory air compressor, 14 bar max. pressure. 230V/50Hz/1Ph. 86-D2015/Y:

Laboratory air compressor, 10 bar max. pressure, 8 bar for continuous use. 50 liters capacity. 220 V, 60 Hz, 1 ph

28-WF2016/2: Water Trap for Air/Water assembly 86-D2019/Z: Air treatment unit comprehending: air dryer, particle filter 5M, oil filters 1M, coalescence filter 0.01M. 110V/60Hz/1Ph
