Apparatus for Distillation of Cut-Back Asphalt

Apparatus for Distillation of Cut-Back Asphalt

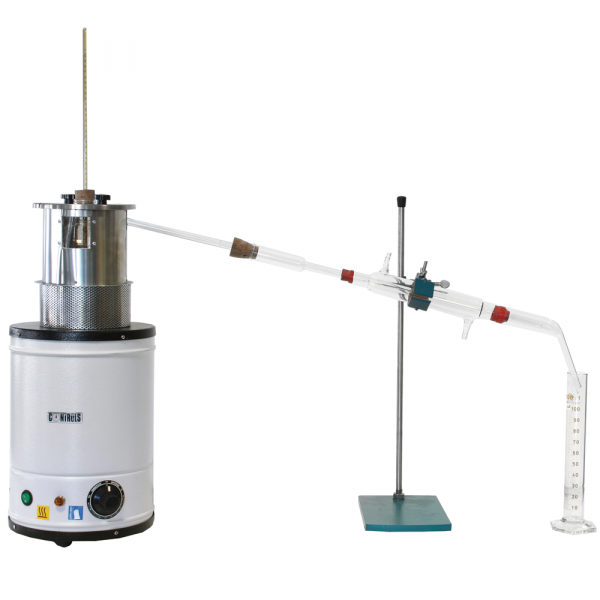

Description

This apparatus is used for the examination of cut-back asphaltic materials by the distillation test.
It consists of:

  • Distillation flask
  • Condenser
  • Adapter
  • Shield
  • Shield and flask support
  • Electric heater with thermoregulator
  • Cylinder receiver
  • Thermometer -2 +400°C

Weight approx.: 6 kg

Label/Normering

  ASTM D402‰AASHTO T78

Technische specificaties

Order nummers

81-B0150/E: Apparatus for distillation of cut-back asphalt 230V/50-60Hz/1ph 81-B0150/EZ: Apparatus for distillation of cut-back asphalt 110V/60Hz/1ph

Accessoires & toebehoren



81-B0150/1: Spare distillation flask 81-B0150/12: Crow receiver, 25 ml cap. 81-B0150/13: Crow receiver, 50 ml cap. 81-B0150/14: Crow receiver, 100 ml cap. 82-B0150/10MF: Low distillation thermometer IP 5C ASTM 7C, range -2 to +300°C, mercury free with alternative liquid: 82-B0150/11MF: High distillation thermometer IP 6C ASTM 8C, range-2 to +400°C, mercury free with alternative liquid
