Axial Displacement Transducers

Description

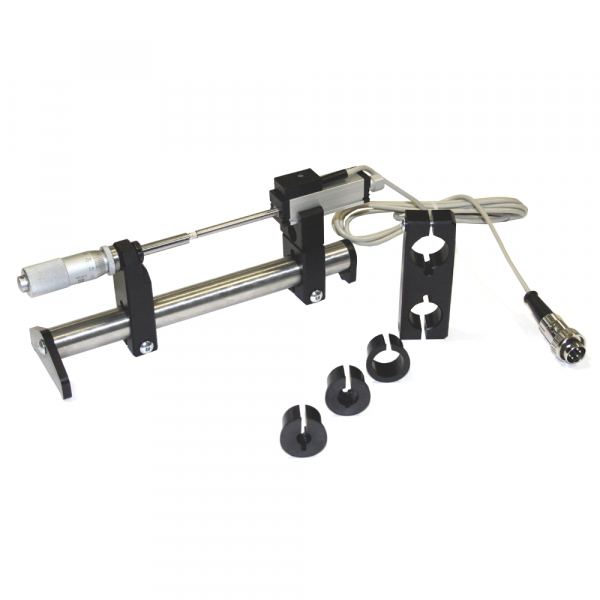

Potentiometric transducers
Linear potentiometric transducers are used with various testing machines and apparatus as, for example, Consolidation apparatus, Shear testing equipment and Triaxial testing equipment to fit triaxial cells.

LVDT transducers
Used in the Dynamic triaxial systems.

All the above transducers are supplied  with mounting block but have to be completed with the appropriate mounting bracket for connection to triaxial cells. See accessories.

Label/Normering

Technische specificaties

Technical Specifications

Potenziometric transducers

  • Input voltage: 10 V DC
  • Output: from 0 to 10 V DC
  • Repeatability: better than 0.002 mm
  • Accuracy: better than 0.002 mm
  • Connector: 6 pin

LVDT transducers

  • Input voltage: 10 V DC
  • Nominal sensitivity: 165 mV/mm
  • Resolution: infinite
  • Linearity: 0.50%
  • Connector: 6 pin

Order nummers

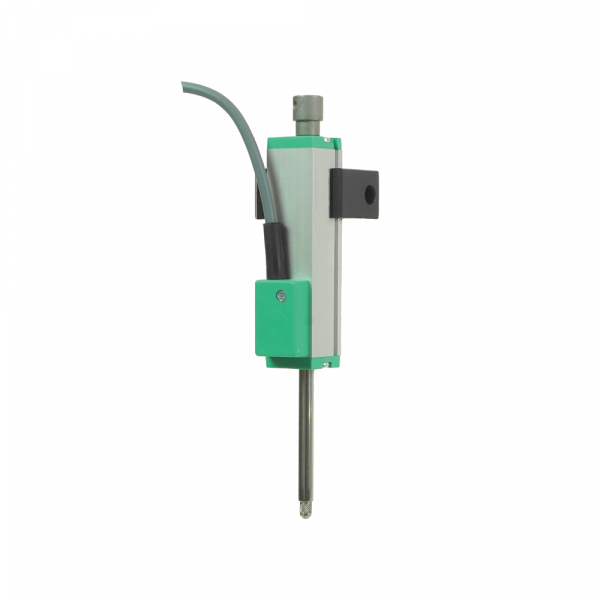

28-WF6310: De airing block suitable for banded triaxial cells 30-WF6207: Linear potentiometric transducer, 10mm travel, with 6 pin Lumberg connector complete with mounting block

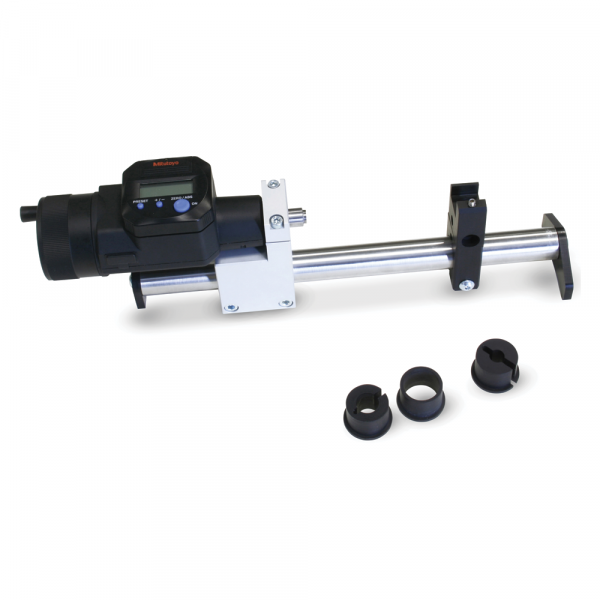

Accessoires & toebehoren



28-WF6220:

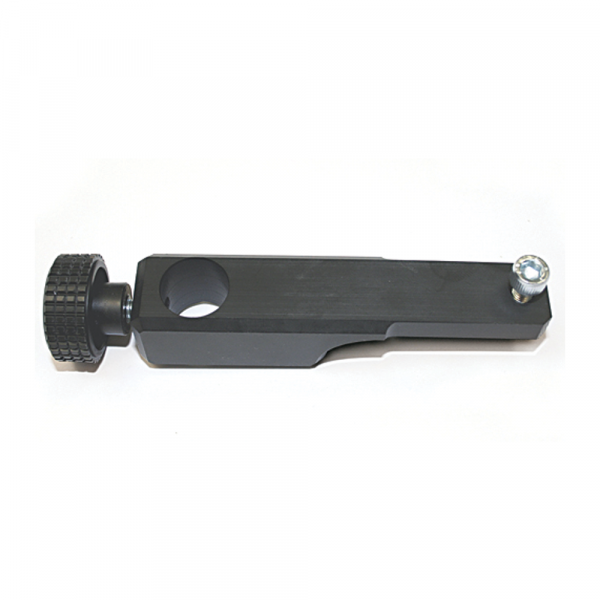

Mounting bracket for displacement transducer, to fit 15.5mm triaxial cell ram for (28-WF4050 and 28-WF0410/B)

28-WF6221:

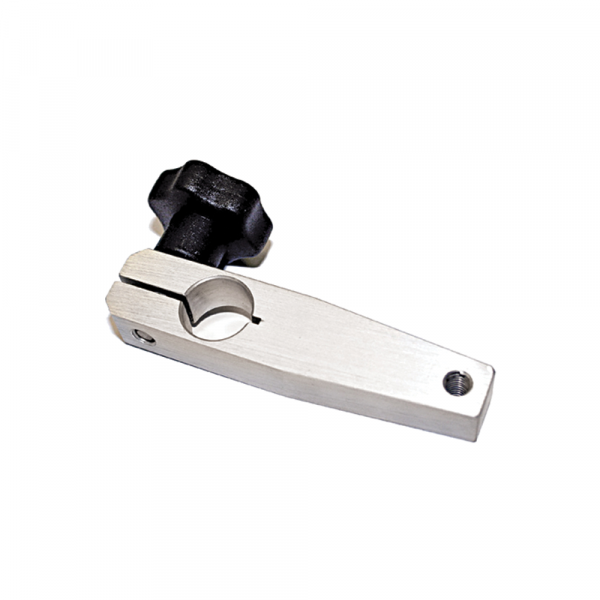

Mounting bracket for displacement transducer, to fit 25mm triaxial cell ram for 28-WF4070,28-WF4100, 28-WF4150; 28-WF0411/B and 28-WF0416/B)

: 30-WF6208: Linear potentiometric transducer, 25mm travel, with 6 pin Lumberg connector complete with mounting block 30-WF6209: Linear potentiometric transducer, 50mm travel, with 6 pin Lumberg connector complete with mounting block 31-WF7121: Axial displacement transducer +/-25mm to be used with Dynatriax (Dynamic Triaxial system)
