Description

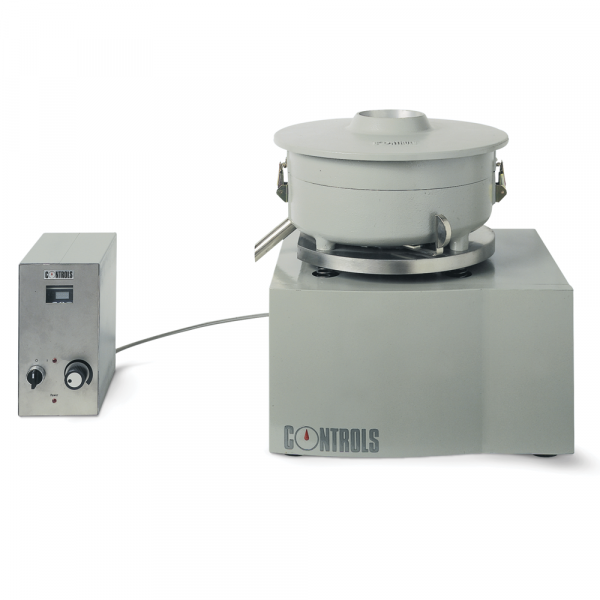

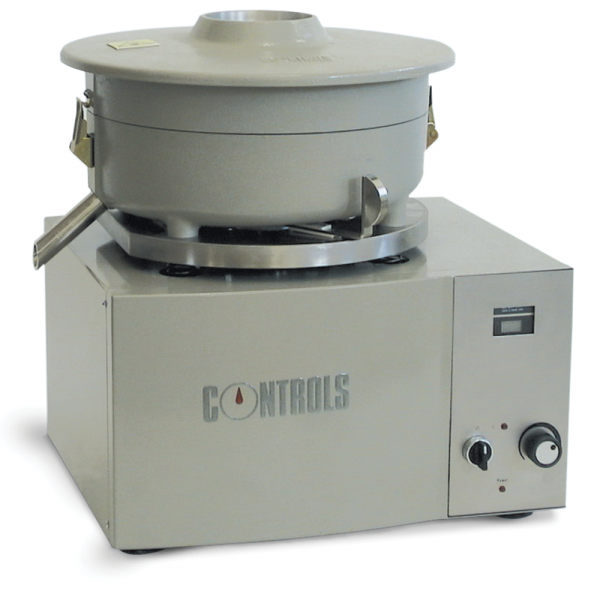

The centrifuges are used for the determination of bitumen percentage in bituminous mixtures. All models comprise a removable precision-machined rotor bowl housed in a cylindrical aluminium box. They are driven by an electric motor fit with AC drive (inverter) with the double function of speed control up to 3600 r.p.m. regardless of the frequency (50 or 60 Hz) and electrical braking. The centrifuge can be set for the automatic speed ramp up to 3600 r.p.m. or to any intermediate speed by the front knob. A digital display monitors the frequency, which is proportional to the speed.
The rotating unit is suspended on the base by four calibrated springs, which assure a perfect stability all over the test. The cover is precisely machined and fit with solvent resistant gasket to avoid leakages.
All models are fit, for emergency use, by a hand brake system. The control panel includes: Start/Stop button, speed control knob, and digital display.
Two capacities and two versions available:

• Standard 1500 and 3000 g cap. (75-B2212,75-2214; 75-B2312,75-2314)
• Explosion proof 1500 and 3000 g cap. (75-B2222; 75-B2322)

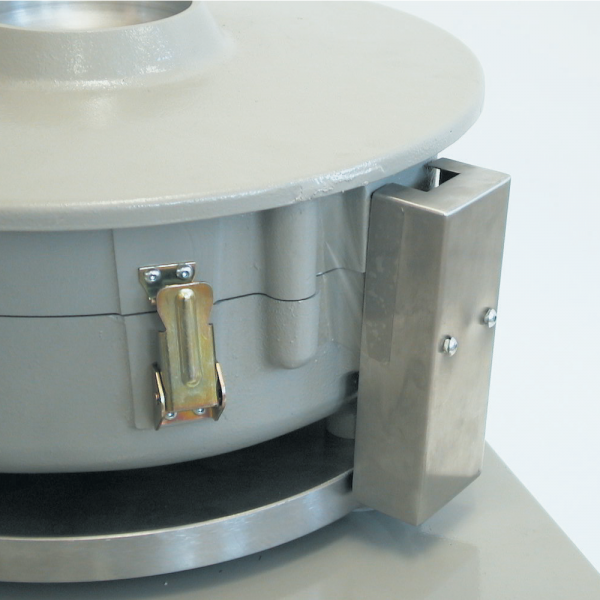

The standard models can be upgraded with an electromagnetic system to prevent the opening of the cover during rotation. This option (see code 75-B2210/UP1) is applicable on standard models only and has to be factory installed.

All centrifuges are supplied complete with 100 filter discs.

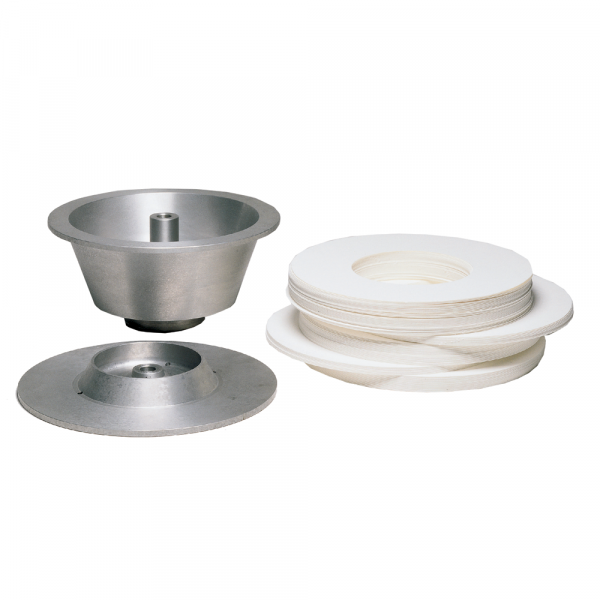

All centrifuges can fit different capacity spare bowls (75-B0022/2 and 75-B0023/2)

• Speed control up to 3600 r.p.m. at 50 or 60 Hz by AC drive (inverter)
• Electric brake
• Stable and silent throughout the test
• Electronic control and digital display
• CE version available with electromagnetic arrangement to prevent the opening of cover during rotation
• Explosion proof option
• Supplied complete with 100 filter discs
