Compression Devices for Cement and Mortars

Description

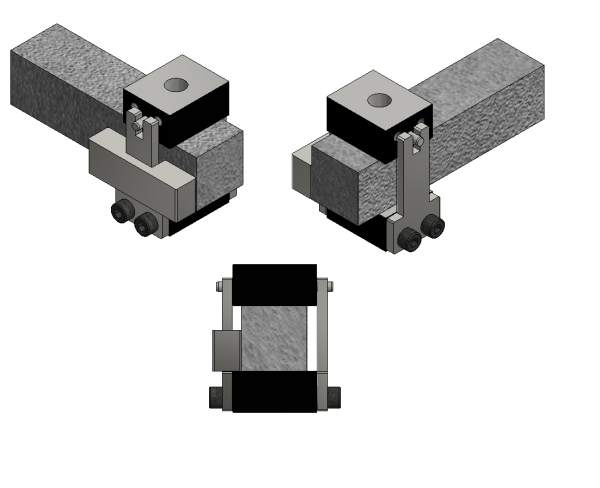

Robust frame fitted with an upper platen with spherical seat that moves vertically sustained by a spring. The apparatus can be placed and centered directly on the lower machine platen. The 50-C9030 and 50-C9032/H, conforming to EN 196 are designed to test portions of 40x40x160 prisms broken in flexure, while the 50-C9032, conforming to ASTM C109, fitted with compression platens 75 mm dia., and a vertical daylight of 53 mm is used to test 50mm/2” cubes and other little samples as, for example, microcores. The model 50-C9031 is similar to C9030 but with compression platens 40 x 62.5 mm instead of 40 x 40 mm.

The total height of both 50-C9030, 50-C9031 and 50-C9032 apparatus is 195 mm while it's 225mm for model 50-C9030/H and 50-C9032/H.
Vertical clearance of the compression machine has to be adjusted using suitable distance pieces accordingly. See accessories
Weight approx.: 8 kg

Label/Normering

  ASTM C109‰ASTM C349‰EN 196

Technische specificaties

Order nummers

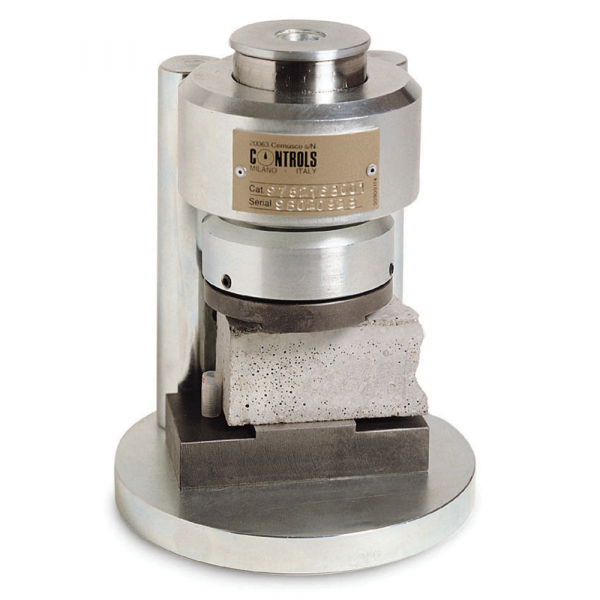

50-C9030:

Compression device to test portions of 40 x 40 x 160 mm mortar prism broken in flexure to EN 196-1. Total height 195mm.

50-C9030/H:

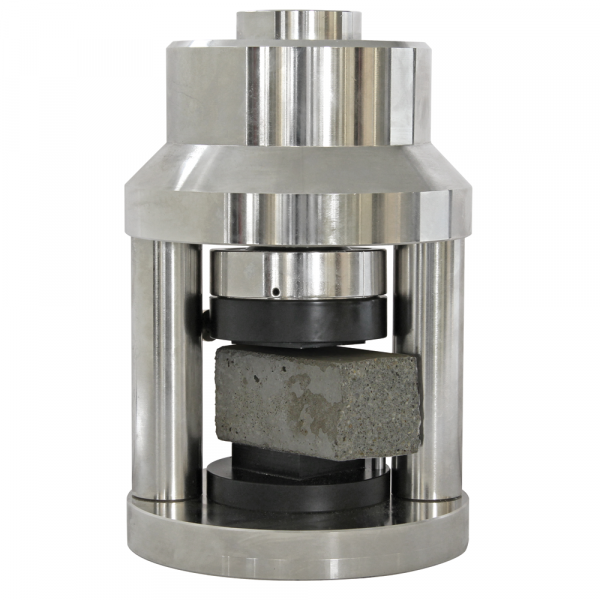

Compression device to test portions of 40 x 40 x 160 mm mortar prism broken in flexure to EN 196-1. High stiffness model with 3-columns frame. Total height 225 mm

Accessoires & toebehoren



: 50-C9030/HC:

Compression device to test portions of 40 x 40 x 160 mm mortar prism broken in flexure to EN 196-1. High stiffness model with 3-columns frame. Supplied complete with traceable certificate of hardness. Total height 225 mm

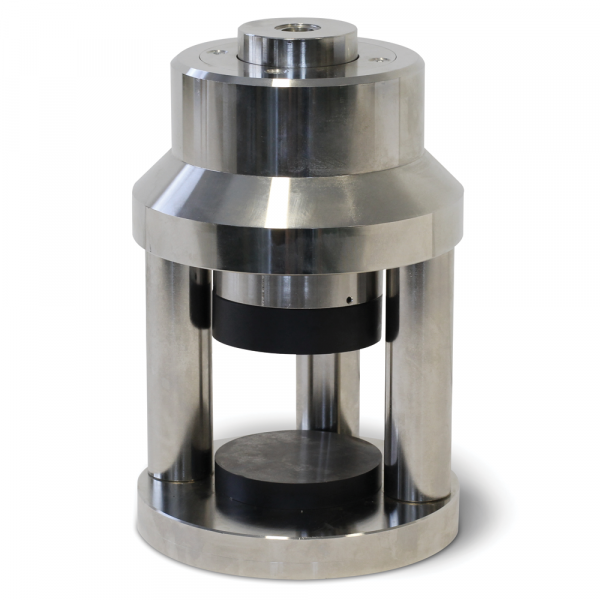

50-C9032/H:

Compression device to test 50 mm (2") mortar cubes. High stiffness model with 3-columns frame. Total height 225 mm

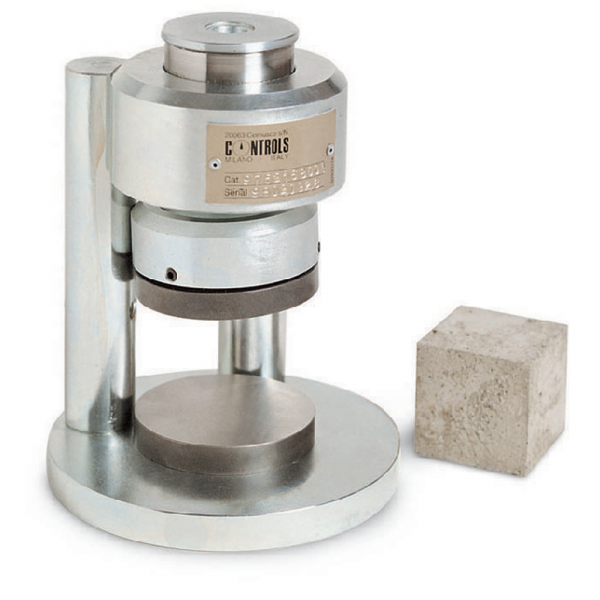

50-C9032:

Compression device to test 50 mm (2") mortar cubes. Total height 195mm

50-C9030/C:

Compression device to test portions of 40x40x160 prisms broken in flexure to EN 196-1.
Total height 195mm. Supplied complete with hardness certificate.

: 50-C9032/C:

Compression device to test 50 mm and 2” mortar cubes to ASTM C109
Total height 195 mm. Supplied complete with hardness certificate.

: 50-C9032/HC:

Compression device to test 50 mm (2") mortar cubes. High stiffness model with 3-columns frame.
Supplied complete with traceable certificate of hardness. Total height 225 mm


50-C9030/A:

Compression device to test portions of 40x40x160mm mortar prism previously broken in flexure to ASTM C349. Compression platens 40x50.8 mm.



50-C9031:

Compression device to test portions of 40x40x160 mm mortar prisms broken in flexure. Compression platens 40x62.5 mm.
