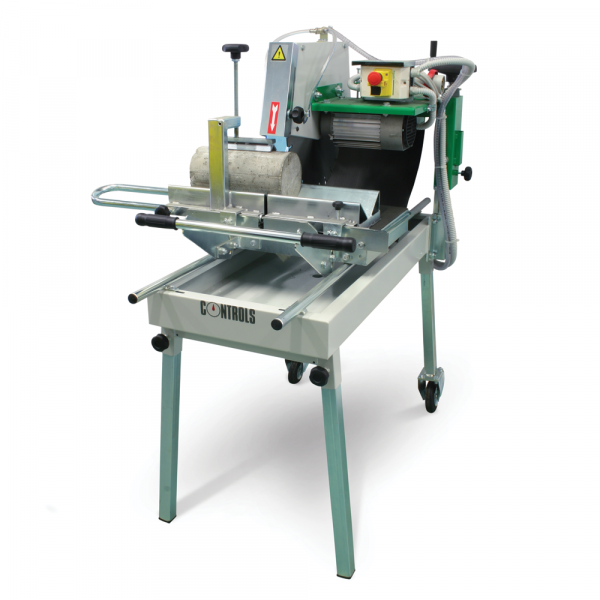

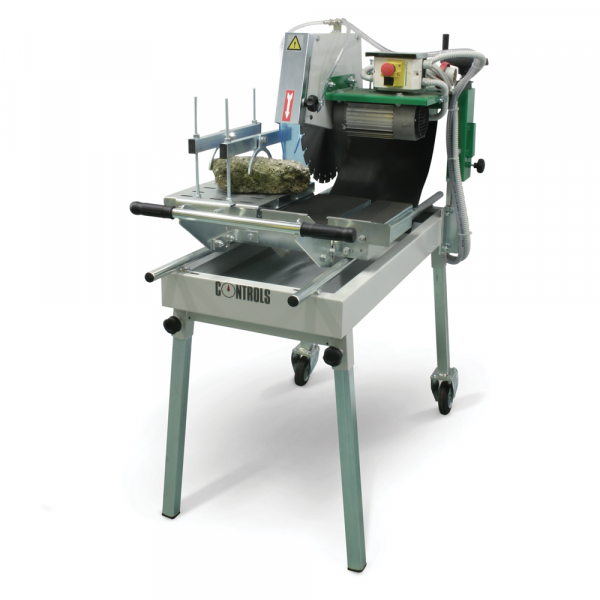

Concrete, Asphalt, Rock and Masony Saw

Description

This universal saw, completed with the suitable accessory, can be used to cut concrete, asphalt and rock cores, and irregular rock samples in order to obtain geometrically defined samples. It can be fit with 300 to 450 mm dia. blades.
The head is adjustable in height. The tilting motor head permit cuts up to 45° inclination. The tank and the trolley are zinc plated to avoid corrosion. Complete with water pump for cooling the blade and double filtering system.
Cutting blade, and accessories to cut cores, asphalt, rock and other buiding materials, not included. See accessories.

Label/Normering

Technische specificaties

Technical Specifications

  • Max. cutting height: 115 mm with 350 mm dia. blade and 165 mm with 450 mm dia. blade
  • Max. blade diameter: 450 mm
  • Power:  3 kW
  • Overall dimensions (lxdxh): 1300x700x700 mm
  • Weight approx.: 92 kg

Order nummers

55-C0210/D: Concrete, rock and masonry saw. 380V/50-60Hz/3ph 55-C0210/DZ: Concrete, rock and masonry saw. 220V/60Hz/3ph

Accessoires & toebehoren



32-C0210/6: Locking clamp device for irregular pieces 32-C0211/4: Diamond blade 350 mm dia for hard rock 32-C0211/5: Diamond blade 450 mm dia for hard rock 55-C0210/2: Diamond blade with sectors, dia. 450 mm suitable for asphalt specimens 55-C0210/5: V-shaped support for cylinders and cores up to 160 mm dia: 55-C0211/1: Diamond blade 350 mm dia
