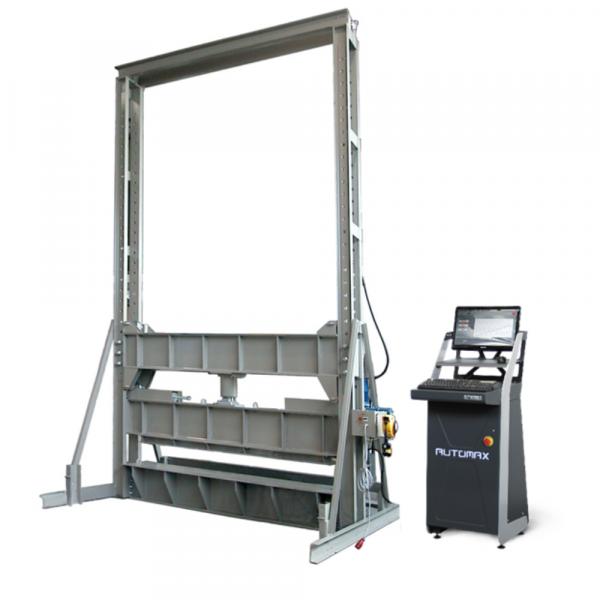

Concrete pipe testing machines, 750 kN capacity

Description

Designed to test concrete sewer and drain pipes used in drainage works, water supply systems, irrigation systems etc.

The machine is available in two versions:

50-C960x/M conforming to ASTM C497
50-C961x/M  conforming to EN 1916

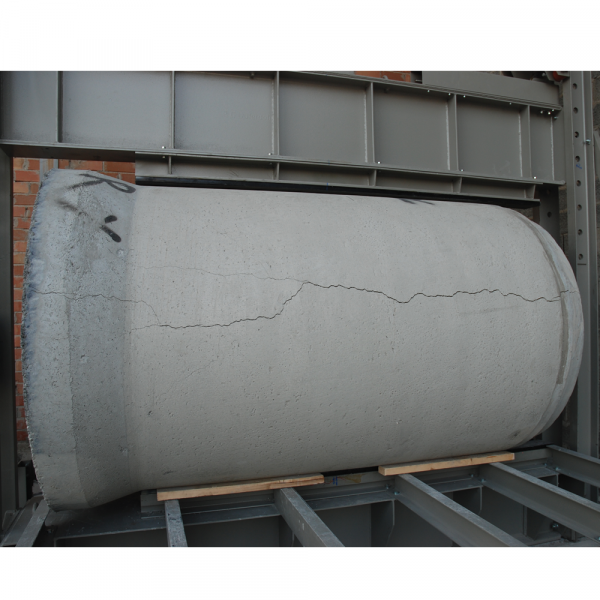

This EN version is suitable for testing round shaped pipes, cylindrical barrel shape over the full length without sockets conforming to EN 1916 Annex C, fig. C.2a. Compression tests can also be performed on cylindrical pipes with sockets, provided that you specify, at time of request, the shape and dimensions of above sockets to verify the compatibility with the loading bearers.

The difference between the two models concerns, mainly, the lower supports and the upper bearing beam. The machines do not include the elastomeric bearing strips or similar which have to be provided on site.

FRAME
The frame is made of structural steel and is bolted together with high strength bolts so it can be easily assembled and disassembled either for delivery or for movement from one site to another.
The two upper crossbeams are raised and lowered by a motor operated winch. The upper crossbeam
is then locked in position by locking pins inserted through the columns.

HYDRAULIC RAM ASSEMBLY
Consists of an alloy steel cylinder, of a piston tempered and ground, and hydraulic hoses and spherical seat.

CONTROL UNIT
Automax Multitest control console suitable to keep the load constant as required by the Standard
Acquisition of both load and displacement readings
Full PC control
  • Upper crossbeams are raised and lowered by a motor operated winch to adjust the vertical daylight
  • 2 models wih different support and loading elements according to EN or ASTM specifications
  • Full PC control

Label/Normering

Technische specificaties

Technical Specifications


Max. load: 750 kN
Max vertical daylight: 3900 mm
Distance between columns: 3250 mm
Max. pipe dimensions: dia. 3700x2900 mm long
Frame dimensions: 6460 x 4150 x 3000 mm (hxlxd)
Power rating: 1300 W
Net weight approx.: 4300 kg
Shipping weight approx.: 5200 kg
Shipping cubage approx.. 11 m3

Important note:
The machine is delivered disassembled and have to be mounted on site following the instructions.

Order nummers

50-C9602/M:

Pipe testing machine model 750 kN capacity. For compression tests according to ASTM C497. 380 V / 50 Hz / 3 Ph for winch 230V / 50-60 Hz / 1 Ph for control console.

50-C9603/M:

Pipe testing machine model 750 kN capacity. For compression tests according to ASTM C497, 220 V / 60 Hz / 3 Ph for winch 220V / 50-60Hz / 1Ph for control console

Accessoires & toebehoren



: 50-C9604/M:

Pipe testing machine model 750 kN capacity. For compression tests according to ASTM C497, 220 V / 60 Hz / 3 Ph for winch 110V / 60 Hz / 1 Ph for control console

50-C9612/M:

Pipe testing machine model 750 kN capacity. Conforming and EN 1916:2002 - Annex C.4.2 without option for Annex K.  380 V / 50 Hz / 3 Ph for winch 230 V / 50-60 Hz / 1 Ph for control console

50-C9613/M:

Pipe testing machine model 750 kN capacity. Conforming and EN 1916:2002 - Annex C.4.2 without option for Annex K. 220 V / 60 Hz / 3 Ph for winch 220 V / 50-60 Hz / 1 Ph for control console

50-C9614/M:

Pipe testing machine model 750 kN capacity. Conforming and EN 1916:2002 - Annex C.4.2 without option for Annex K.  380 V / 60 Hz / 3 Ph for winch 110 V / 60 Hz / 1 Ph for control console
