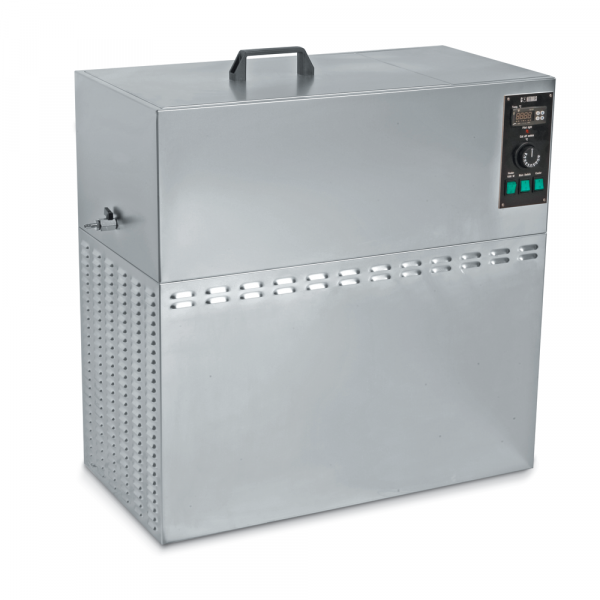

Curing Bath with Cooler Unit

Curing Bath with Cooler Unit

Description

This multi-purpose unit, is used to cure in water cement specimens 40x40x160 mm, but can also be used for storing the hydrated samples at a temperature of 20°C (EN 196-8). Internal surfaces are polished stainless steel with a sheet steel insulated outer case. The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity.

  • Automatically maintains the set temperature
  • Two channels electronic thermoregulator: heating/cooling with digital display
  • Complete with re-circulating unit
  • Incorporating refrigeration compressor
  • A multi-purpose unit usable for many other applications

Label/Normering

  EN 12697-23‰EN 196-1‰EN 196-8

Technische specificaties

Technical Specifications

  • Capacity: 40 l and 70 cement specimens 40x40x160 mm
  • Power: 2000 W
  • Temperature range: +5 to +60°C
  • Accuracy: ± 1%
  • Inside dimensions: 550x360x200 mm
  • Outside dimensions: 830x480x950 mm
  • Weight approx.: 62 kg

Order nummers

65-D1409/A:

Water bath with 2 channels thermoregulator (heating/cooling), submersed recirculating pump and cooler unit. 230V/50-60Hz/1ph.

65-D1409/AZ: Water bath with 2 channels thermoregulator (heating/cooling), submersed recirculating pump and cooler unit. 110V/60Hz/1ph.
