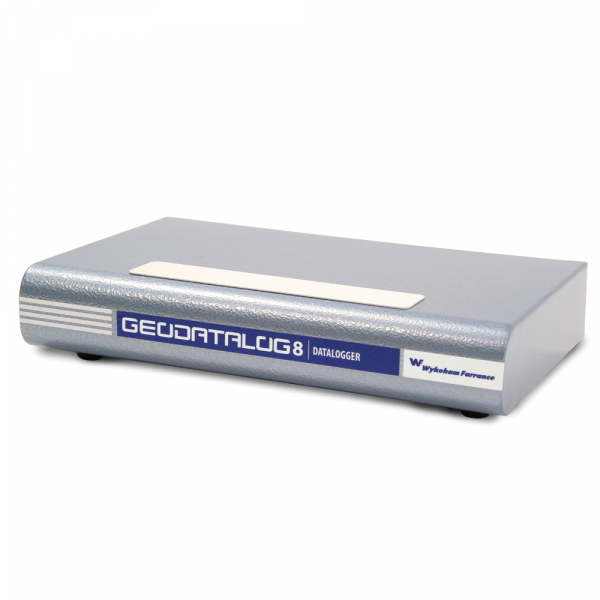

Data Acquisition Unit, GEODATALOG 8

  • Up to 8 independent input channels.

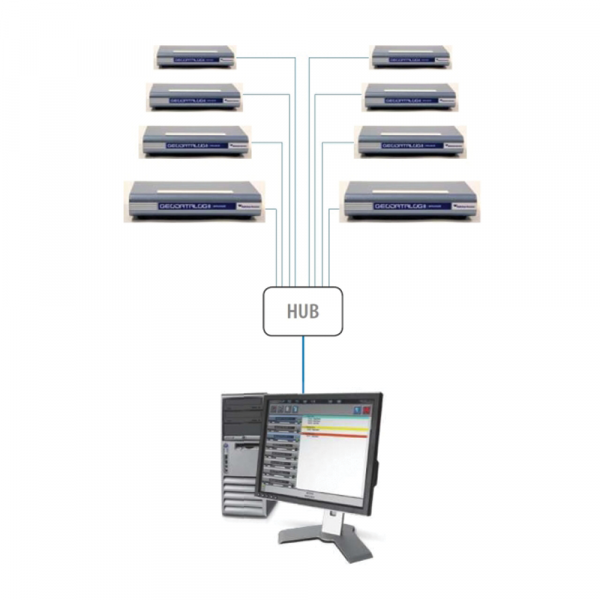

  • Network configuration of up to 64 independent channels.
  • LAN / Ethernet connection to PC via dedicated software (included).
  • Compatible with load cells, pressure transducers, strain gauges, LDT/LVDT/potentiometric displacement transducers.
  • Effective resolution: 131,000  points.
  • Sampling rate up to 500 readings per second per channel.

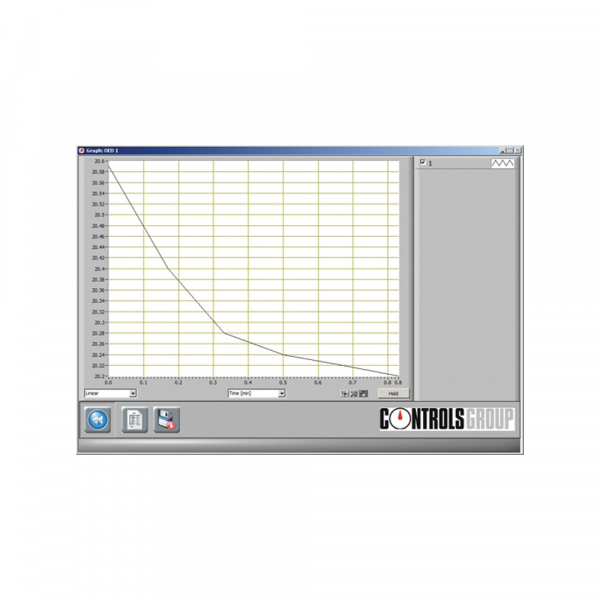

  • Numerical and graphical display of readings via PC software.

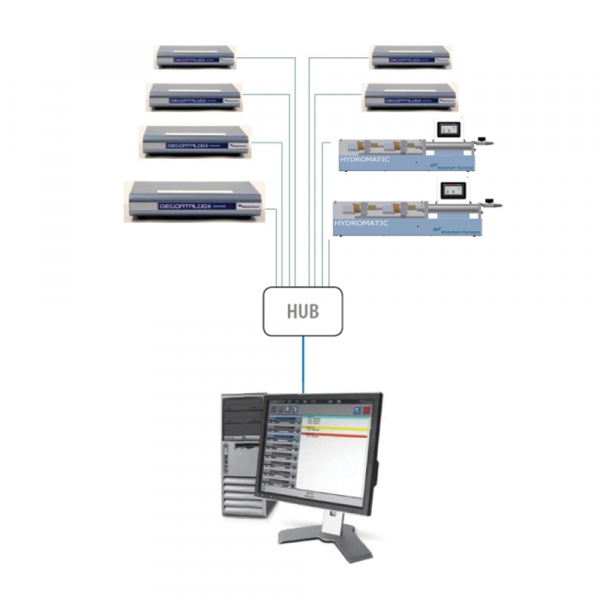

  • Possibility to synchronize pressure and volume data coming from HYDROMATIC with data from the other transducers connected
  • The transducers can be grouped and combined  by the user for matching different applications.
  • It is possible to perform various tests (e.g. shear, consolidation, triaxial, … ) in parallel, each one having independent clock, channels and logging mode

Label/Normering

Technische specificaties

Technical Specifications

  • Requires connected PC
  • Number of channels: 8
  • Network mode: Up to 8 units
  • Sampling rate: Up to 500  readings/second per channels
  • Real resolution:131,000 points
  • Communication port: LAN / Ethernet
  • Excitation (VEXC): from 1 V to 10 V for each couple of channels (up to 4)
  • Datalogger input: 0-10 V; 0-20 mA
  • Software:   DATACOMM 2 (included)
  • Dimensions  approx lxdxh [mm]:290x195x61
  • Weight approx [kg]: 1.6 kg
  • Power supply: 110-220V,50-60 Hz, 1ph

Order nummers

30-WF6008:

GEODATALOG 8, 8 channels multipurpose data logger with dedicated software DATACOMM 2.

:

Accessoires & toebehoren



82-P9008/ELT: Set of four cables for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 (82-P9008) and GEODATALOG 8 ( 30-WF6008) 30-WF6042: Transducer extension cable, 6 m length 30-WF6044: Transducer extension cable, 12 m length 30-WF6016/T10: Total stress(UU)triaxial testing Geo-Analysis template conforming to ASTM 2850 30-WF6016/T11: Effective stress (CU-CD) triaxial testing Geo-Analysis template conforming to ASTM D4767: 30-WF6016/T12: Hydraulic Consolidation Geo-Analysis for MS-EXCEL Template according to BS 1377:6 30-WF6016/T13: Hydrocon SWCC Geo-Analysis for MS-EXCEL Template 30-WF6016/T14: Permeability Geo-Analysis template. MS Excel application for importing test data, calculating and plotting results and producing test report in accordance with BS1377: 6 30-WF6016/T15: Unconfined Geo-Analysis template according to ASTM D2166 30-WF6016/T17: CBR Geo-Analysis for MS EXCEL Template according to ASTM D1883 30-WF6016/T4: Effective Stress (CU,CD) Triaxial testing Geo-Analysis for MS EXCEL Template according to BS 1377:8 30-WF6016/T5: Total Stress (UU) Triaxial testing Geo-Analysis for MS EXCEL Template according to BS 1377:7 30-WF6016/T6: CRS type Consolidation Geo-Analysis for MS EXCEL Template according to ASTM D4186 30-WF6016/T7: CBR Geo-Analysis for MS EXCEL Template according to BS 1377:4 82-P9008/ELT1: Cable for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 (82-P9008) and GEODATALOG 8 ( 30-WF6008) 30-WF6016/T2: Direct and residual Shear Geo-Analysis for MS EXCEL Template according to BS 1377:7 30-WF6016/T9: Direct and residual shear Geo-Analysis template conforming to ASTM D3080 30-WF6016/T1: Consolidation Geo-Analysis for MS EXCEL Template according to BS 1377:5 30-WF6016/T8:

Consolidation Geo-Analysis template conforming to ASTMD2435

30-WF6016/T8A: Consolidation Geo-Analysis template conforming to ASTM D4546 30-WF6016/T16: Ring Shear Geo-Analysis MS EXCEL template conforming to ASTM D6467 30-WF6016/T3: Ring Shear Geo-Analysis for MS EXCEL Template according to BS 1377:7
